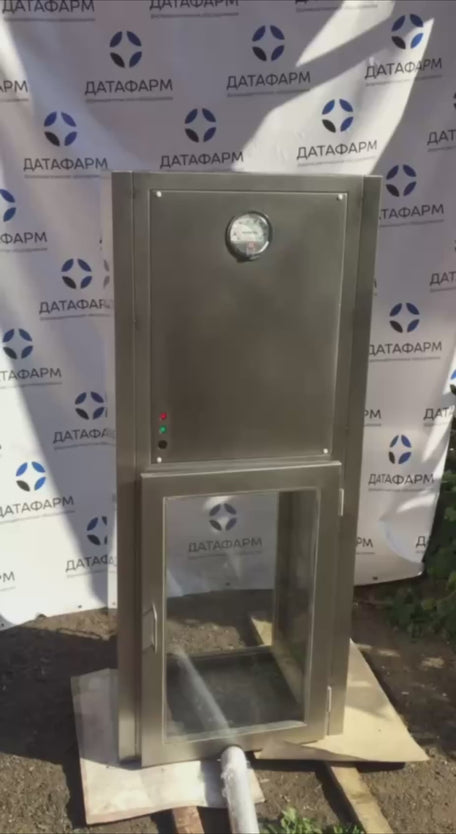

Active GMP Material Transfer Pass Box
DATAPHARM active pass box systems are used in sterile manufacturing areas, packaging lines, raw material preparation zones, and laboratory control areas where controlled transfer of materials between rooms with different cleanliness levels is required.
A directed HEPA-filtered airflow is generated inside the working chamber, preventing particles and contaminants from entering critical production zones.
👌 The design provides:
- stable airflow conditions
- controlled air exchange
- reduced contamination transfer risk
- maintenance of cleanroom pressure cascade
- safe material transfer between rooms
⚙️ Design and Features

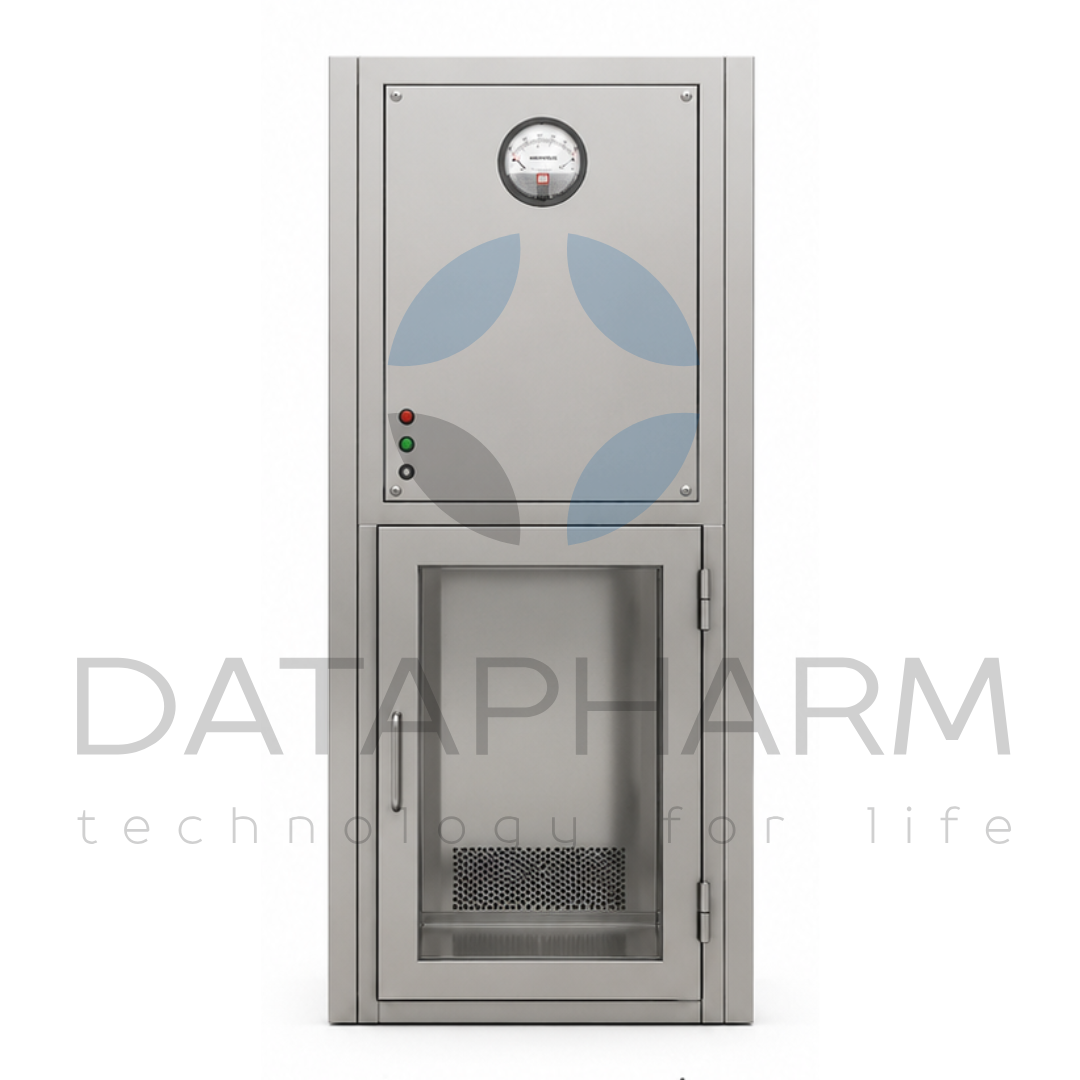

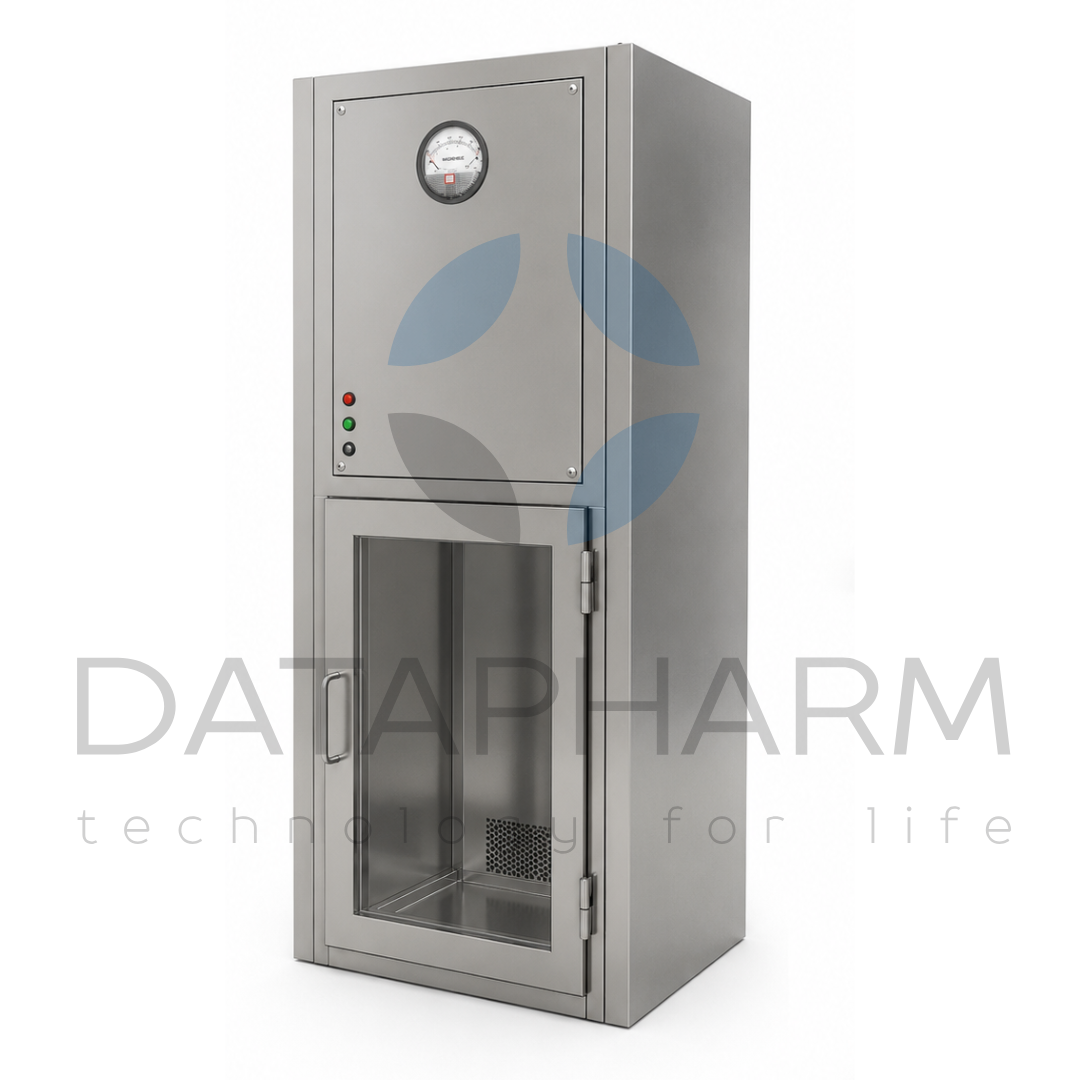

The pass box housing is made of AISI 304 stainless steel with smooth internal surfaces adapted for regular sanitary cleaning.
The construction includes:
- high chamber tightness
- minimal contamination accumulation zones
- easy internal surface cleaning
- resistance to disinfectants
- long-term operation in GMP environments
The system is equipped with:
- HEPA H14 filter
- active air circulation system
- MAGNEHELIC differential pressure gauge
- door interlock system
- LED status indication
- doors with inspection glass
- airflow control system
✔️ Interlock System and Safety
The electronic interlock system prevents simultaneous opening of doors from both sides of the pass box, eliminating uncontrolled air exchange between rooms.
👉 The control system provides:
- operating mode monitoring
- visual status indication
- safe operation
- differential pressure monitoring
📐 Technical Specifications:
- Equipment type: active pass box
- Filtration class: HEPA H14
- Filtration efficiency: 99.995%
- Housing material: AISI 304 stainless steel
- Door type: hinged doors with inspection glass
- Locking system: interlock
- Pressure monitoring: MAGNEHELIC
- Installation type: floor-standing or built-in
- Surface finish: GMP-ready
- Configuration: customized for each project
✅ Advantages:
- reduced cross-contamination risk
- GMP-compliant design
- stable airflow system operation
- efficient HEPA filtration
- cleanroom-ready construction
- high chamber tightness
- integration into pharmaceutical production lines
- project-specific customization
- easy sanitary maintenance
- possibility of custom automation
DATAPHARM manufactures active GMP material transfer pass boxes in accordance with cleanroom engineering, contamination control, and industrial automation requirements. Equipment configuration is customized according to facility architecture, cleanroom parameters, and process requirements.
