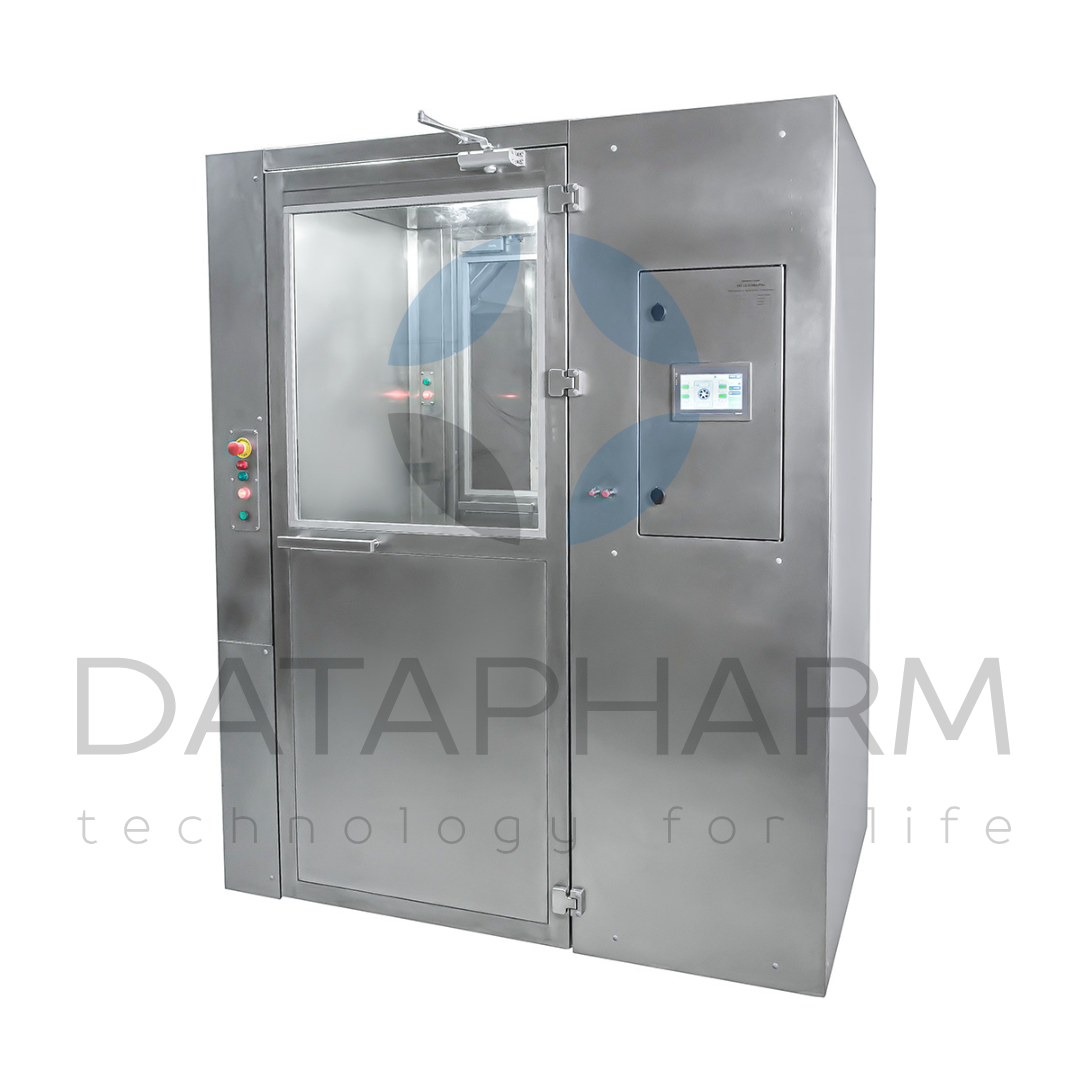

Personnel Air Shower for GMP Cleanrooms
The air shower is used in pharmaceutical, biotechnology, and sterile manufacturing facilities for contamination control during personnel transfer between zones with different cleanliness requirements.
The system generates an intensive horizontal airflow with high-velocity air jets, providing efficient removal of dust and particles from cleanroom garments before entering controlled environments.
Air passes through a two-stage filtration system consisting of F7 and HEPA H14 filters, after which it is distributed through nozzles inside the working chamber. This configuration creates a controlled decontamination zone without disturbing the cleanroom air balance.

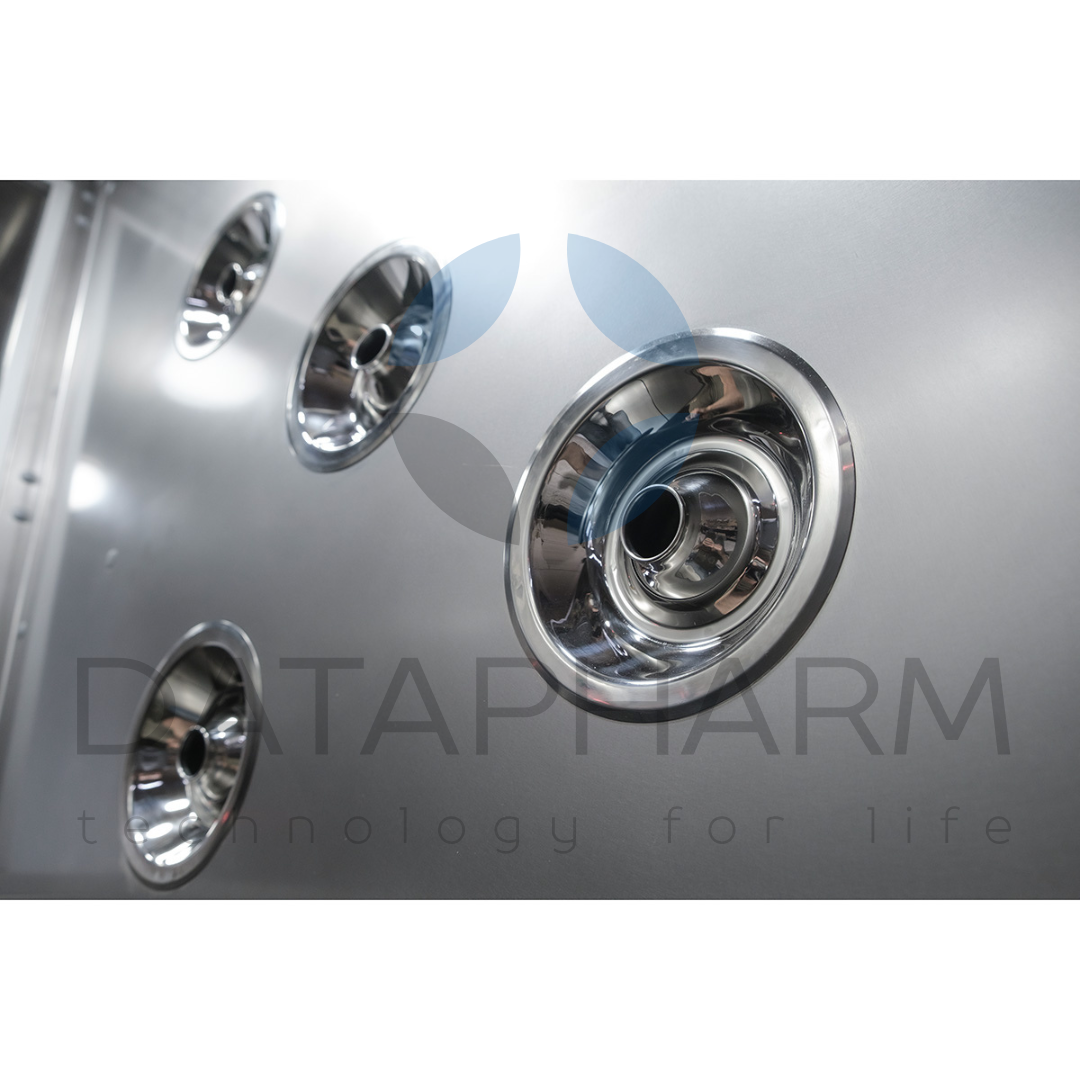

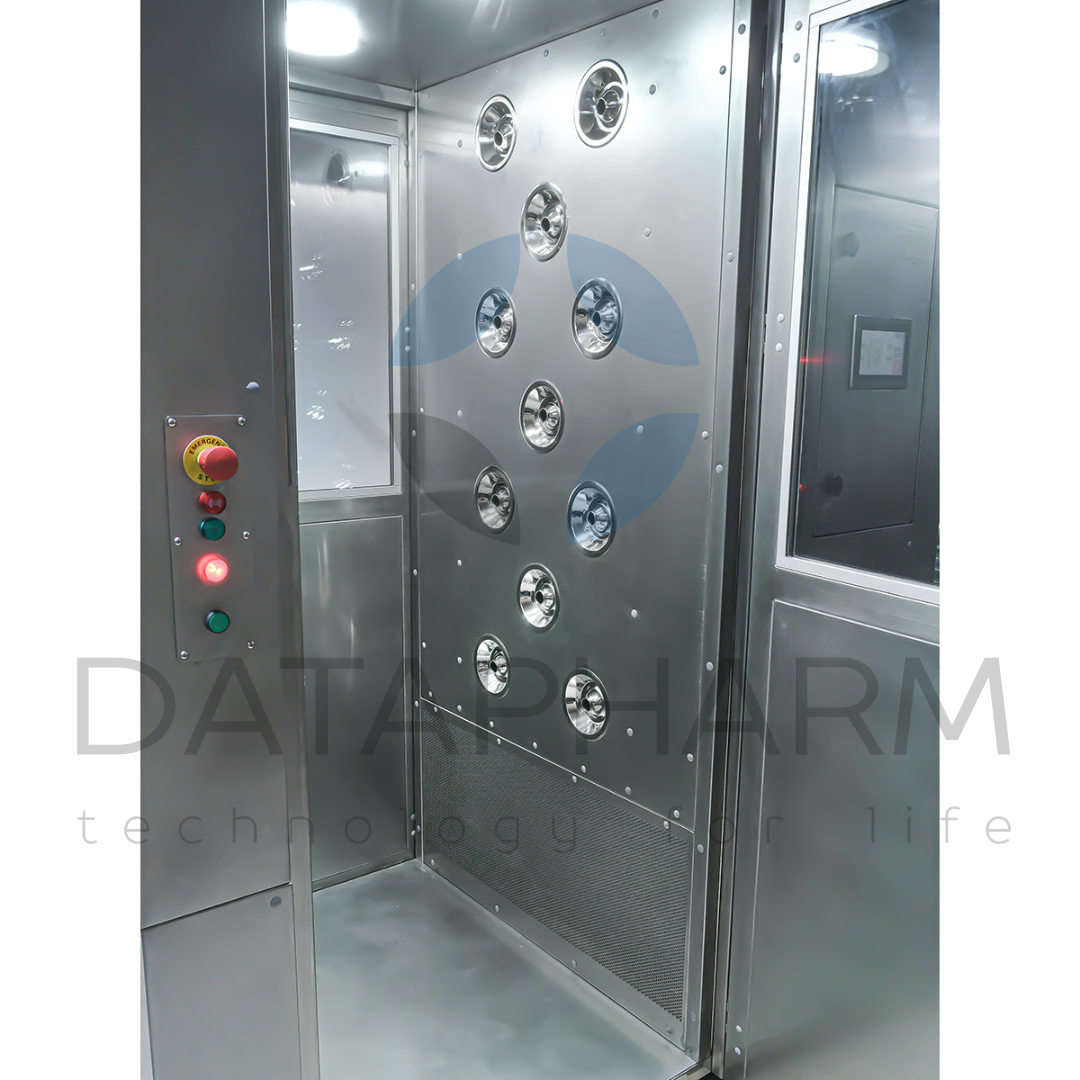

Air distribution is performed through 12 nozzles installed inside the chamber. This configuration ensures uniform personnel cleaning throughout the entire operator standing area.
📐 Equipment Design
The housing is manufactured from AISI 304 stainless steel and is designed for operation under regular sanitary cleaning procedures.
👌 Design features include:
- reinforced supporting frame
- smooth internal surfaces
- resistance to disinfectants
- minimized hard-to-clean areas
- high mechanical strength
The system includes:
- Ebmpapst fan
- HEPA H14 filter
- F7 pre-filter
- control system with status indication
- electromagnetic door locks
- pressure monitoring pressostat

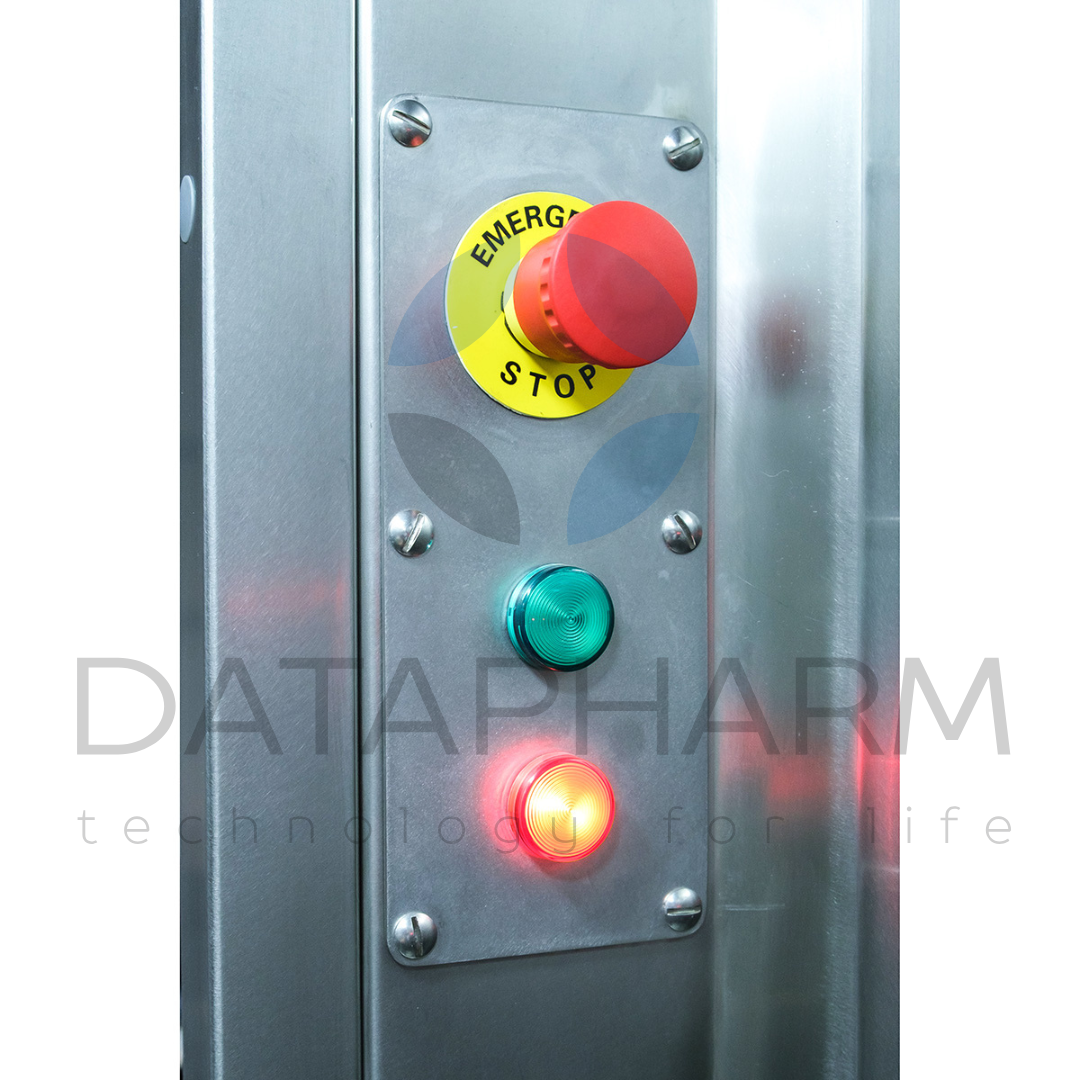

- emergency stop button
- tempered glass doors
✔️ Access Control and Safety
The air shower is equipped with an automatic door interlock system preventing simultaneous opening from both sides. This maintains stable airflow conditions and prevents uncontrolled air exchange between rooms.

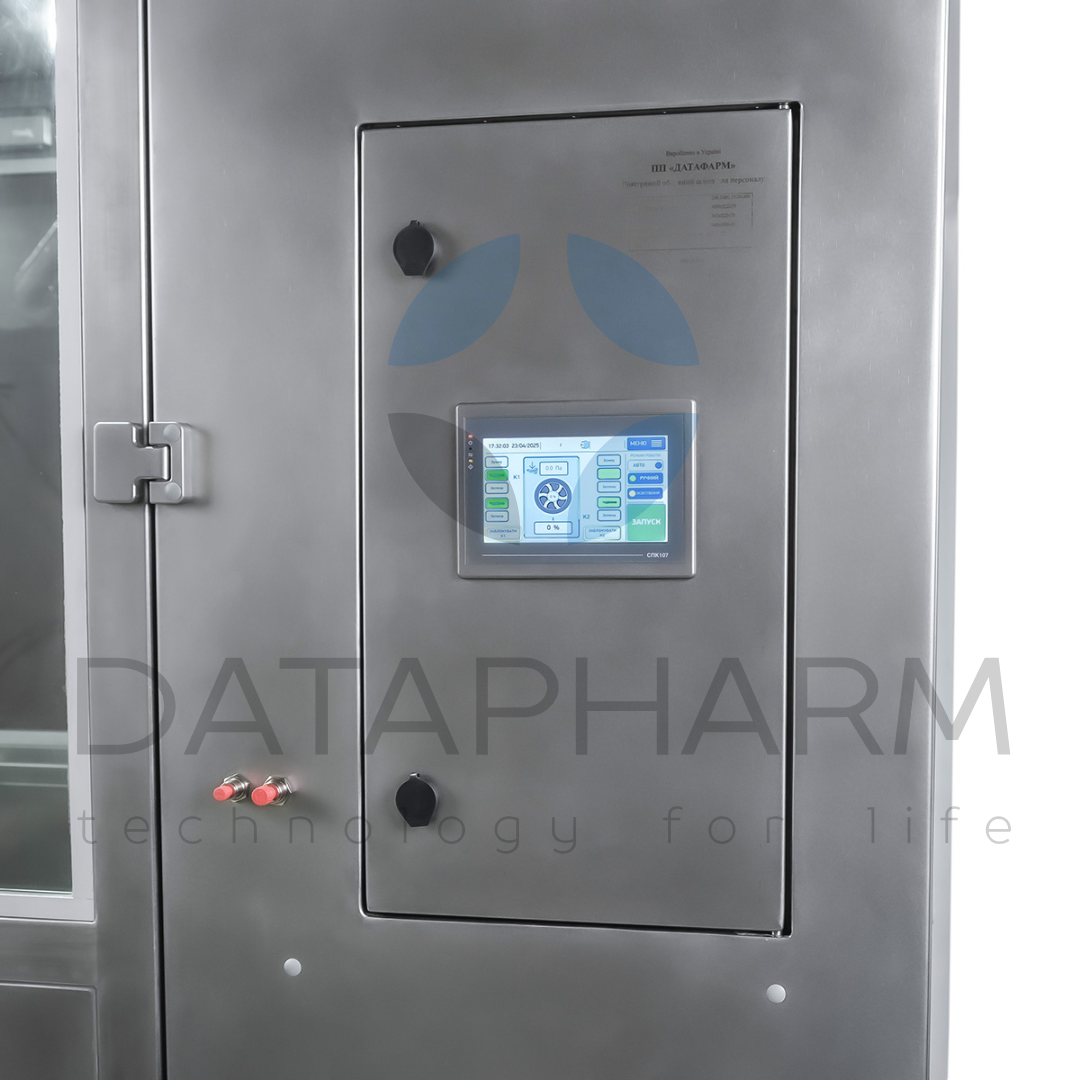

📌 The control system provides:
- operating mode monitoring
- LED status indication
- safe cleaning cycle activation
- internal pressure monitoring
🔧 Technical Specifications:
- Airflow type: horizontal
- Air velocity: 22 m/s ±20%
- Filtration system: F7 + HEPA H14
- Filtration efficiency: 99.995%
- Fan: Ebmpapst
- Power consumption: 3.6 kW
- Power supply: 380 V / 50 Hz
- Glass: tempered, 5 mm
- Dimensions: 1335 × 1790 × 2200 mm
- Weight: 300 kg
- Number of nozzles: 12
- Housing material: AISI 304
- Installation type: mounted on support frame
✅ Advantages:
- reduction of contamination carried by personnel
- uniform air cleaning coverage
- high cleaning system performance
- compatibility with GMP infrastructure
- resistance to intensive operation
- reliable interlock system
- efficient air filtration
- project-specific customization capability
DATAPHARM manufactures cleanroom air showers in accordance with GMP requirements, contamination control standards, and industrial automation principles. Equipment configuration is adapted individually to facility architecture and process requirements.
