Design & Features:
High-precision casting body
Free of maintenance, compact and portable
Small operating torque
Gasket complies with PTFE FDA 177.2600
Hand lever can be mounted on either side of the valve body regardless of flow direction
Easy cleaning, easy maintenance, lightweight design
Technical Specifications:
Working pressure: 10 bar
Temperature range: -60°C to +180°C
Valve types: one-way, three-piece, three-way (L-type, T-type, direct)
Working modes: manual, pneumatic, electric
Gasket materials: PTFE, EPDM
Connection ends: welded, tri-clamp, union, flange, male/female thread
Standards: DIN, SMS, ISO, 3A, IDF
Material in contact with media: AISI 304 / AISI 316L
Other parts: AISI 304
Internal surface finish: Ra 0.4
External surface finish: Ra 0.6

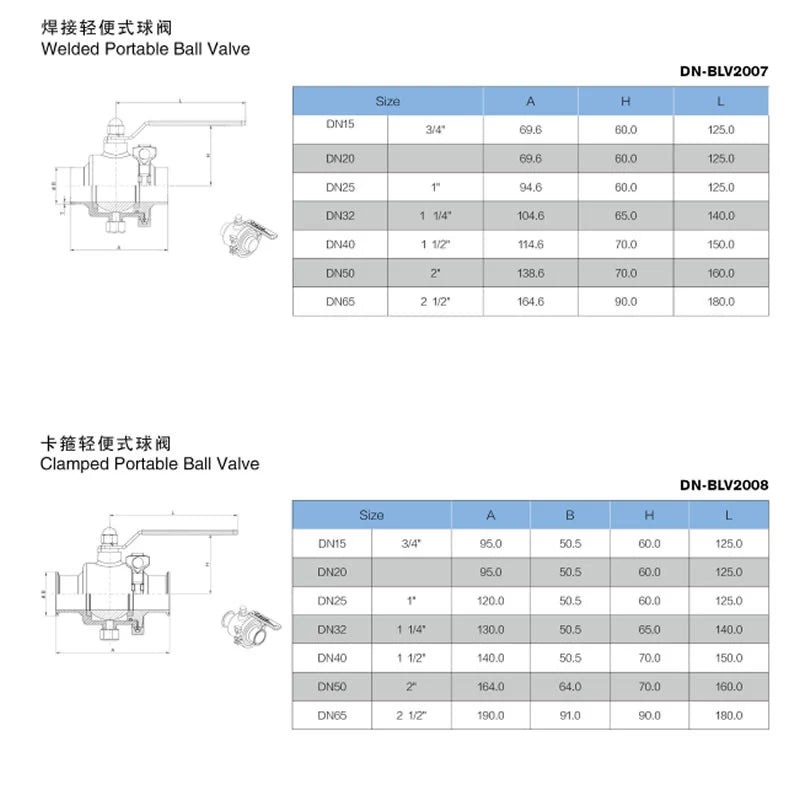

Size range: DN15–DN100 / ½”–4”
Widely used in food, dairy, pharmaceutical, brewing, oil refinery, cosmetics, and chemical industries.
