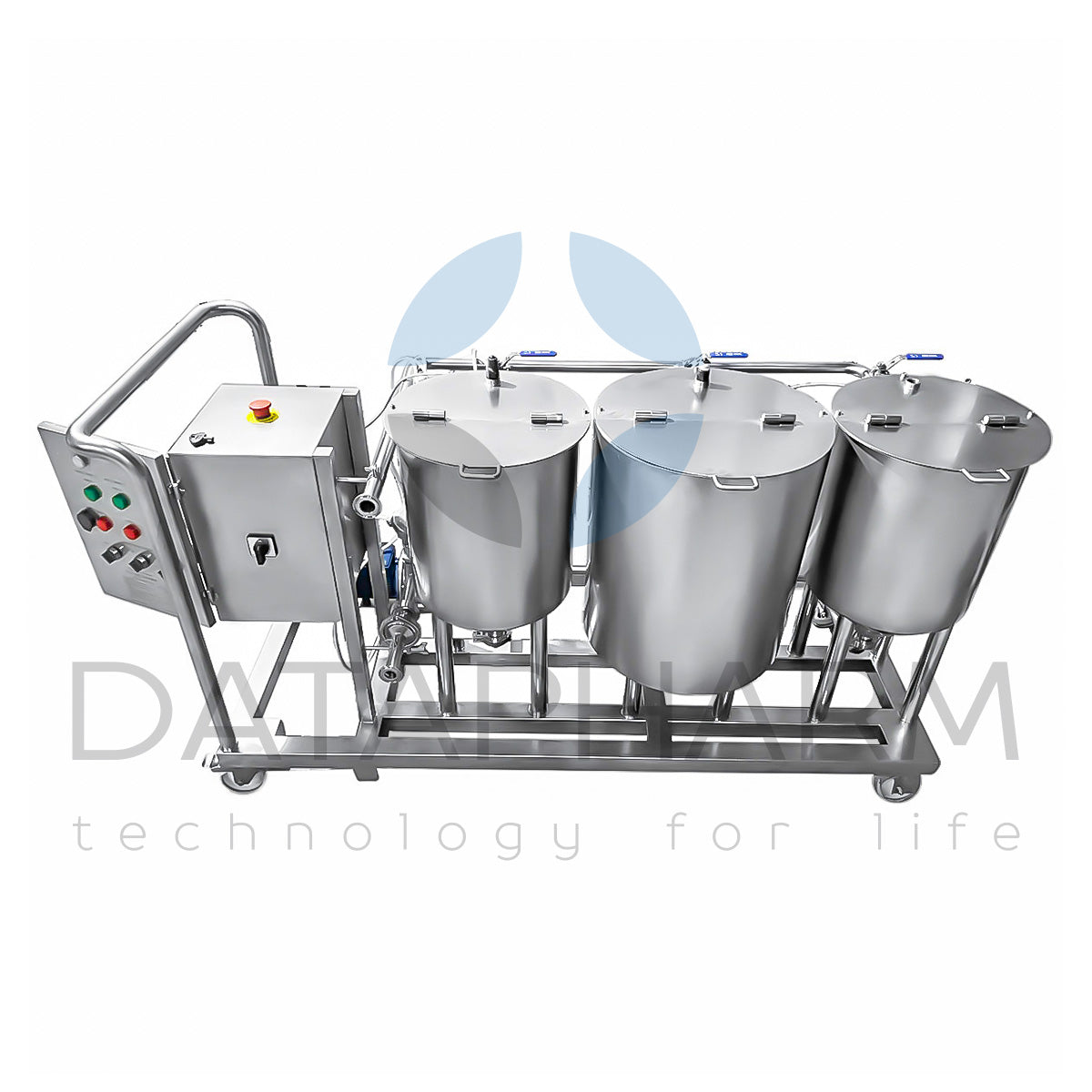

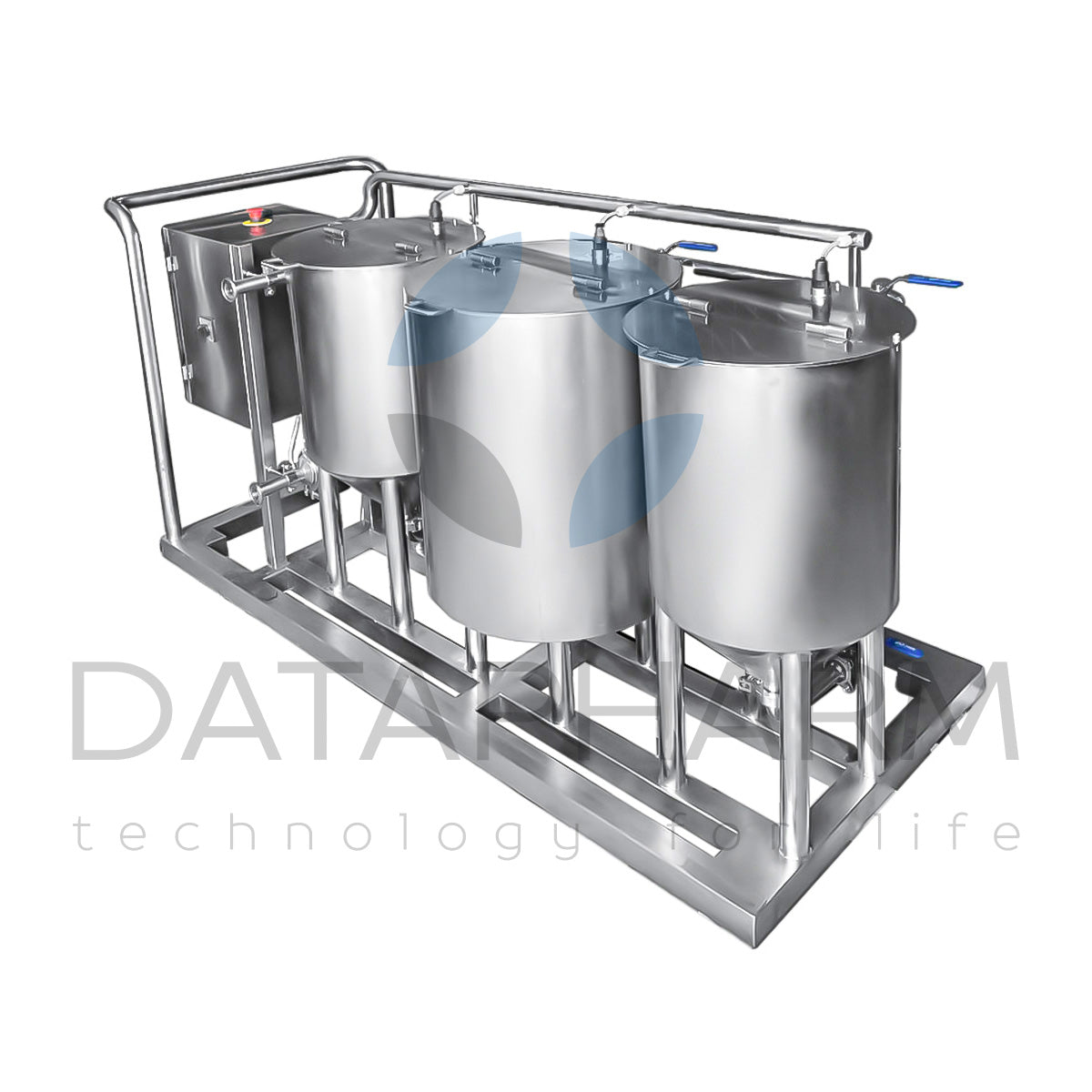

CIP Washing System (Clean-In-Place) in Stainless Steel
The DATAPHARM CIP Washing System is an advanced engineering solution for pharmaceutical, biotech, and food industries where cleanliness, accuracy, and safety are essential.
The unit enables multi-stage automatic cleaning without dismantling, alternating detergent solutions, hot water, and sterile air.
Constructed from high-grade AISI 316L stainless steel, it resists chemicals, high temperatures, and corrosion. All surfaces are sanitary polished to Ra ≤ 0.4 μm, preventing contamination buildup and biofilm formation.
The system may include:
- tanks for acid, alkaline, and rinsing solutions;

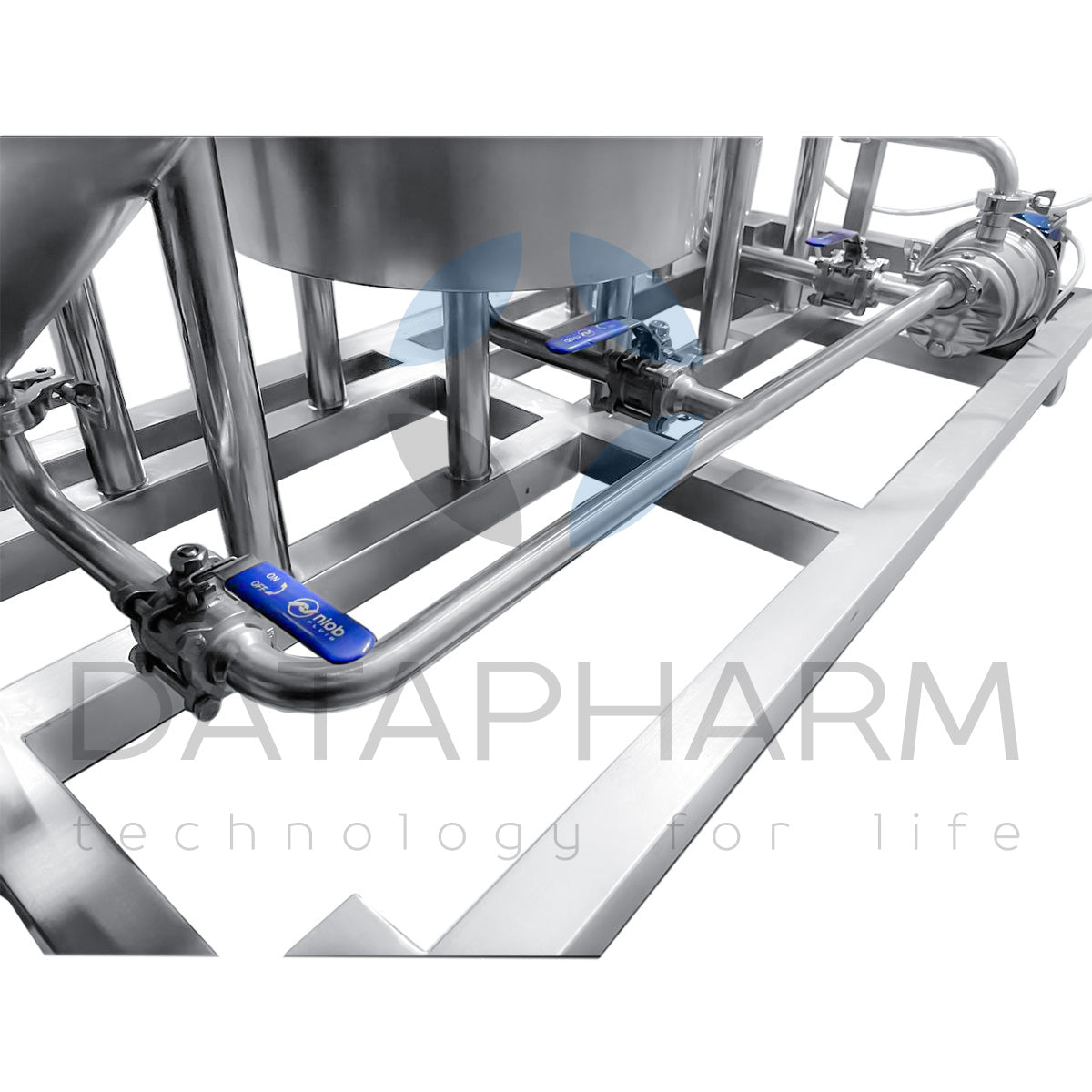

- stainless steel circulation pump;
- heating system (electric heater or steam jacket);
- filtration unit;
- pneumatic valves and level sensors;

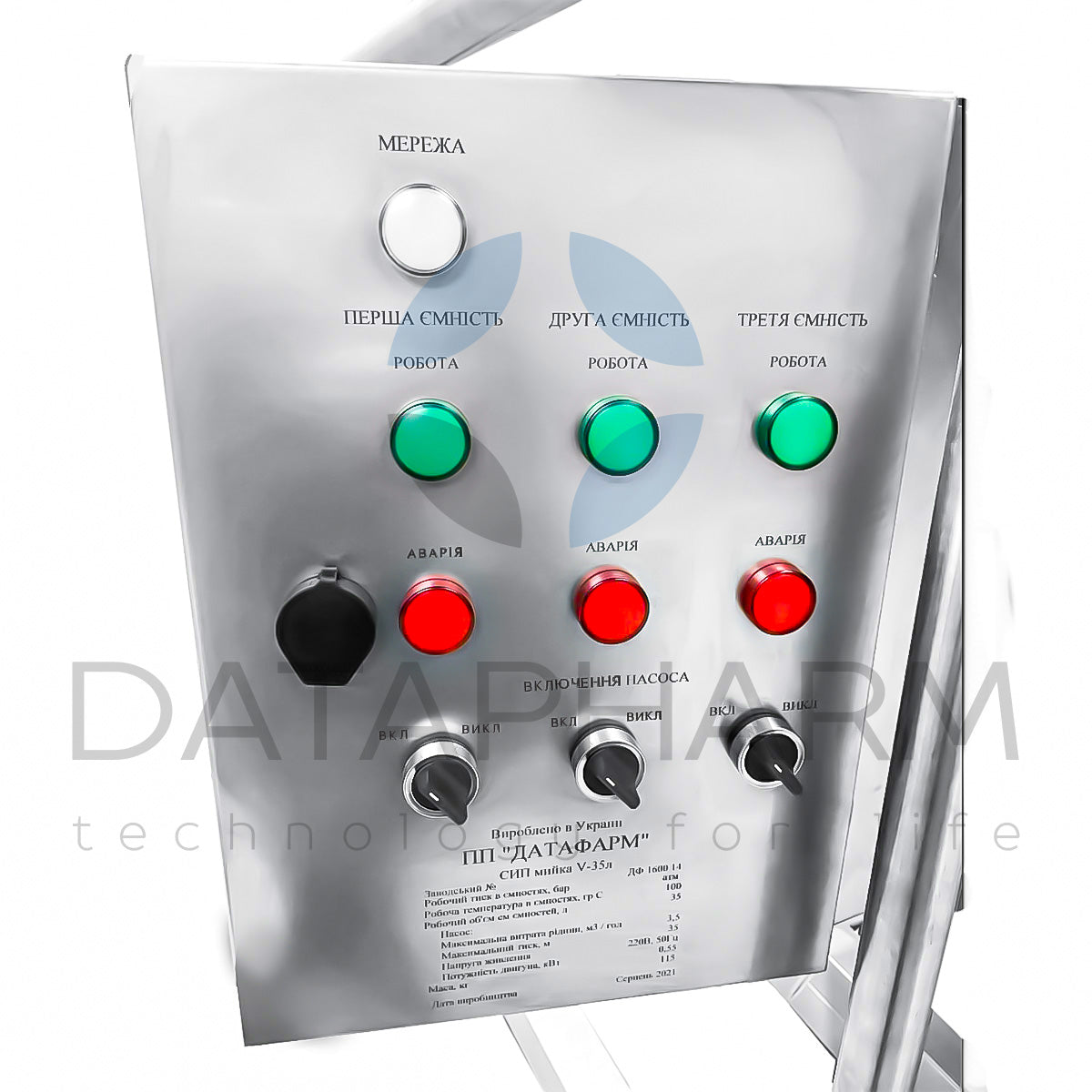

- PLC / HMI control panel with automated cycles;
- integration with SCADA or production lines.
Each system is custom-designed according to client process requirements — solution composition, tank volume, temperature parameters, and validation protocols.
⚙️ Technical Specifications:
- Purpose: automatic cleaning without equipment disassembly
- Material: stainless steel AISI 316L / 304
- Tank volume: 50–500 L (custom design)
- Circuits: 1–3 (alkaline, acid, rinse)
- Washing temperature: up to +90°C
- Surface finish: mirror-polished, Ra ≤ 0.4 μm
- Pump: centrifugal, sanitary design
- Control: automatic (PLC / HMI) + manual mode
- Power supply: 380 V, 50 Hz
- Standards: GMP, FDA, ISO 9001, DIN EN 1672-2
✅ Advantages:
- Full process automation (no disassembly required)
- Up to 40% reduction in water and detergent use
- GMP / FDA compliant hygienic design
- Operator safety — closed system without chemical contact
- High-quality sanitary welding and polishing
- Integration with existing process lines
- Fully customizable design
🌟 The DATAPHARM CIP Washing System ensures reliable and efficient sanitary cleaning of production equipment. With robust construction, smart automation, and full GMP compliance, it guarantees process stability, safety, and cost efficiency.
Optimize your cleaning processes with DATAPHARM. We’ll design and build a CIP system tailored to your production requirements to ensure hygiene, safety, and compliance.
📞 Contact us today — our engineer will reach out to discuss your project details.
