Three-Door GMP Material Transfer Pass Box
The pass box consists of a sealed transfer chamber equipped with three hinged doors featuring viewing windows and an interlock locking system. This design allows efficient material logistics between several rooms while maintaining a controlled cleanroom environment.

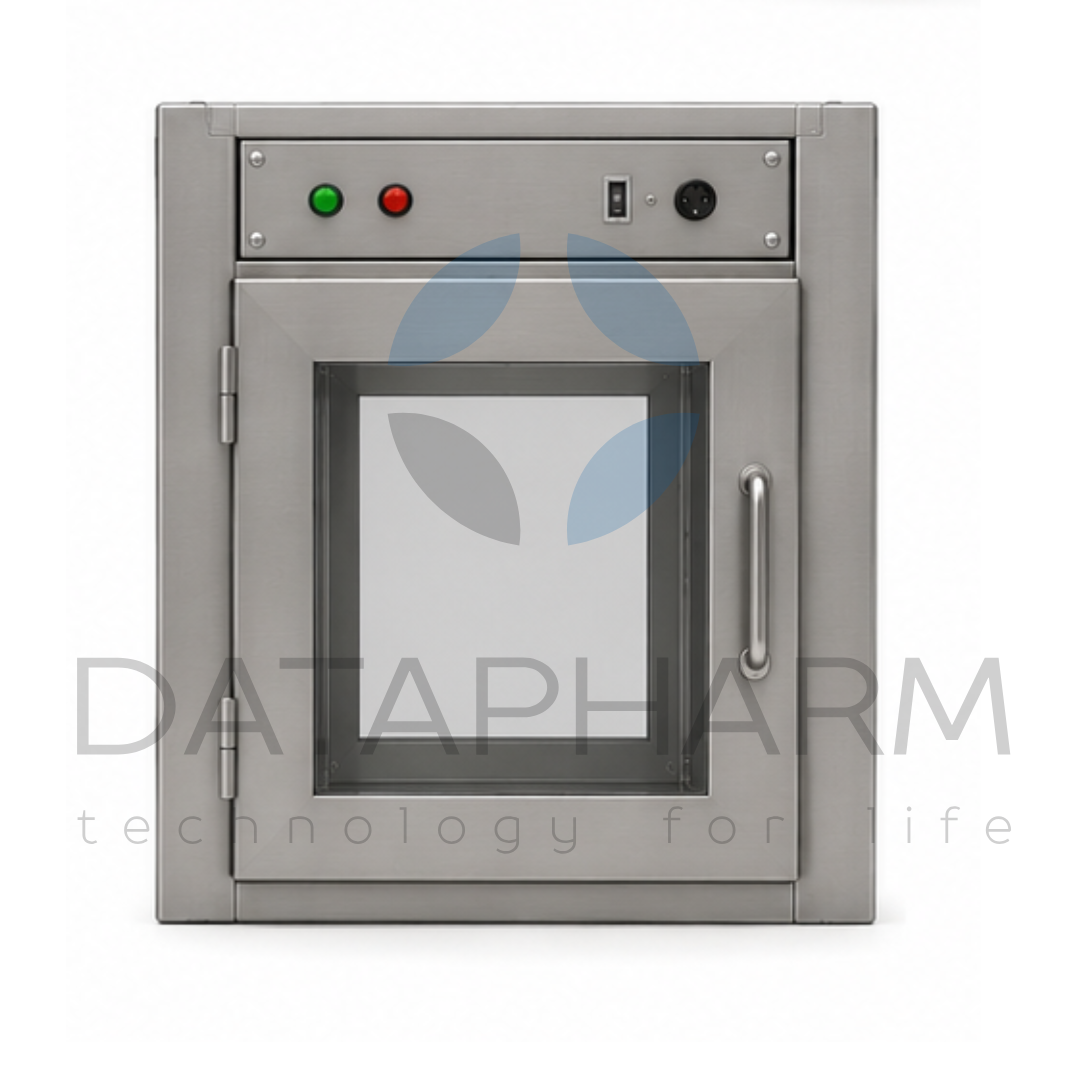

👌 Each door is equipped with:
- viewing window
- ergonomic handle
- LED status indication
- door locking system
The interlock system prevents simultaneous opening of multiple doors and reduces the risk of uncontrolled air exchange between rooms.
📐 Construction and Design
The housing and internal chamber are manufactured from AISI 304 stainless steel with a GMP-ready surface resistant to regular sanitary cleaning and disinfectants.
✔️ Design features include:
- three-sided access to the working chamber
- sealed housing construction
- reinforced frame structure
- smooth internal surfaces
- minimal hidden contamination areas
- high resistance to corrosion and chemical agents
The compact geometry allows easy integration into cleanroom partitions and pharmaceutical wall panel systems.
📌 Functional Capabilities
The passive transfer box provides:
- safe separation of process areas
- reduced cross-contamination risk
- convenient product transfer between rooms
- maintenance of GMP sanitary conditions
- simplified internal production logistics
Upon request, the unit can be equipped with:
- mechanical or electronic interlock
- AISI 316L execution
- custom chamber dimensions
- additional LED indication
- individual door configurations
⚙️ Technical Specifications:
- Equipment type: passive material pass box
- Number of doors: 3
- Housing material: AISI 304 / AISI 316L
- Surface finish: polished GMP-ready
- Door type: hinged with viewing windows
- Locking system: interlock
- Installation type: built-in / floor-mounted
- Configuration: custom manufacturing
✅ Advantages:
- three-sided access to the transfer chamber
- GMP-compatible construction
- no ventilation connection required
- high chamber tightness
- resistance to disinfectants
- easy sanitary cleaning
- integration into cleanroom infrastructure
- manufacturing according to project requirements
We manufacture GMP material transfer pass boxes according to individual dimensions and technical specifications. Various execution options, interlock systems, door configurations, and AISI 304 / AISI 316L materials are available.
📩 Contact DATAPHARM specialists for technical consultation, configuration selection, and cost estimation for your cleanroom project.
