GMP Material Transfer Pass Box with Interlock System

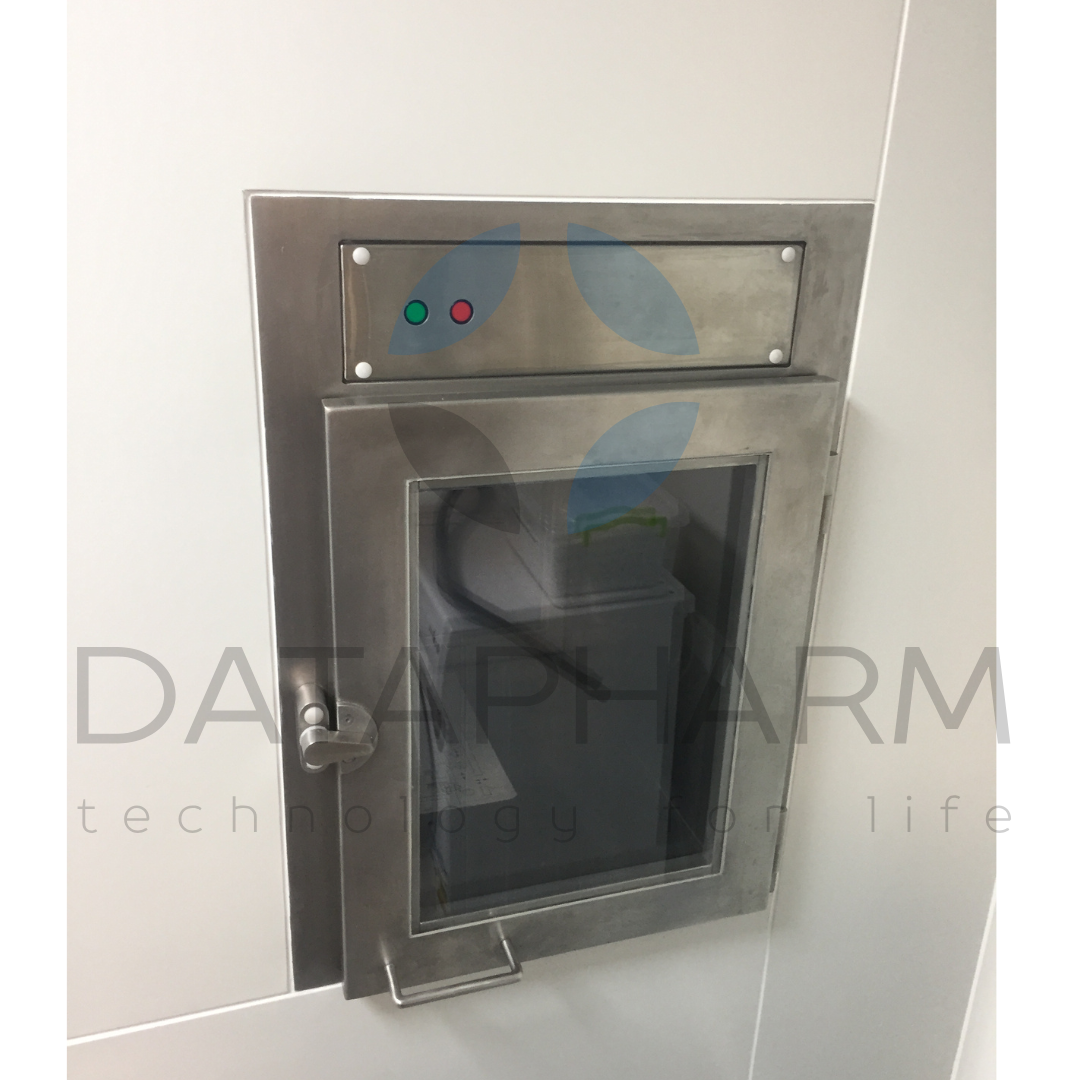

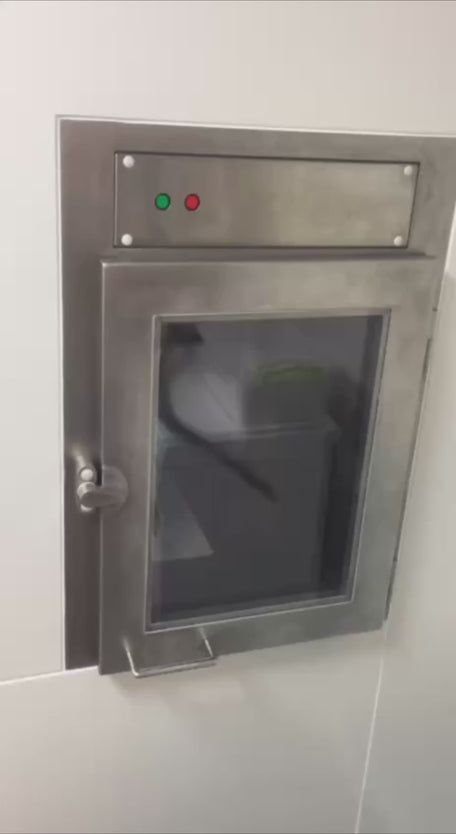

The unit consists of a sealed transfer chamber integrated into a wall partition between rooms. Material transfer is carried out through the internal chamber using sequential door opening, helping to minimize uncontrolled air exchange between zones.
The interlock system prevents simultaneous opening of doors on both sides, improving operational safety in cleanroom environments.
The passive design allows easy integration into existing GMP facilities without connection to ventilation or airflow systems.
📐 Design Features

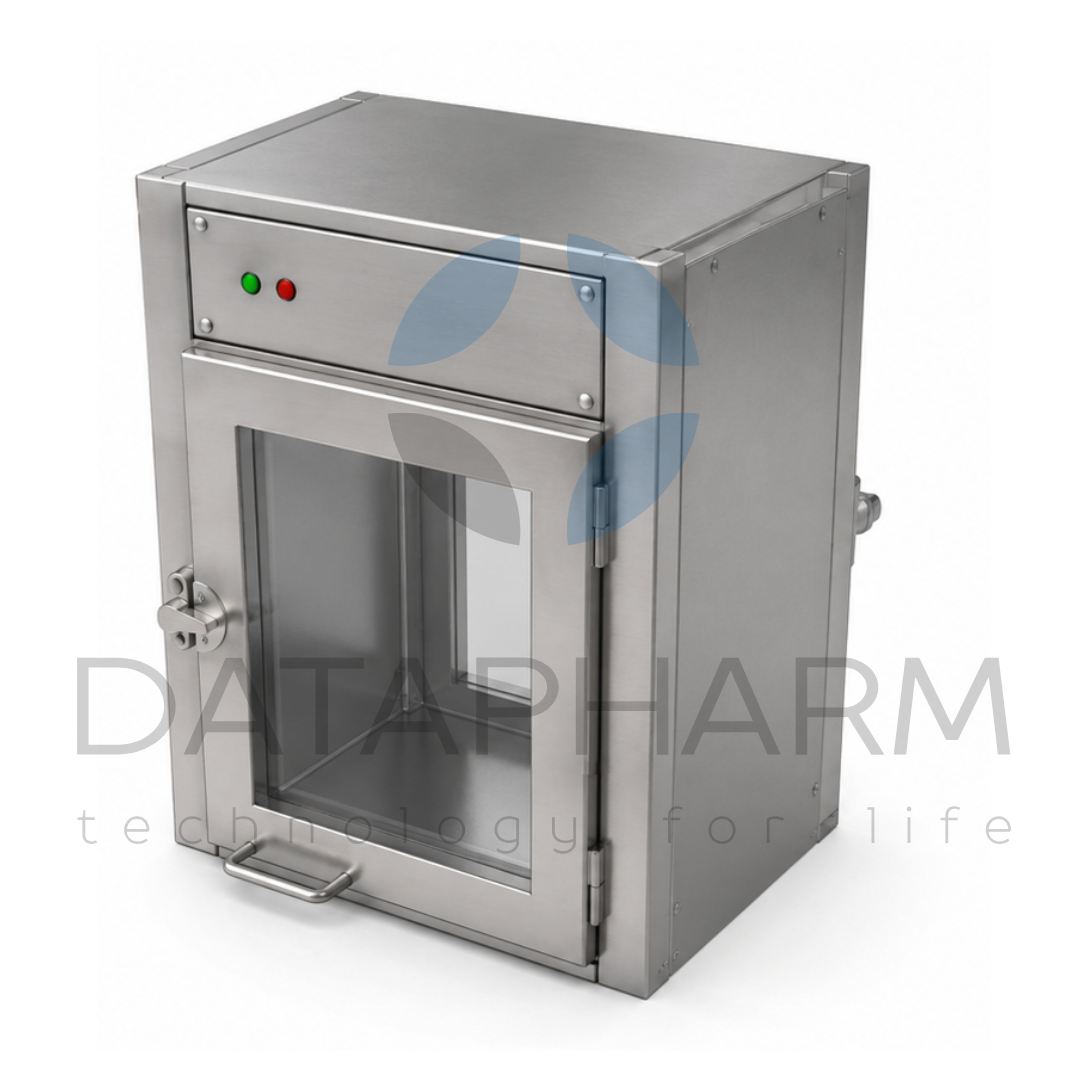

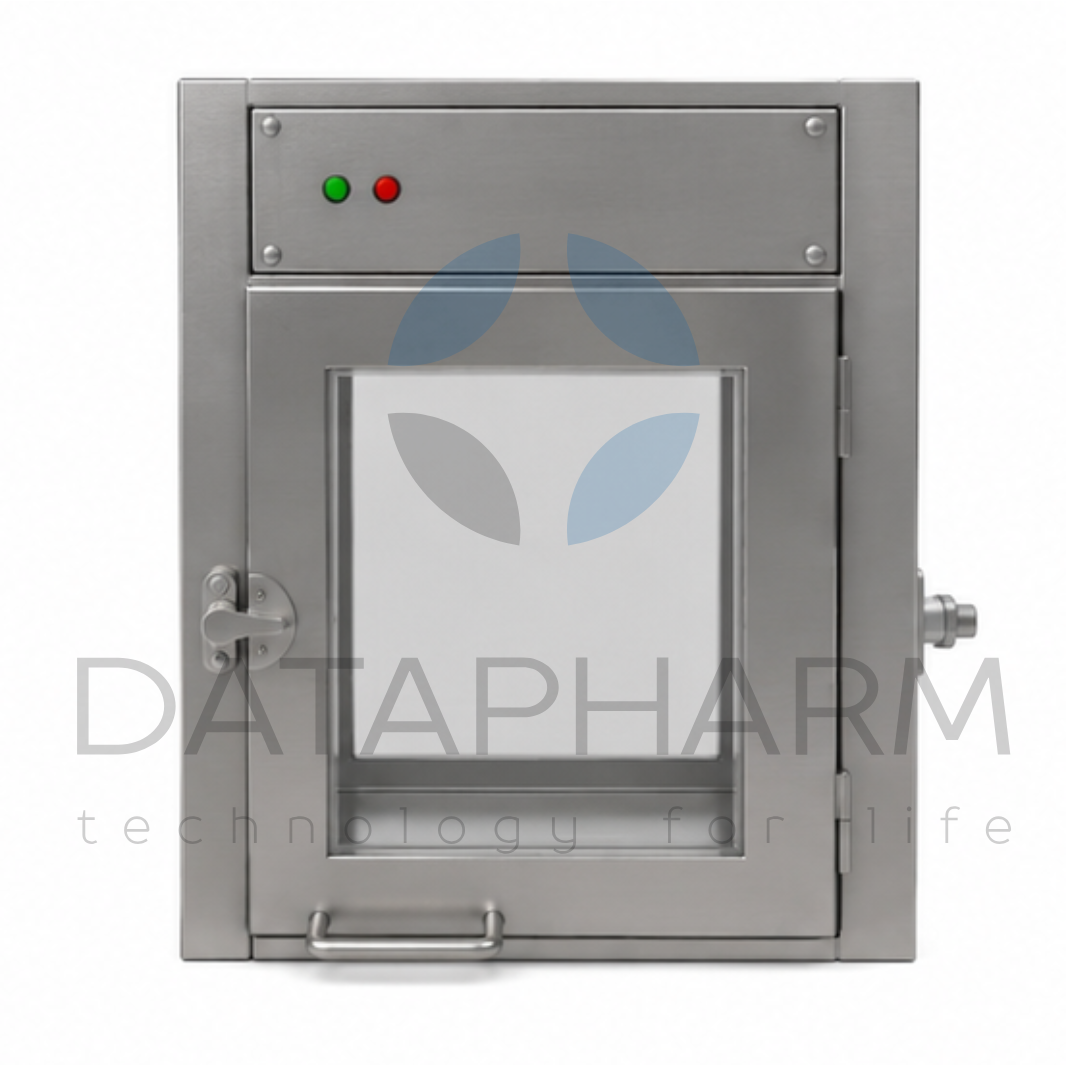

The housing and working chamber are manufactured from AISI 304 stainless steel with a polished surface resistant to disinfectants and regular sanitary cleaning procedures.
✔️ Construction features include:
- sealed internal chamber
- hygienic internal surface design
- tempered glass viewing windows
- reinforced frame structure
- wear-resistant sealing elements
- minimized hidden contamination zones
Thanks to its compact design, the pass box can be easily integrated into cleanroom panels and pharmaceutical partitions.
According to project requirements, the unit can be equipped with:
- mechanical interlock
- electromagnetic door locking
- LED status indication
- AISI 316L execution
- custom chamber dimensions
- individual door and handle configurations
🔧 Technical Specifications:
- Equipment type: passive material transfer pass box
- Housing material: AISI 304 / AISI 316L
- Surface finish: GMP-ready
- Installation type: built-in / floor-mounted
- Door type: hinged
- Glazing: tempered glass
- Locking system: interlock
- Configuration: custom execution
The equipment is used for transferring raw materials, containers, tools, documentation, laboratory samples, and finished products between cleanroom zones in pharmaceutical facilities, packaging lines, sterile production areas, and laboratories with controlled air cleanliness.
✅ Advantages:
- safe separation of cleanroom areas
- reduced contamination risk
- no ventilation connection required
- compatibility with GMP infrastructure
- easy sanitary cleaning
- high resistance to chemical agents
- simple integration into cleanroom systems
- custom manufacturing according to project requirements
DATAPHARM manufactures passive material pass box systems in accordance with hygienic design principles, cleanroom engineering requirements, and modern pharmaceutical production standards.
