Stainless Steel Passive GMP Material Transfer Pass Box

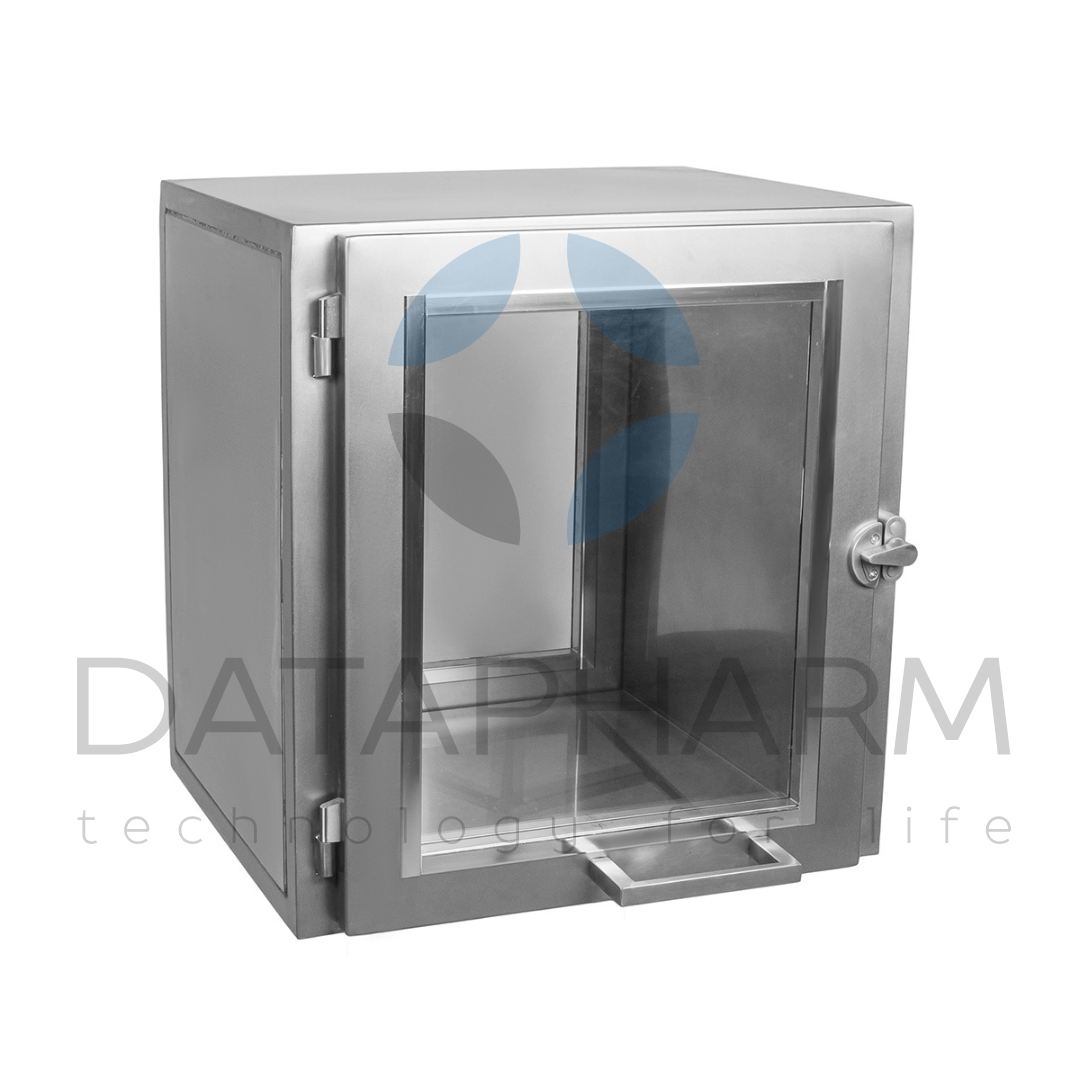

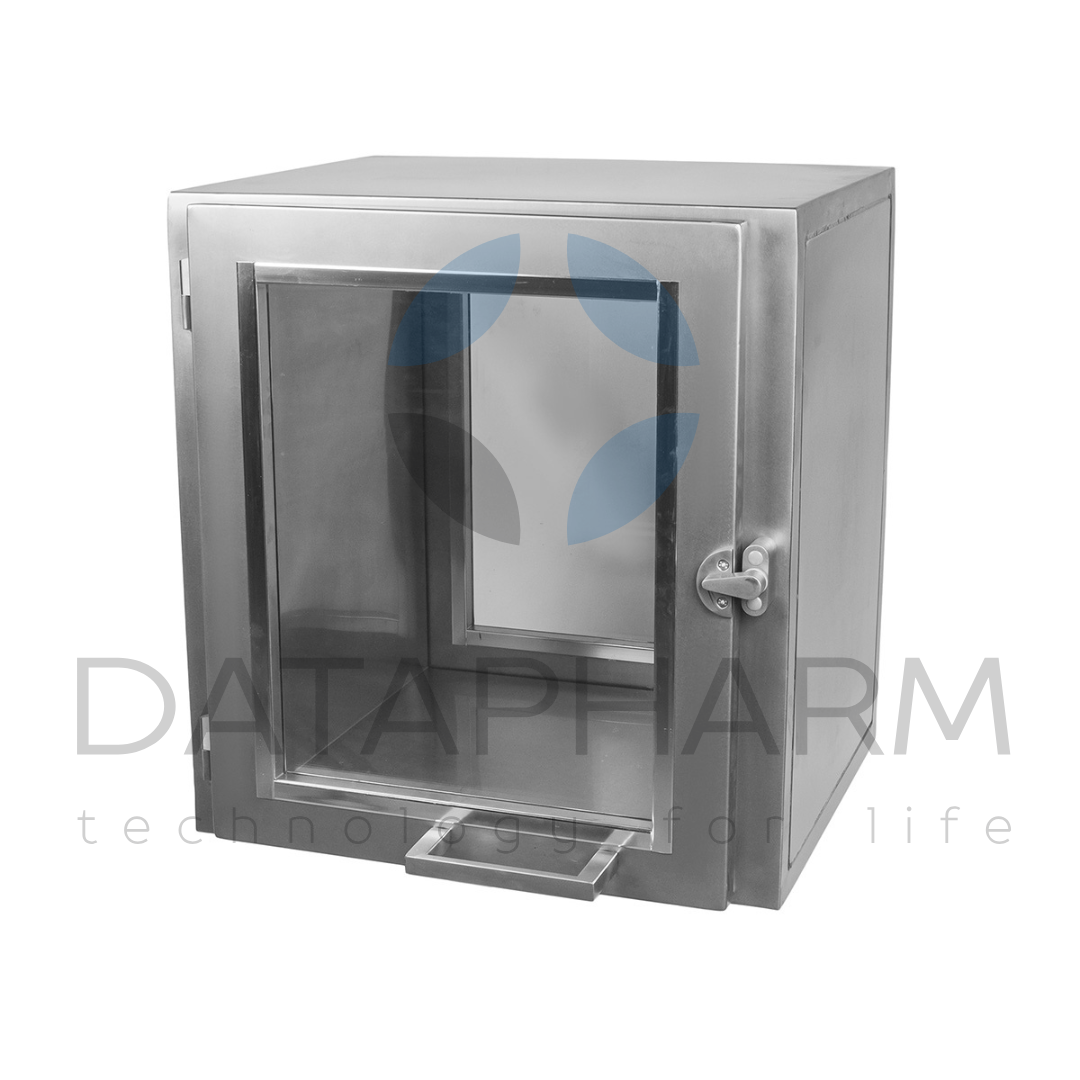

The pass box consists of a sealed transfer chamber equipped with hinged doors, viewing windows, and a mechanical locking system. This solution enables safe material transfer between rooms while minimizing the risk of contamination transfer and uncontrolled air exchange.
The passive operating principle does not require connection to an airflow system, allowing easy integration into existing cleanroom partitions and pharmaceutical facilities.
📐 Construction and Features
The housing is manufactured from AISI 304 stainless steel with smooth internal surfaces adapted for regular sanitary cleaning and operation in GMP environments.
📌 Design features include:
- sealed working chamber
- hinged doors with viewing windows
- mechanical rotary lock
- reinforced корпус structure
- resistance to disinfectants
- minimized hard-to-clean areas
- cleanroom-ready execution

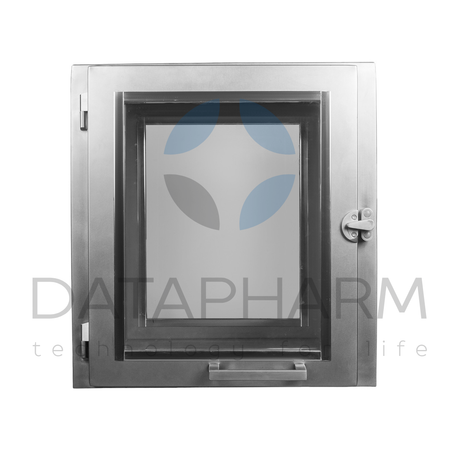

Viewing windows provide visual monitoring of the transfer process without the need to open the doors.
✔️ Functional Capabilities
🔸 The passive material pass box provides:
- safe transfer of products between rooms
- reduction of cross-contamination risks
- isolation of cleanroom areas
- maintenance of sanitary conditions
- convenient internal production logistics
Upon request, the pass box can be manufactured:
- in AISI 316L execution
- with various chamber dimensions
- with mechanical or interlock locking systems
- with custom handle and lock configurations
- in built-in or floor-mounted versions
⚙️ Technical Specifications:
- Equipment type: passive material pass box
- Housing material: AISI 304 / AISI 316L stainless steel
- Construction type: sealed transfer chamber
- Door type: hinged
- Glazing: tempered glass
- Lock type: mechanical rotary lock
- Surface finish: polished GMP-ready
- Installation type: built-in / floor-mounted
- Configuration: custom manufacturing
The equipment is used for transferring raw materials, packaging, documentation, laboratory materials, and finished products between cleanroom areas in pharmaceutical facilities, packaging departments, microbiological laboratories, and sterile production lines.
✅ Advantages:
- GMP-compatible construction
- no ventilation connection required
- high chamber tightness
- easy sanitary cleaning
- resistance to corrosion and chemicals
- simple integration into cleanroom infrastructure
- long service life
- manufacturing according to customer technical requirements
DATAPHARM manufactures passive material transfer pass boxes in accordance with hygienic design principles, cleanroom engineering requirements, and modern pharmaceutical manufacturing standards.
