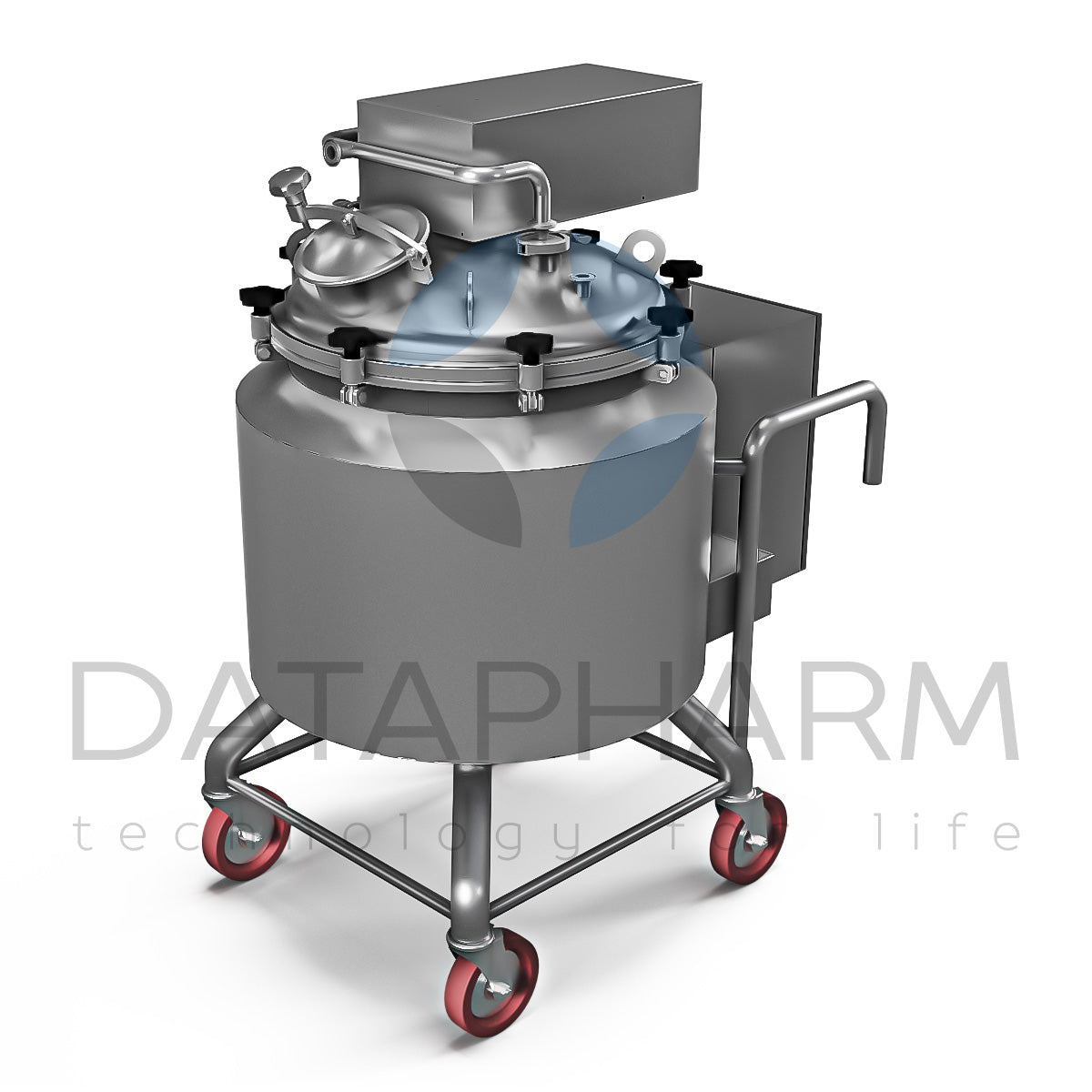

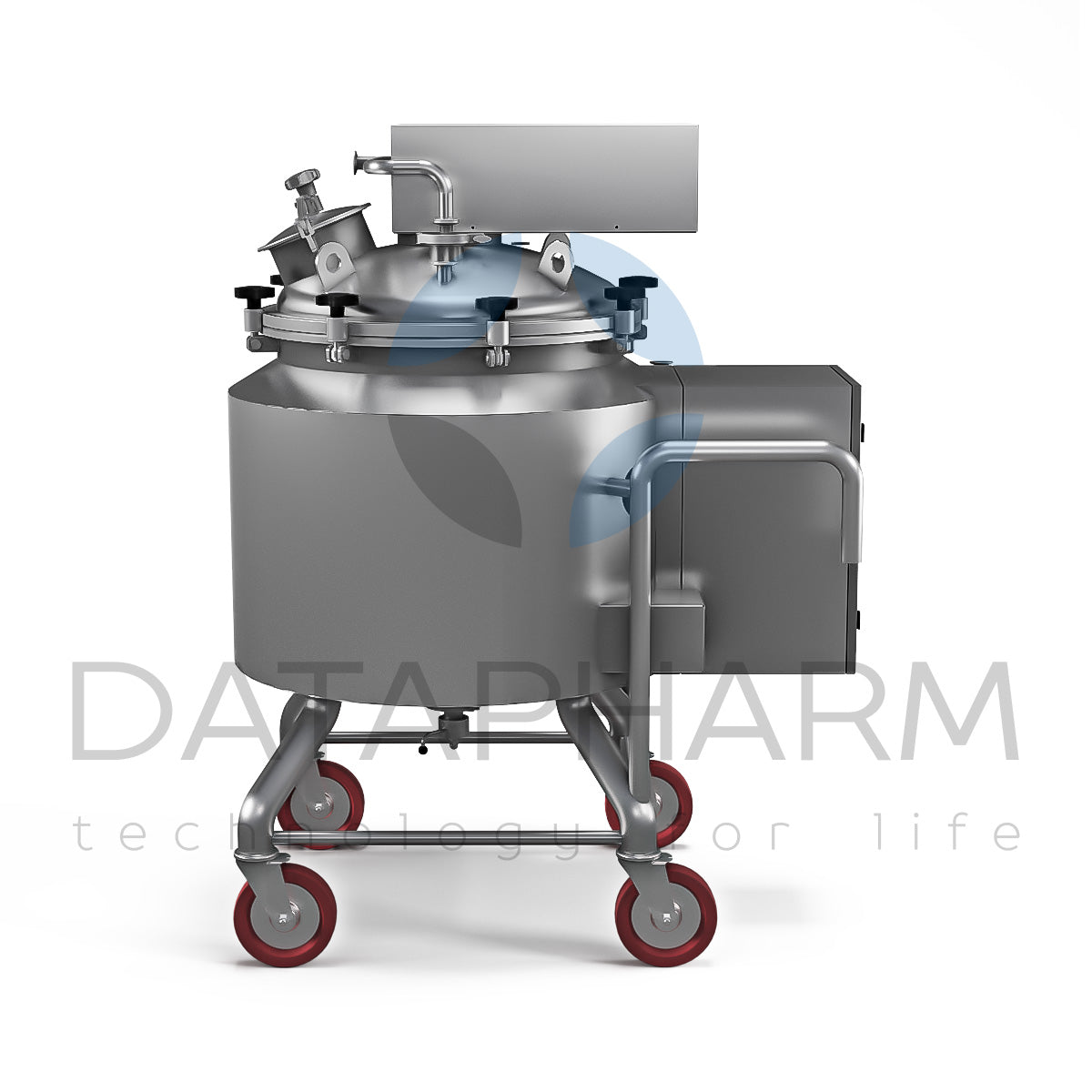

200 L Process Reactor with heating/cooling Jacket and Agitator
The DATAPHARM 200 L reactor is a professional system engineered for technological processes requiring precise mixing and temperature control. The vessel is made of AISI 304/316L stainless steel, with an internal surface polished to Ra ≤ 0.8 μm, eliminating dead zones and ensuring maximum hygiene.
The heating/cooling jacket allows accurate temperature regulation within 0…+150 °C (depending on configuration). The geared agitator provides stable and uniform mixing, including high-viscosity products. The sealed lid includes process ports for raw material feeding, vacuum connection, instrumentation, and CIP washing.
A reinforced mobile frame with swivel castors enables easy movement between production zones. The reactor is suitable for emulsification, dissolution, dispersion, heating, cooling, pasteurization, homogenization, and intermediate preparation.
Fully compliant with GMP, the system can be configured according to specific process requirements.
⚙️ Technical Specifications:
- Volume: 200 L
- Body material: stainless steel AISI 304 / 316L
- Internal surface: Ra ≤ 0.8 μm
- Agitator types: anchor / propeller / frame (optional)
- Drive: geared motor, IP55–IP65
- Speed control: fixed or VFD
- Jacket: heating / cooling
- Temperature range: 0…+150 °C
- Lid: sealed, with process ports
- Connections: clamp, DIN, SMS
- Vacuum operation: optional
- Pressure operation: up to 0.5–1.0 bar (on request)
- Supports: reinforced mobile wheels with brakes
🛠 Additional options:
– CIP/SIP

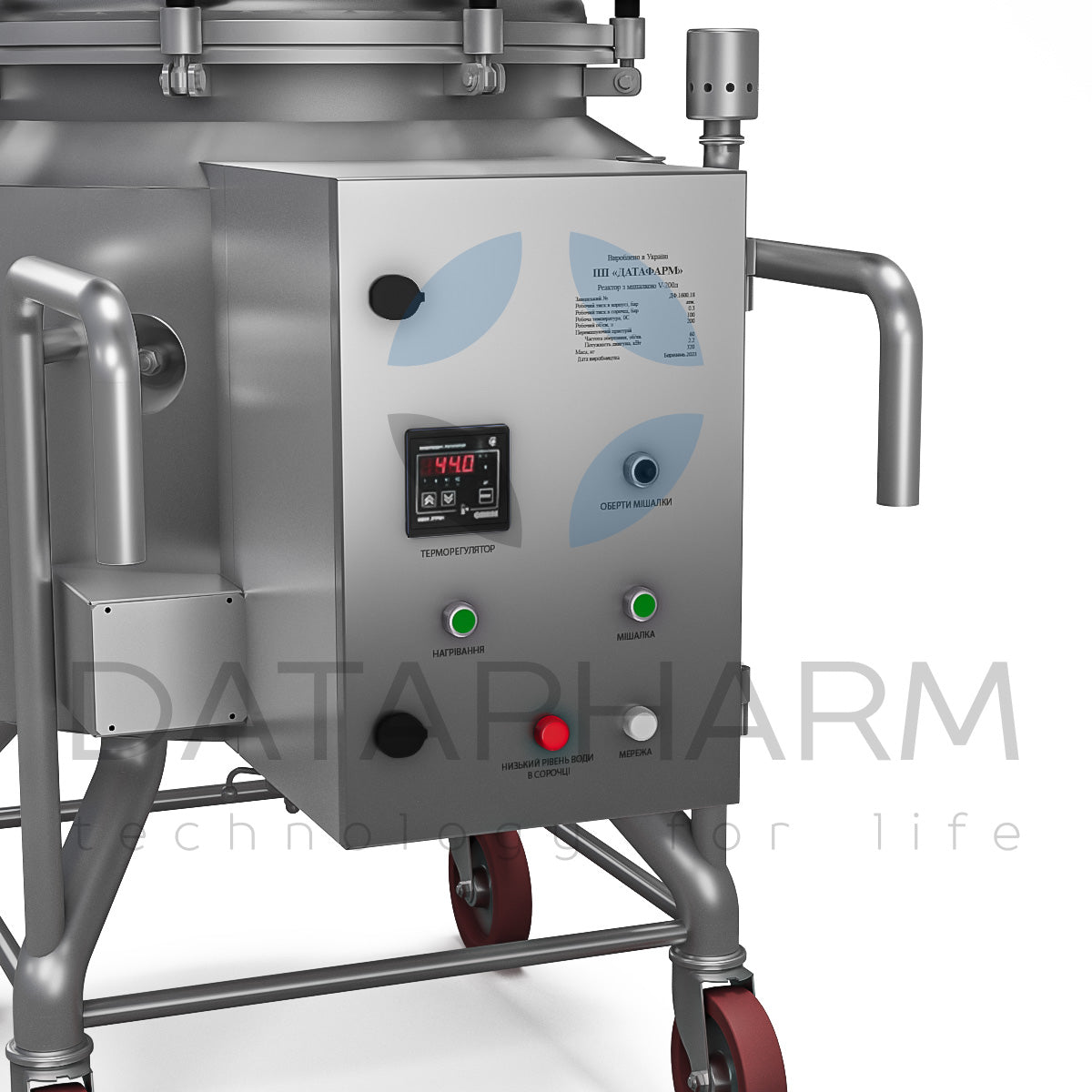

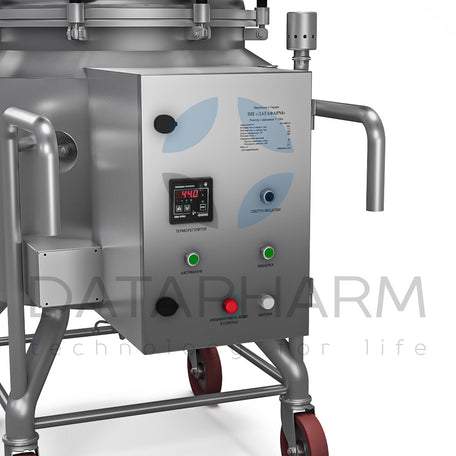

– automation and control panel
– level/temperature/pressure sensors
– explosion-proof motor
– inspection port
✅ Advantages:
- Full GMP compliance
- Heating/cooling jacket
- Polished interior Ra ≤ 0.8 µm
- Reliable gear-driven agitator
- Optional vacuum/pressure operation
- Sealed lid with process ports
- Strong mobile frame with castors
- CIP/SIP support
- High corrosion resistance (AISI 304/316L)
- Sensor integration
- Custom configuration
- Vibration-stable design
🌟 The DATAPHARM 200 L reactor with jacket and agitator is a reliable technological solution for mixing, heating, cooling, and product preparation. High-quality materials, robust design, and flexible configuration make it ideal for pharmaceutical, cosmetic, and chemical applications, ensuring full GMP compliance.
