Laminar Module System with RABS Integration for GMP Class A Cleanrooms
The RABS complex is a high-technology laminar platform redesigned at the levels of mechanical structure, airflow aerodynamics, and control logic for operation in areas with the most stringent sterility requirements. The project is based on previously installed equipment that has undergone comprehensive engineering reconfiguration with the implementation of modern RABS solutions and digital monitoring systems.

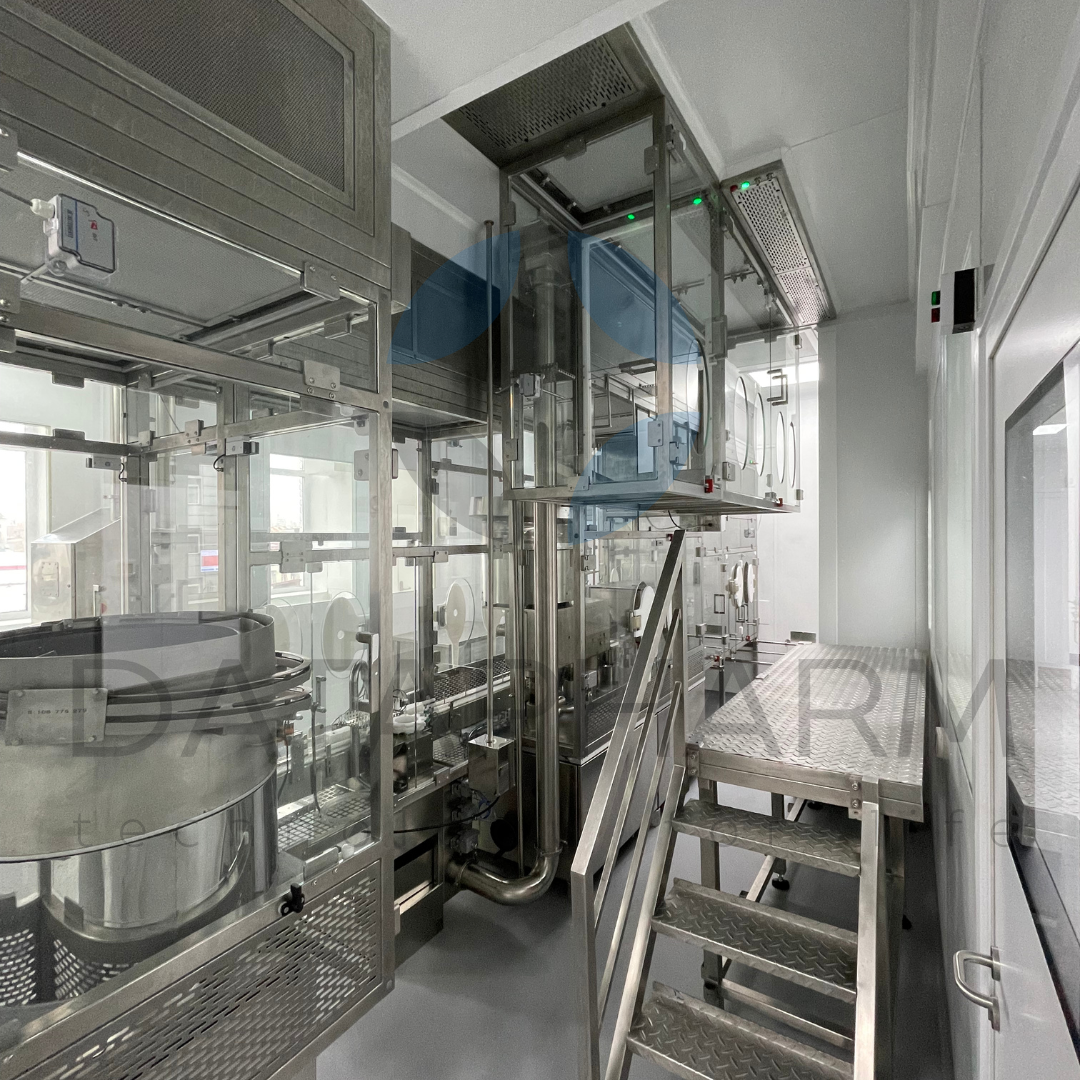

During modernization, selected load-bearing elements and filtration components were retained, allowing for reduced implementation time and optimized capital expenditure. At the same time, the system was expanded with new laminar modules featuring high-efficiency air purification and an integrated RABS frame implementing a vertical airflow scheme and a stable barrier regime within the working zone.

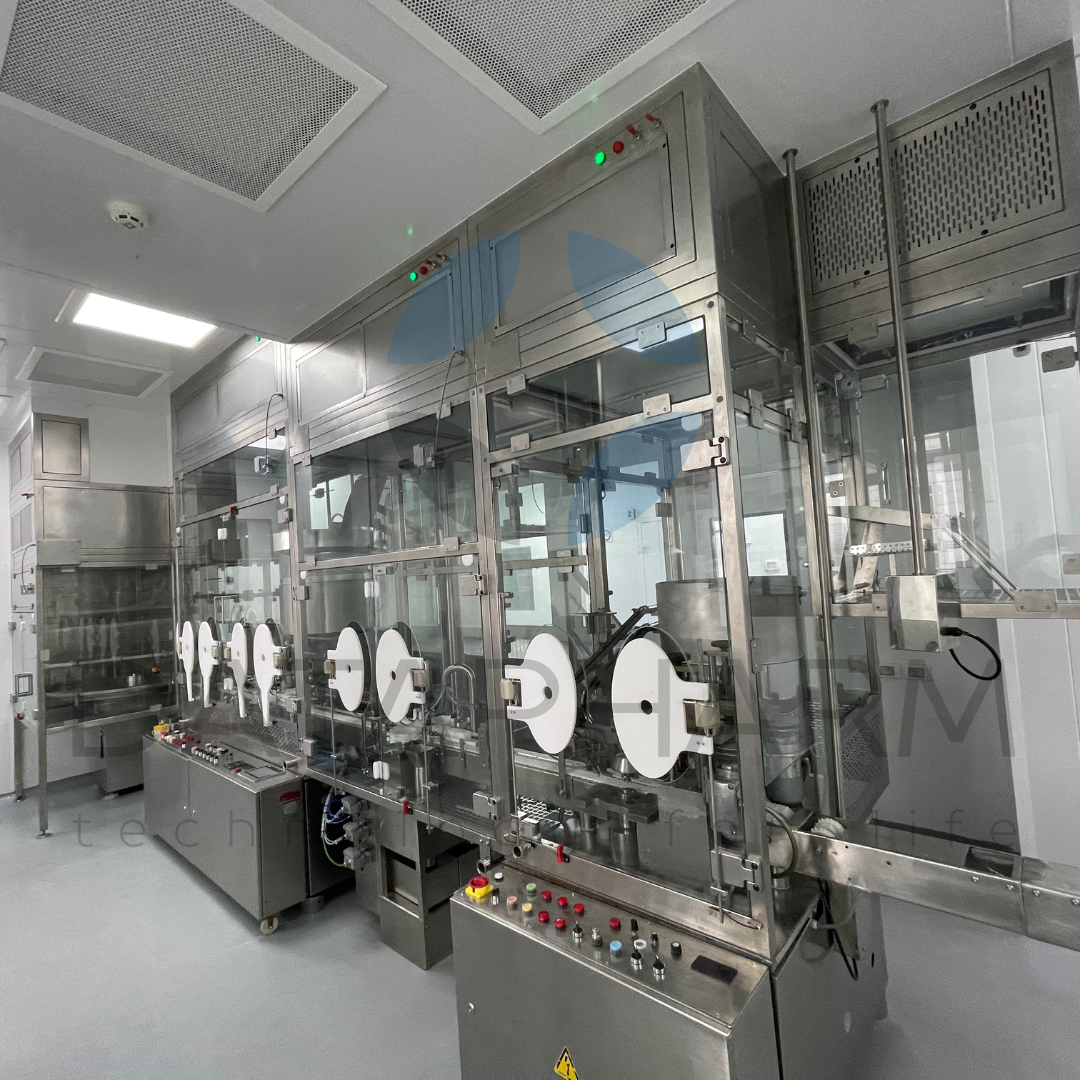

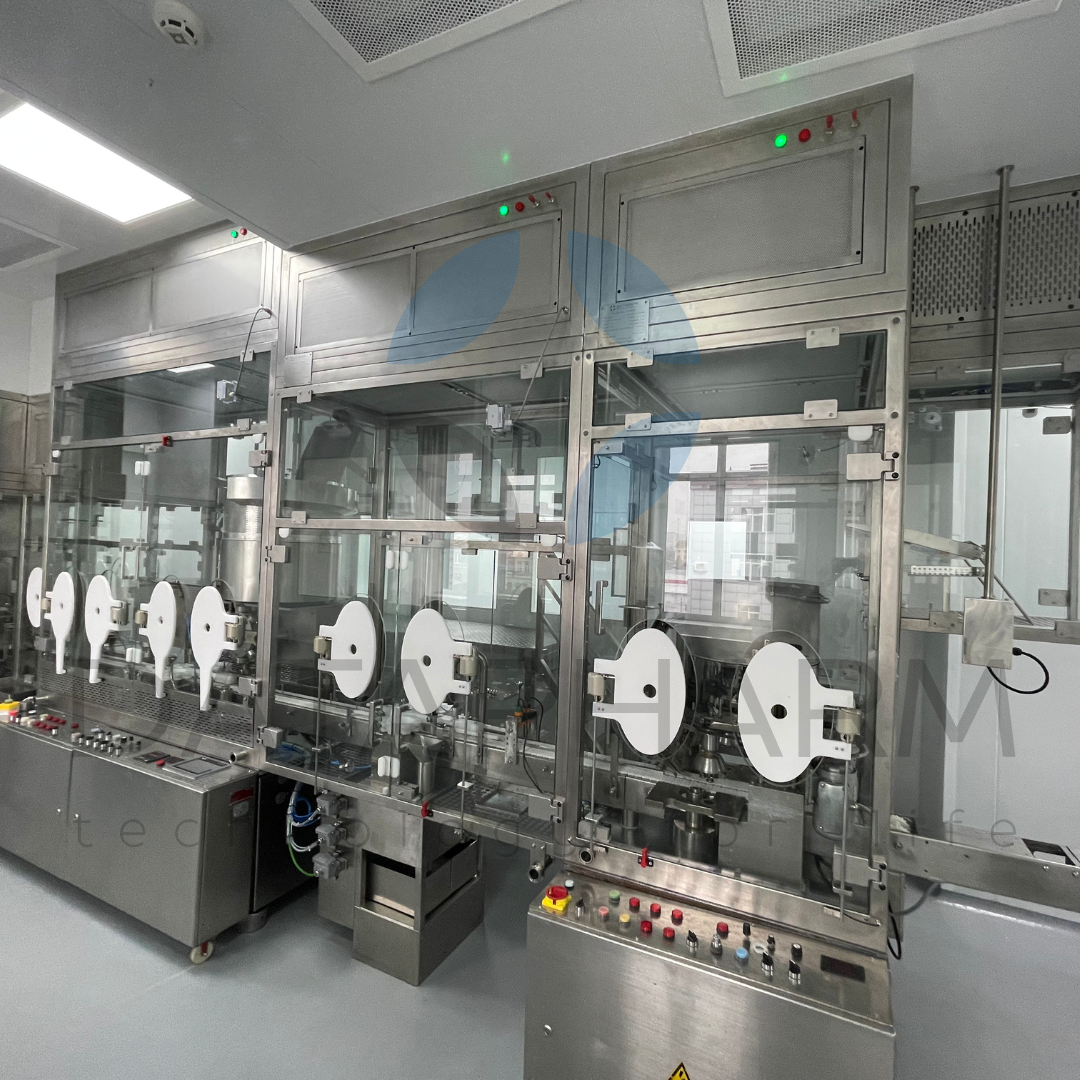

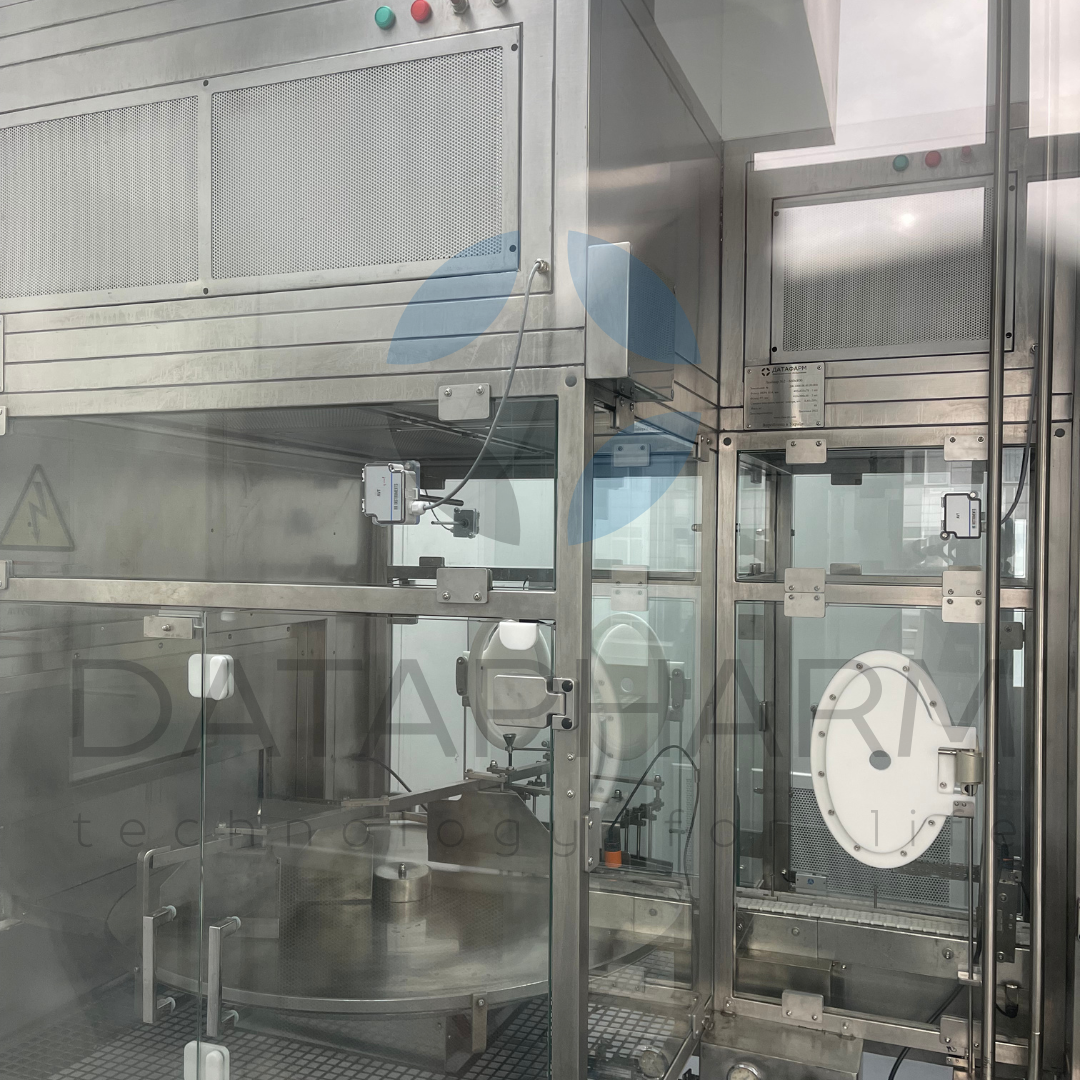

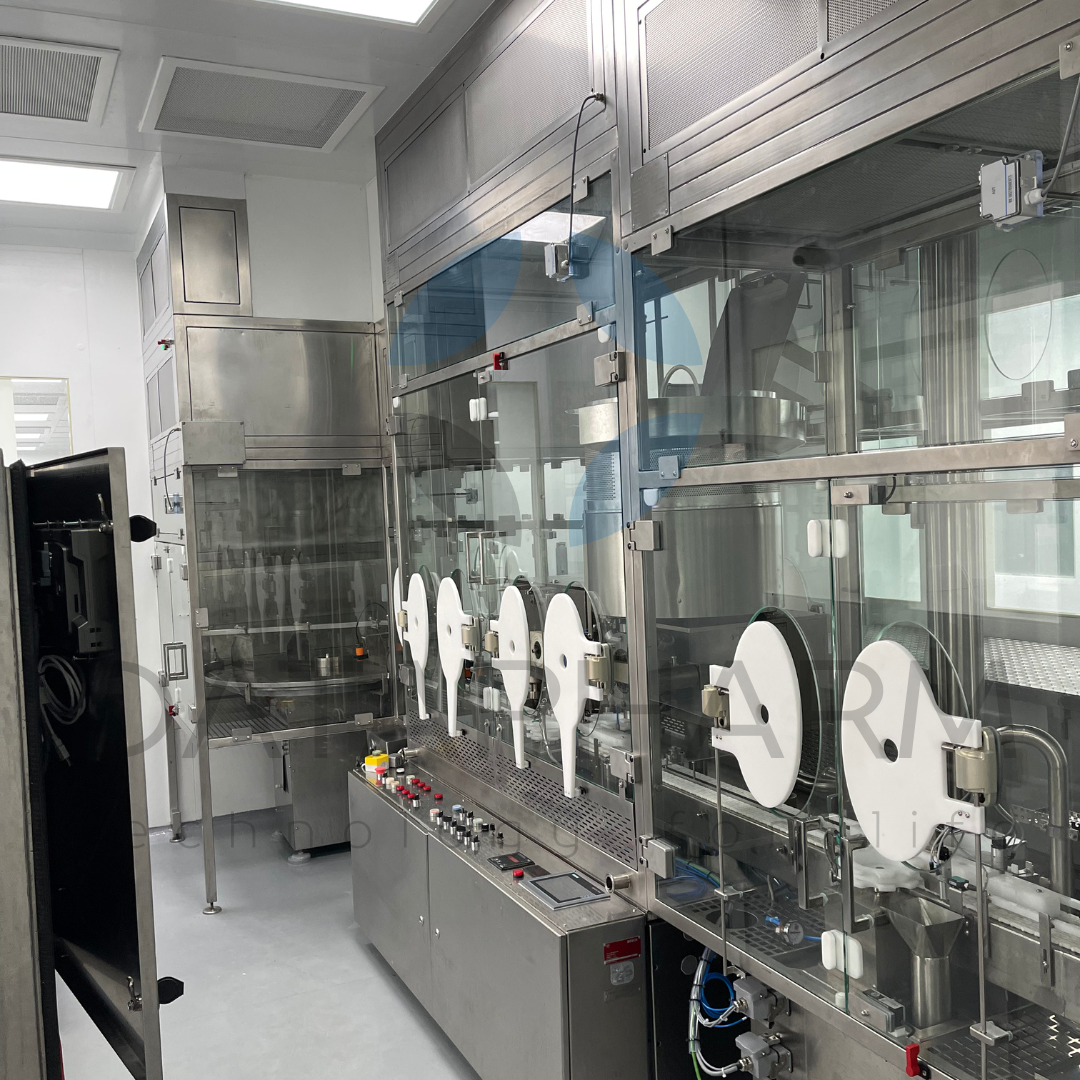

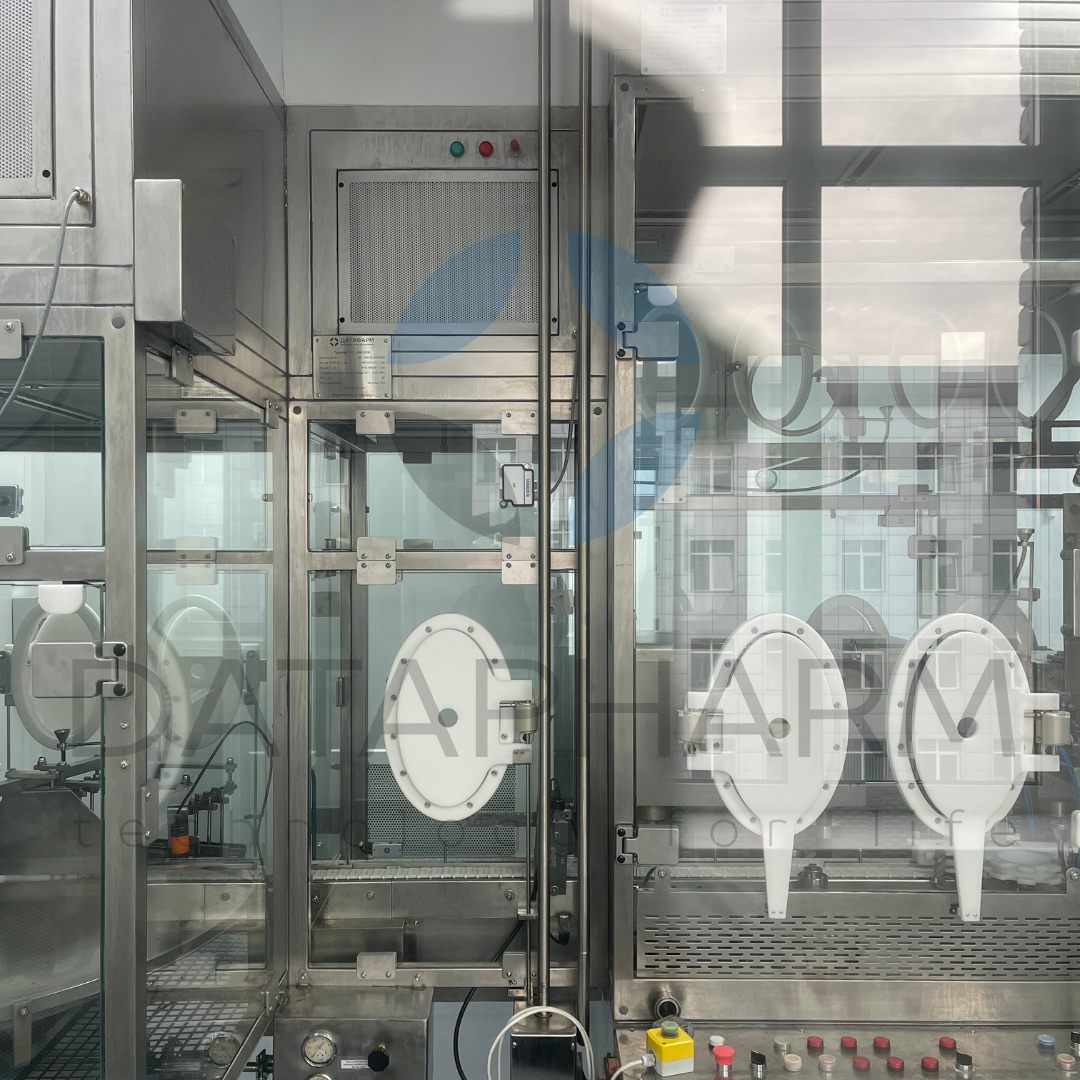

To perform technological operations without compromising the sterile boundary, the system is equipped with glove ports as well as an integrated rotary carousel mechanism designed for internal aseptic material transfer. System control is carried out via a touchscreen human–machine interface with visual status indication, interlock systems, and full event logging, ensuring process traceability and compliance with pharmaceutical regulations.
The system forms a stable physical and aerodynamic barrier between the operator and the product, reduces the risk of cross-contamination, and provides controlled, regulated access to critical zones. The solution is individually engineered to customer requirements and integrated into large-scale pharmaceutical manufacturing infrastructures.
Digital Architecture and Proprietary Software
A key element of the system is proprietary software developed by our engineering team specifically for pharmaceutical laminar and RABS systems. The software platform provides centralized monitoring, visualization, and long-term data storage for all critical aseptic parameters.
Software functionality includes:
- monitoring of laminar airflow velocity and uniformity;
- pressure drop control across HEPA / ULPA filters;
- measurement and analysis of differential pressure between zones;
- monitoring of RABS enclosure door status (open/closed);
- access control to glove ports using safety light curtains;
- logging of operator actions and service interventions;
- detection and recording of alarm and pre-alarm conditions.
All events, deviations, and interventions are automatically time-stamped and form a complete Audit Trail compliant with GMP, EU Annex 1, and, when required, 21 CFR Part 11.
🔧 Scope of Reconstruction Works:
- retention of selected structural and filtration components to shorten implementation time;
- installation of new laminar modules with H14 / ULPA filtration;
- integration of the RABS frame with vertical airflow configuration;

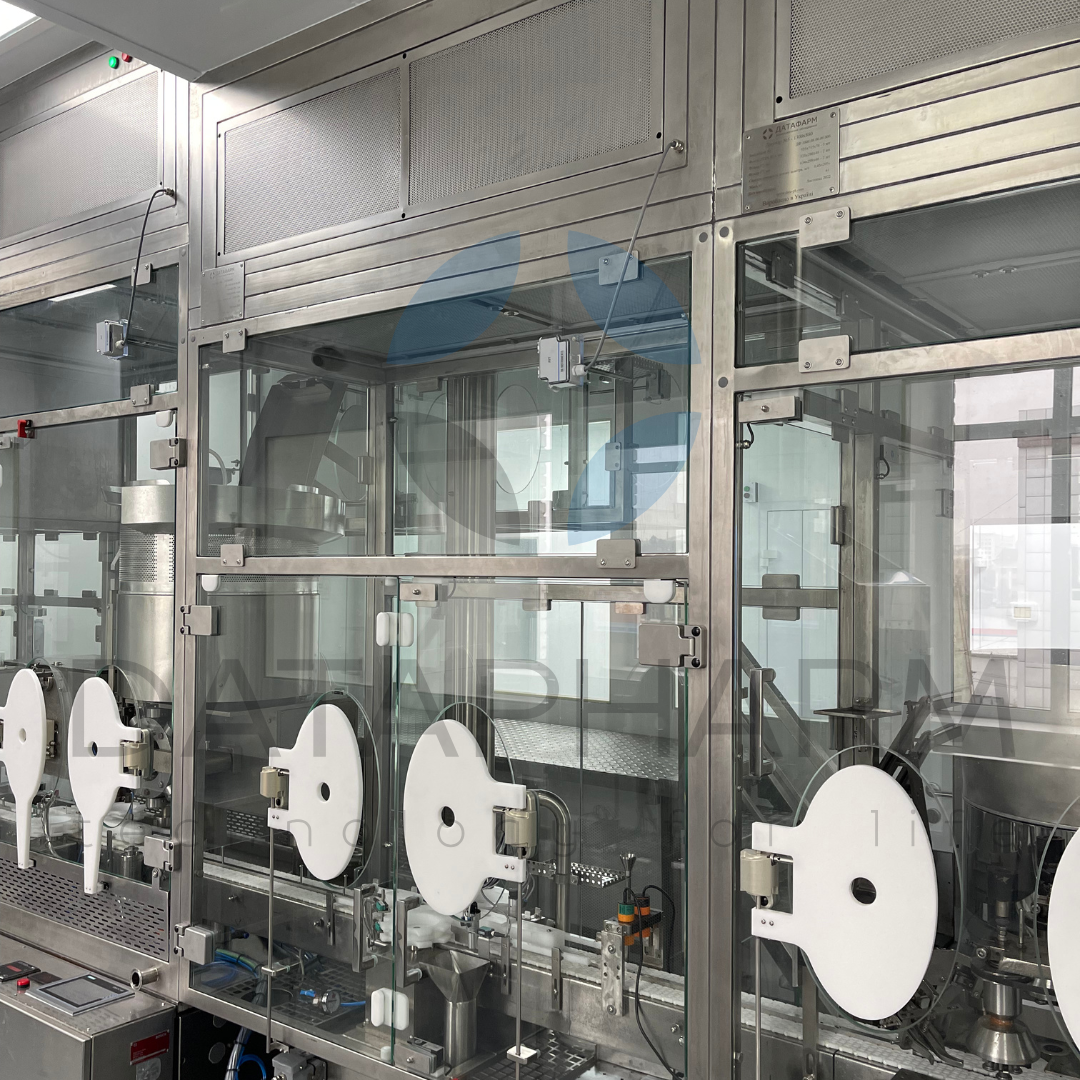

- installation of sealed partitions and service doors made of tempered glass;

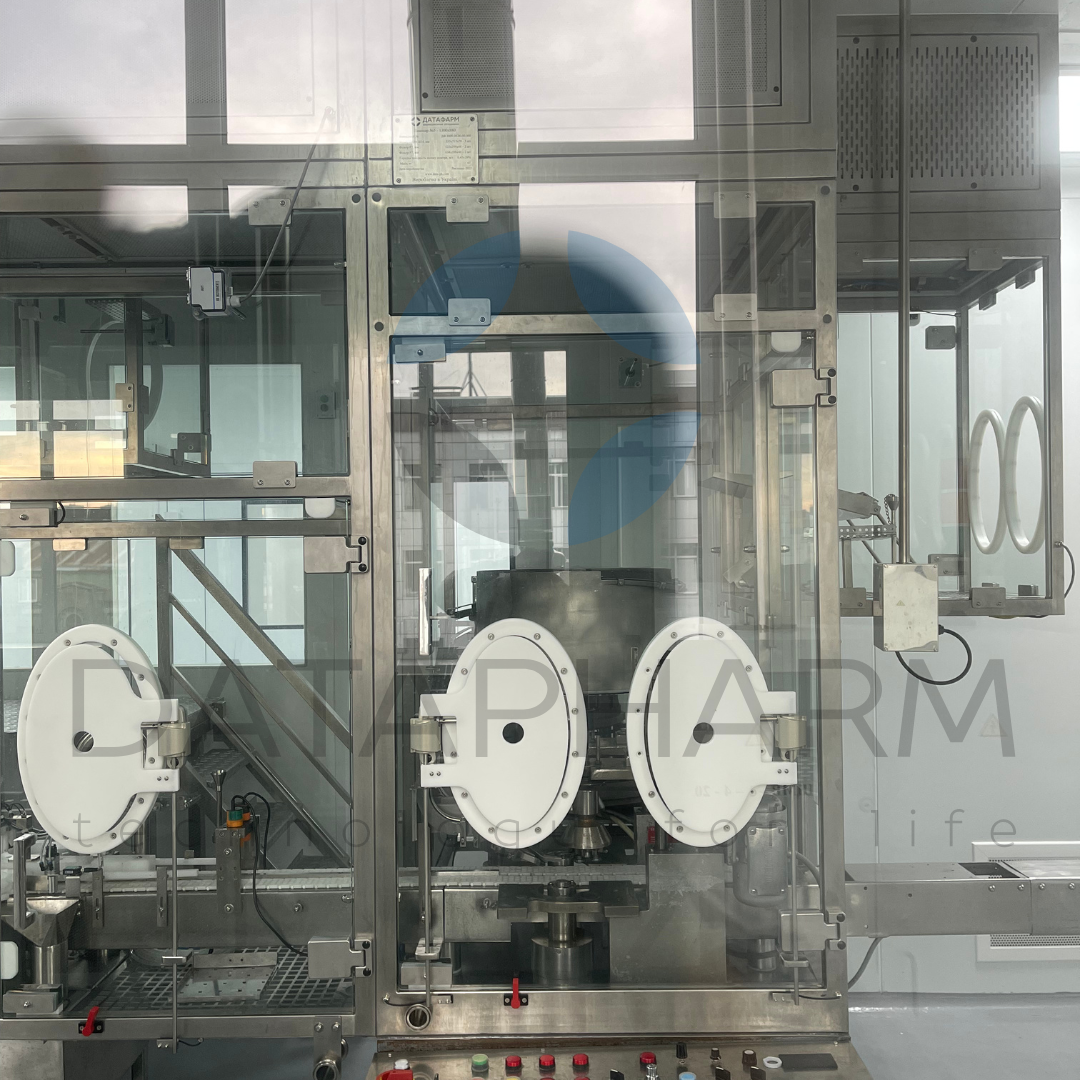

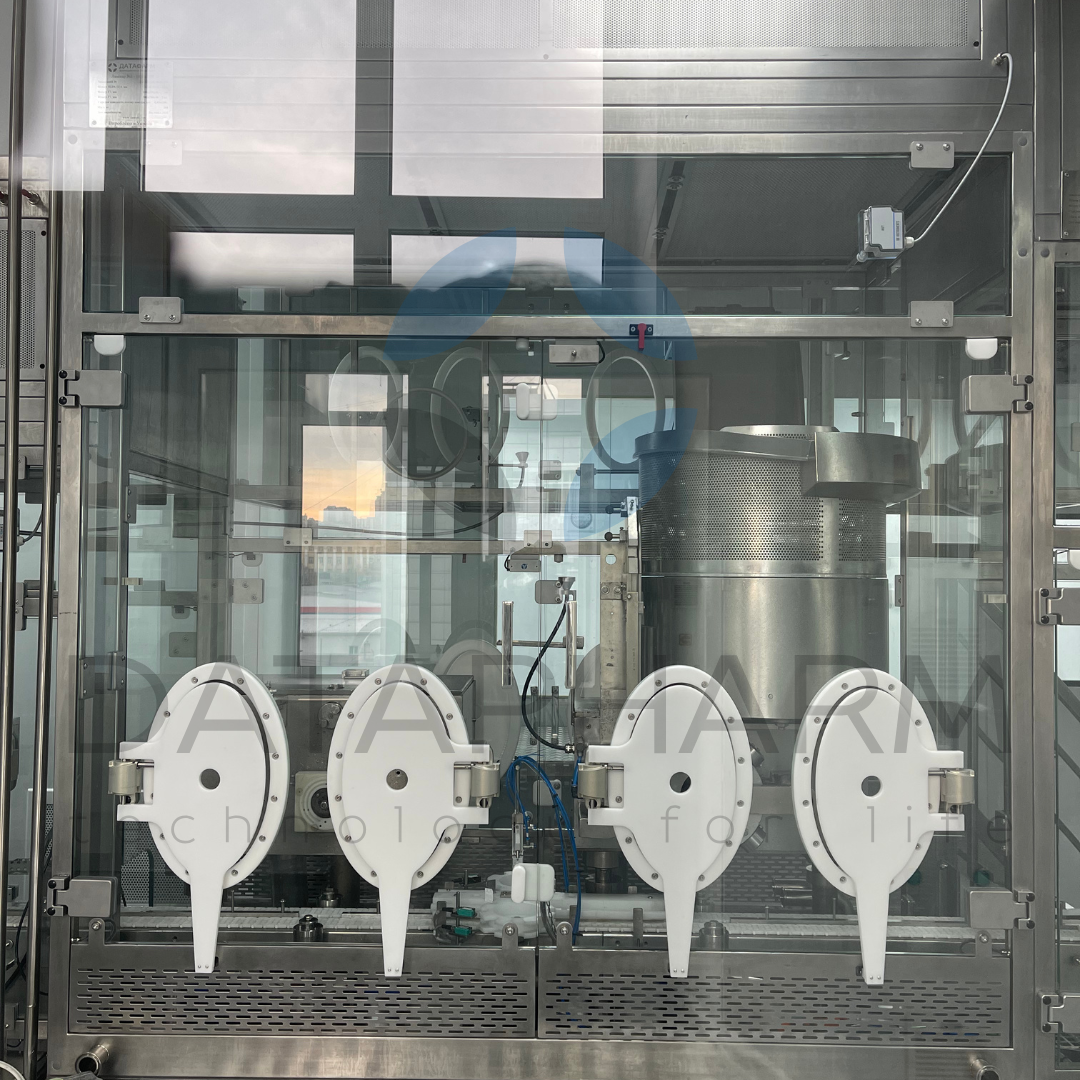

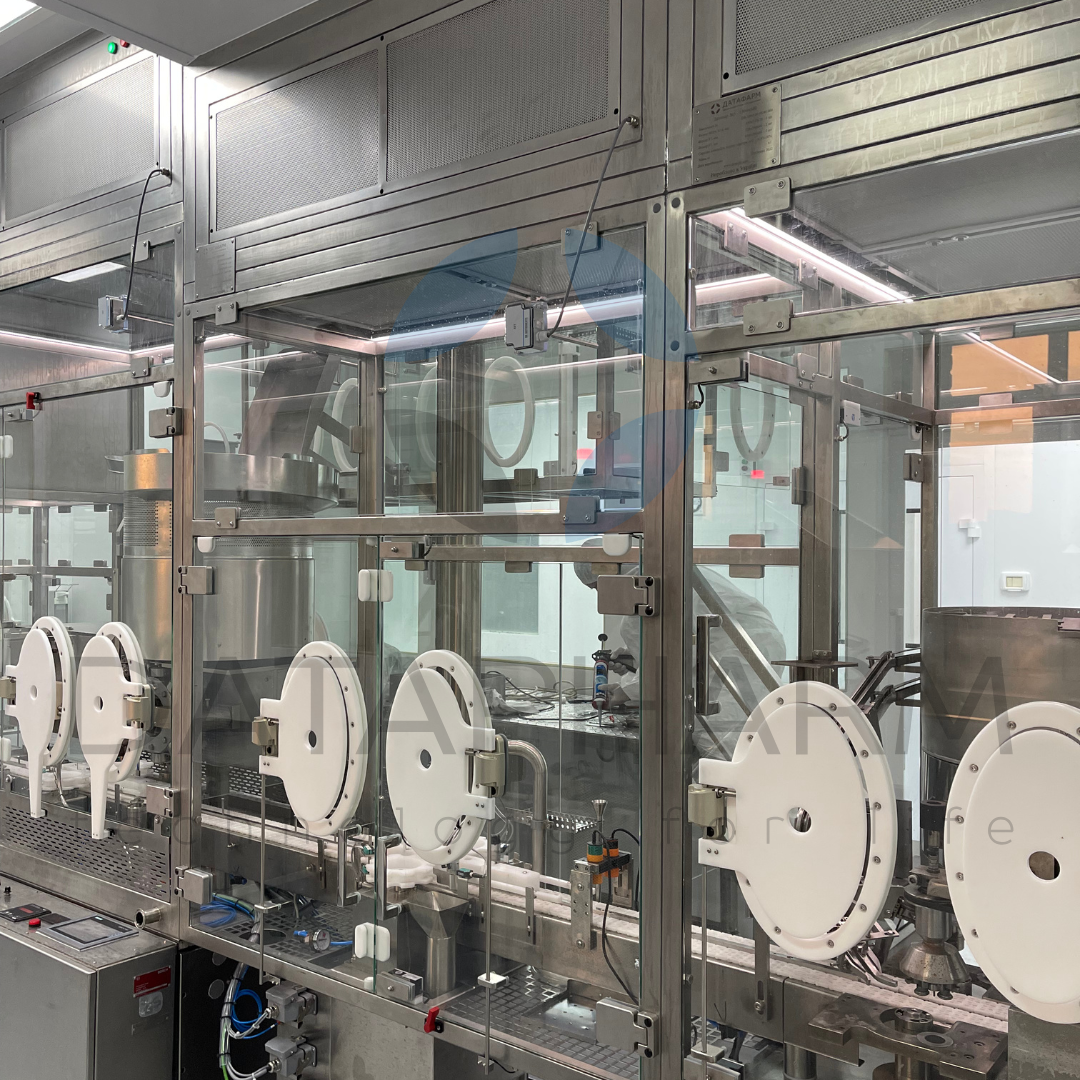

- implementation of glove ports for aseptic operations;

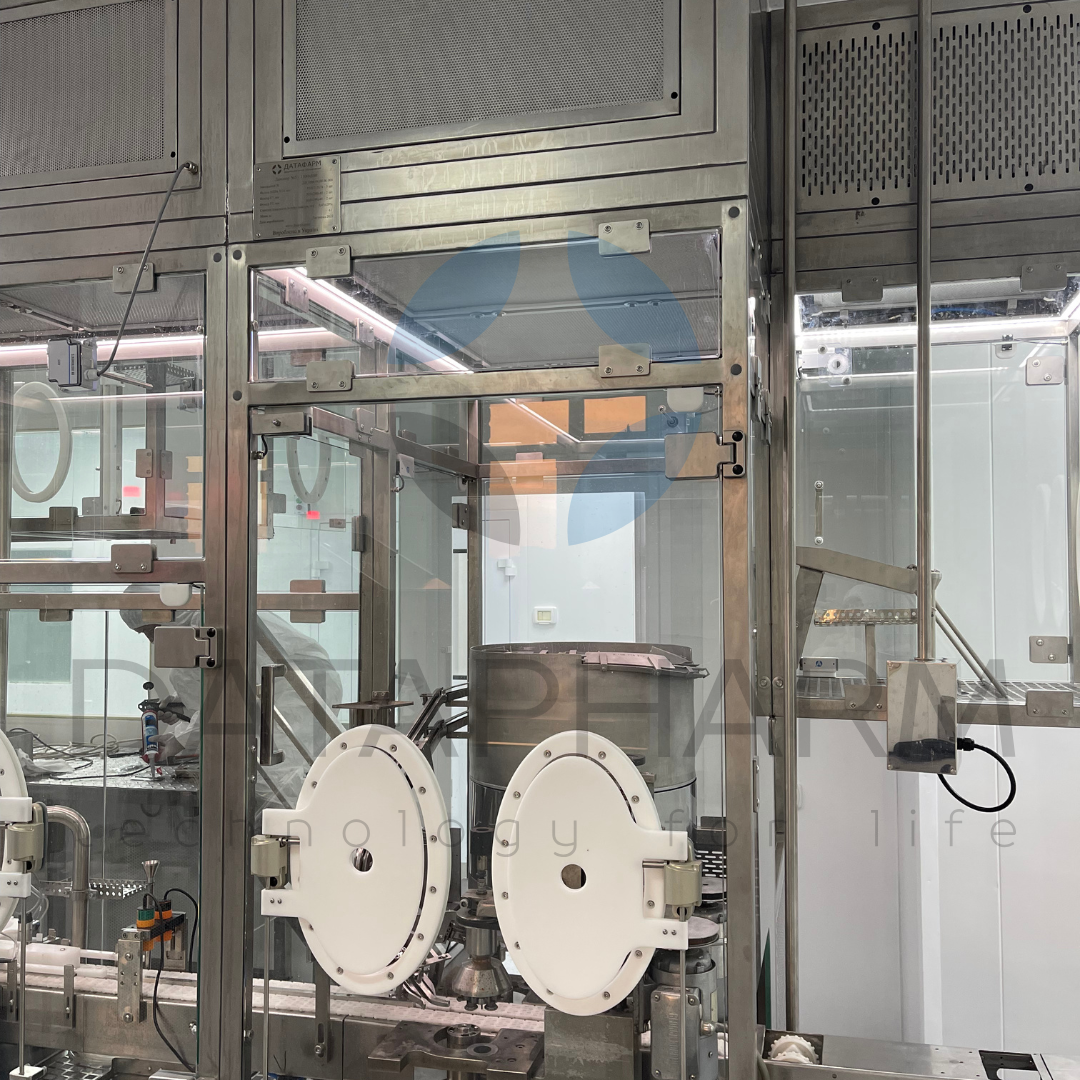

- integration of a mechanical rotary carousel for sterile material transfer;
- implementation of interlock and inter-door blocking systems.
🛡 Operational Advantages:
- reliable physical and aerodynamic isolation of the product from the operator;
- minimization of cross-contamination risks;
- formalized access control and equipment logic management;
- high repeatability of aseptic conditions;
- scalability and adaptation to specific project requirements;
- readiness for validation, inspections, and regulatory audits.
The system can be integrated into existing cleanroom facilities without interruption of key production processes.
