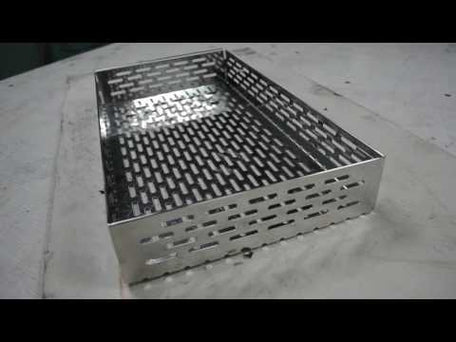

Stainless Steel Ampoule Cassettes with Longitudinal Perforation for GMP Manufacturing
The longitudinally perforated ampoule cassette is a fully welded process assembly featuring perforated side panels and base, engineered for operation under cyclic thermal and chemical loads. The slot geometry is specifically developed to provide directed distribution of sterilizing steam, heated air, and cleaning solutions, reducing turbulence zones and preventing localized temperature gradients within the load area.
Elongated slot perforation creates an optimized balance between structural rigidity and media permeability. This configuration allows uniform exposure of ampoules to sterilizing agents during autoclaving and tunnel sterilization while accelerating residual moisture removal after washing cycles. As a result, the risk of glass microfractures, stress concentration, and secondary contamination is significantly reduced.
The cassette is manufactured from AISI 304 or AISI 316L stainless steel, selected according to cleanroom classification and chemical aggressiveness of the operating environment. All welds are executed using TIG (GTAW) technology with controlled heat input to prevent distortion and maintain dimensional stability. Post-weld processing includes edge finishing and chemical passivation to restore the protective oxide layer and enhance corrosion resistance.
Internal transitions incorporate enlarged radii to eliminate particle retention areas and simplify hygienic cleaning procedures. The perforated structure promotes rapid liquid evacuation and shortened drying cycles. The design contains no enclosed cavities or inaccessible zones, fully aligning with hygienic engineering principles applied in pharmaceutical equipment manufacturing.
📐 Technical Specifications:
- Material grade: AISI 304 / AISI 316L
- Construction type: fully welded, perforated side walls and base
- Perforation type: longitudinal slot openings
- Slot geometry: defined according to project requirements
- Welding method: TIG (GTAW)
- Surface treatment: mechanical finishing, passivated
- Internal radii: enlarged (hygienic standard)
- Operating environment: ISO Class 5–8 pharmaceutical cleanrooms
- Compatibility: washing systems, sterilizers, transfer lines
- Custom configuration: available per technical specification
✅ Key Advantages:
✔ Enhanced heat transfer through longitudinal perforation
✔ Uniform distribution of sterilizing agents
✔ Accelerated moisture removal after sanitation cycles
✔ Reduced risk of mechanical and thermal stress on ampoules
✔ No dead zones or enclosed cavities
✔ Increased corrosion resistance
✔ Compliance with GMP and ISO 14644 requirements
👉 Longitudinally perforated ampoule cassettes represent an engineering-optimized solution for pharmaceutical manufacturing environments where sterilization uniformity, structural stability, and hygienic safety are critical. The slot-based perforation ensures efficient processing performance while maintaining high mechanical strength and long-term durability.
We manufacture ampoule cassettes according to individual technical parameters, taking into account ampoule diameter, loading density, and sterilization equipment specifications.
📩 Contact us to receive a commercial quotation and professional engineering consultation.
