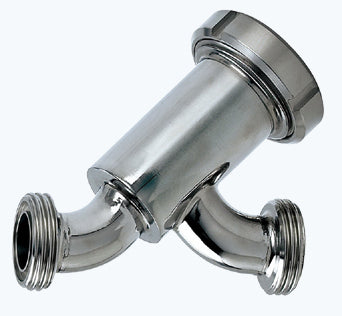

High Flow Stainless Steel Hygienic Water Treatment

High Flow Stainless Steel Water Filter

Article number:

Available for pre-order

Material

AISI 304
  • AISI 304
  • AISI 316 L
Send a request
Description

The High Flow Stainless Steel Hygienic Water Treatment Filter efficiently filters solid particles in liquids using an oblique insertion design, offering better performance than line-type filters. It features easy cleaning, low pressure loss, and operates at up to 1.0 MPa and 120°C. Made from SS304 or SS316L, it's suitable for food, beverage, dairy, pharmaceutical, and chemical industries.

Full description

Feature of the High Flow Stainless Steel Hygienic Water Treatment Filter Vessel For Liquid Filtration:

Oblique inserting type filters are used for filtering the solid particles in liquid. The inlet and outlet of oblique filter is in the same line. So it is widely used for pipeline. The filter housing and filter elements are seperate. So we can easily clean the filter element . It is better performance than line type filter.

Reasonable structure.

Good  filtration and sealing ability.

Small pressure loss.

Easy maintenance.

Max operation pressure:1.0mpa.

Max operation temperature: 120 C.

Filtering accuracy: 0.5mm, 1mm, 2mm, 3mm, 5mm, 8mm.

Max flow rate: 15T/H.

Connection end: welded, tri-clamped. Threaded, union end.

Filter element :30#, 40#, 60#, 80#,100#, 120#, 150#,  200#, 240#, 260#, 300#, 320#, 360#, 400#.

Size: 1”-4”.

Material: SS304, SS316L.

Inside Ra: 0.4um.

Outside surface Ra:0.8um.

Seal: EPDM, silicone.

Application: Food, beverage, dairy, pharmacy, chemical or any food processing industries.
