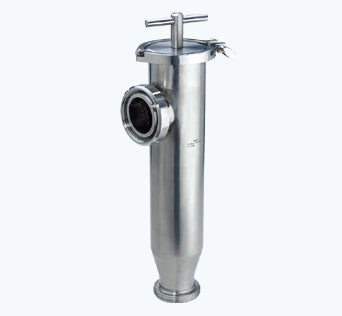

High Polishing Stainless Steel Food Grade Multi Cartridge Water Filter Housiing

High Polishing Stainless Steel Multi Cartridge Filter

Article number:

Available for pre-order

Size

DN25
  • DN25
  • DN32
  • DN40
  • DN50
  • DN65
  • DN80
  • DN100

Material

AISI 304
  • AISI 304
  • AISI 316 L

Gaskets

EPDM
  • EPDM
  • Silicone
Send a request
Description

The High Polishing Stainless Steel Multi Cartridge Water Filter Housing is designed for efficient filtration of solid particles with a 90° angle filter, offering easy disassembly for cleaning. It provides excellent filtration, low pressure loss, and easy maintenance, with a maximum operating pressure of 1.0 MPa and temperature of 120°C.

Full description

Feature of the High Polishing Stainless Steel Food Grade Multi Cartridge Water Filter Housiing:

Angle type Filters are used for filtering the solid particles in liquid. The inlet and outlet of Angle type filters are 90 degree. The filter housing and filter element are seperate. We can easily dis-assembly the filter element from housing so it is easy to clean the element.

Reasonable structure.

Good  filtration and sealing ability.

Small pressure loss.

Easy maintenance.

Max operation pressure: 1.0mpa.

Max operation temperature: 120 C.

Filtering accuracy: 0.5mm, 1mm, 2mm, 3 mm, 5 mm, 8 mm.

Max flow rate: 15T/H.

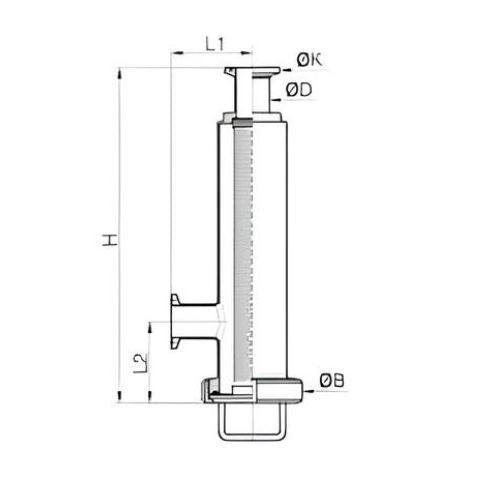

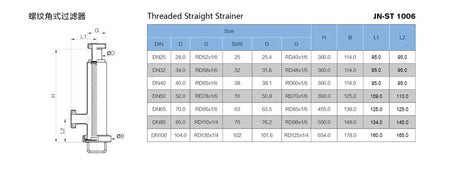

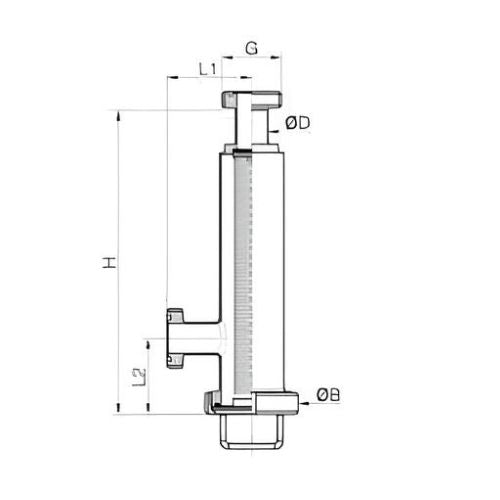

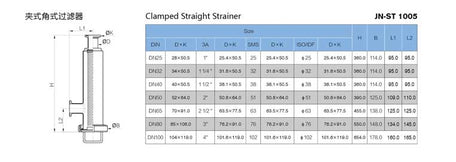

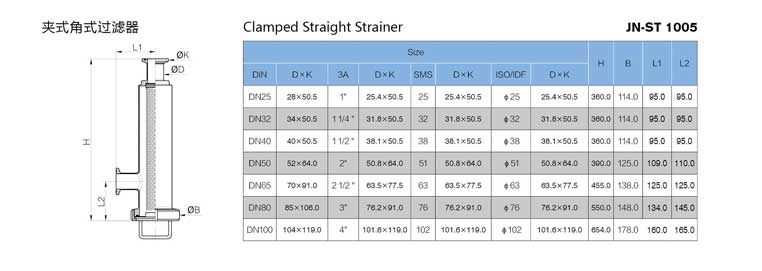

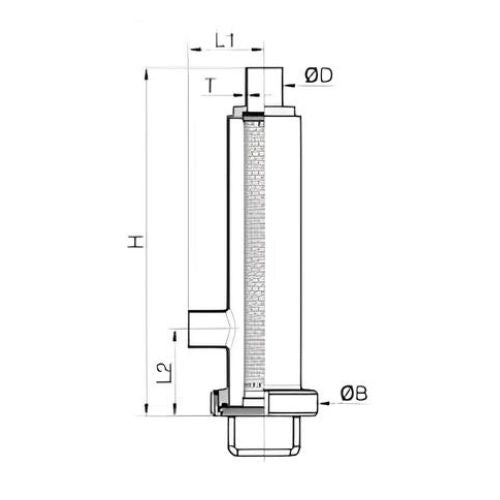

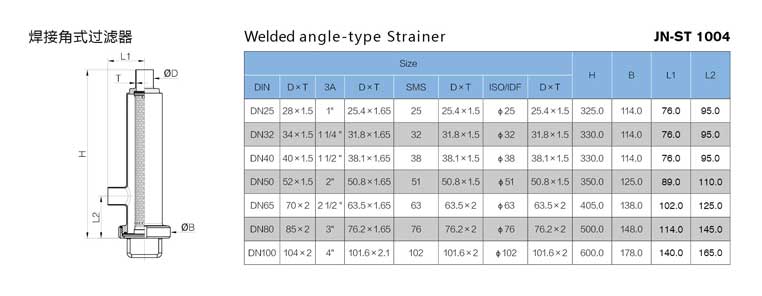

Connection end: welded, tri-clamped. Threaded, union end.

Filter element :30#, 40#, 60#, 80#,100#, 120#, 150#,  200#, 240#, 260#, 300#, 320#, 360#, 400#.

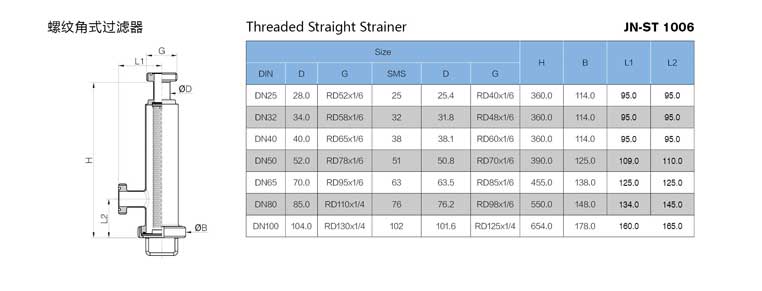

Size: 1”-4”.

Material: SS304, SS316L.

Inside Ra: 0.4um.

Outside surface Ra: 0.8um.

Seal: EPDM, silicone.

Application: Food, beverage, dairy, pharmacy, chemical or any food processing industries.
