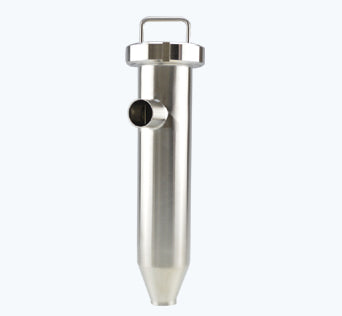

High Polishing Stainless Steel Sanitary Single Core

Polished Stainless Steel Sanitary Core

Article number:

Available for pre-order

Size

DN25
  • DN25
  • DN32
  • DN40
  • DN50
  • DN65
  • DN80
  • DN100

Material

AISI 304
  • AISI 304
  • AISI 316 L

Gaskets

EPDM
  • EPDM
  • Silicone
Send a request
Description

High Polishing Stainless Steel Sanitary Single Core filter is designed for efficient filtration of solid particles in liquids with a 90° inlet/outlet angle. It features easy disassembly for cleaning, good filtration, sealing ability, and low pressure loss. Made from SS304 or SS316L, it operates up to 1.0 MPa and 120°C, with various mesh sizes and applications in food, beverage, dairy, pharmaceutical, and chemical industries.

Size
Full description
Polished Stainless Steel Sanitary Core

Feature og the High Polishing Stainless Steel Sanitary Single Core:

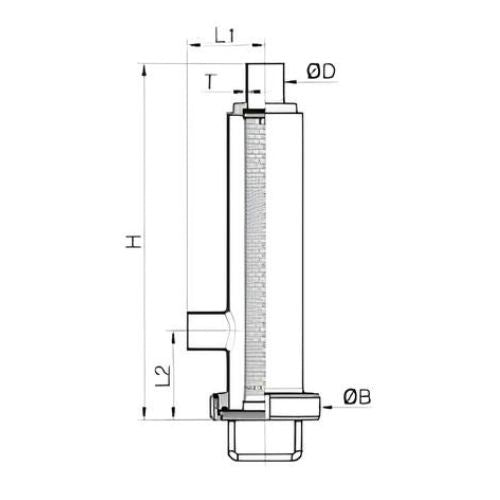

Angle type Filters are used for filtering the solid particles in liquid. The inlet and outlet of Angle type filters are 90 degree. The filter housing and filter element are seperate. We can easily dis-assembly the filter element from housing so it is easy to clean the element.

Reasonable structure.

Good  filtration and sealing ability.

Small pressure loss.

Easy maintenance.

Max operation pressure: 1.0mpa.

Max operation temperature: 120 C.

Filtering accuracy: 0.5mm, 1mm,2mm,3mm,5mm,8mm.

Max flow rate: 15T/H.

Connection end: welded, tri-clamped. Threaded, union end.

Filter element :30#, 40#, 60#, 80#,100#, 120#, 150#,  200#, 240#, 260#, 300#, 320#, 360#, 400#.

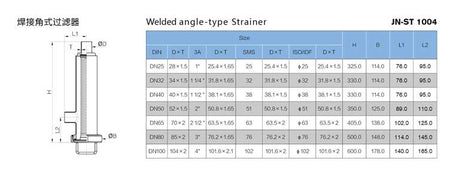

Size: 1”-4”.

Material: SS304, SS316L.

Inside Ra: 0.4um  .

Outside surface Ra:0.8um.

Seal: EPDM, silicone.

Application: Food, beverage, dairy, pharmacy, chemical or any food processing industries.
