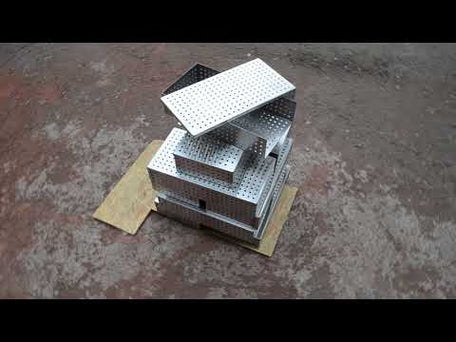

Perforated Stainless Steel Ampoule Trays

Pharmaceutical ampoule trays are used to organize technological processes involved in the production of sterile medicinal products. The round perforations allow unrestricted circulation of steam, hot air, water, and disinfecting solutions, which is particularly important during washing, depyrogenation, and sterilization procedures.

The design enables ampoules of various sizes and capacities to be positioned securely and accurately. This prevents contact between glass containers and significantly reduces the risk of breakage during handling and processing.

The trays are manufactured according to customer-specific dimensions and can be customized to accommodate particular ampoule formats, processing equipment requirements, and sterilization chamber specifications. Upon request, the trays may be supplied with lids, guide elements, identification markings, and batch traceability features.

Manufacturing utilizes AISI 304 or AISI 316L stainless steel grades, providing excellent resistance to moisture, aggressive cleaning agents, disinfectants, and repeated sterilization cycles.

Smooth surfaces and the absence of hard-to-clean areas facilitate effective cleaning and ensure compliance with pharmaceutical hygiene and sanitation requirements.

✅ Advantages:

• Secure positioning of ampoules in individual compartments.
• Reduced risk of glass container damage.
• Unrestricted circulation of sterilizing media through the perforated structure.
• Manufactured from AISI 304 or AISI 316L stainless steel.
• Compatible with autoclaves and pharmaceutical washing machines.
• Excellent corrosion and chemical resistance.
• Available for virtually any ampoule size and format.
• Easy cleaning and sanitation.
• Long service life.
• GMP-compliant design.

📐 Technical Specifications:

• Product type: Ampoule tray with round perforations
• Material: AISI 304 / AISI 316L stainless steel
• Construction: Perforated design
• Perforation shape: Round holes
• Surface finish: Brushed or polished
• Capacity: According to customer specifications

Optional features:

1. Removable lid;
2. Retaining and locking elements;
3. Laser marking;
4. Batch identification;
5. Pharmaceutical-grade polishing;
6. Custom dimensions for specific ampoule formats.

📌 Applications

Ampoule trays are widely used in:

1. Pharmaceutical manufacturing facilities;
2. Injectable drug production lines;
3. Ampoule washing and sterilization departments;
4. Filling and sealing lines;
5. Biotechnology facilities;
6. Quality control laboratories;
7. Research and development centers.

👌 DATAPHARM designs and manufactures ampoule trays according to individual customer requirements. Production is carried out with consideration of glass container dimensions, process-specific requirements, and GMP standards. Each tray undergoes quality control and ensures safe ampoule handling throughout the entire production cycle—from preparation and sterilization to transportation and storage of finished products.
