SS304 Sanitary Pneumatic T30 Shut Off Piston Valve

SS304 Sanitary Pneumatic T30 Shut Off Piston Valve

Article number:

Available for pre-order

Size

1"
  • 1"
  • 1.25"
  • 1.5"
  • 2"
  • 2.5"
  • 3"
  • 3.5"
  • 4"

Material

AISI 304
  • AISI 304
  • AISI 316 L

Gaskets

EPDM
  • EPDM
  • Silicone
Send a request
Description

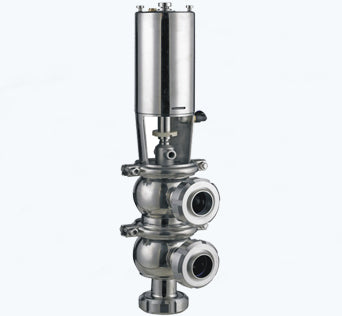

The SS304 Sanitary High Purity Pneumatic T30 Type Shut Off Piston Valve features an open support bracket for easy shaft seal inspection and a spherical valve body for smooth fluidity. It is easy to clean and maintain, with a temperature range of -10°C to 120°C and a pressure capacity of 10 bar. Suitable for industries like food, beverage, dairy, and pharmaceuticals, it comes in various sizes and materials such as SUS304 and SUS316L.

Full description

Features of the SS304 Sanitary High Purity Pneumatic T30 Type Shut Off  Piston Valve:

Open support bracket which separates the actuator and valve body, the design makes shaft seal checking easily.

Spherical valve body assures ideal fluidity .

Dealing material softly.

Ultra-thick spherical design avoid the deshape caused from heating stress .

All the contacting parts can be cleaned together or alone.

Temperature: -10 degree to 120 degree.

High precise casting body.

Pressure: 10bar.

Working mode: Manual, pneumatic type.

Gasket: EPDM, silicone.

Easy cleaning , easy maintenance.

Valve body type: 20, 30, 21, 22, 31, 32 type.

Connection mode: Clamped, welded, etc.

Specification: 1"-4", DN25-DN100.

Material quality: SUS304, SUS316L.

Surface: Mirror polishing, or sand blasting type

inner surface: 0.4Ra
Outer surface : 0.8Ra

Application: Food, beverage, dairy, pharmacy, chemical or any food processing industries.
