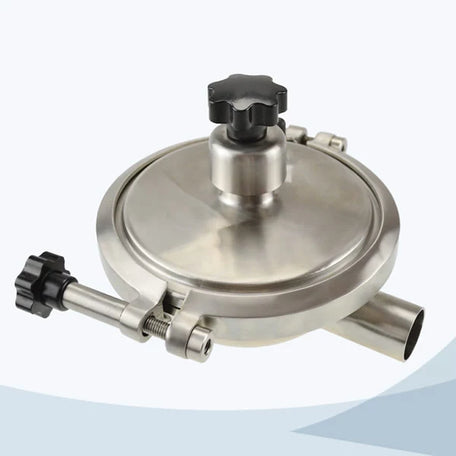

CPM Valve for Food Equipment

CPM Valve for Food Equipment

Article number:

Available for pre-order

Size

25
  • 25
  • 38
  • 51
  • 63

Material

AISI 304
  • AISI 304
  • AISI 316 L

Gaskets

EPDM
  • EPDM
  • PTFE
Send a request
Description

The Stainless Steel Food Equipment Constant Pressure Modulating (CPM) Valve offers adjustable pressure, easy cleaning, and simple maintenance. Made from high-quality materials like SS304 or SS316L, it operates in temperatures from -10°C to 95°C and features a welded or clamped connection. Ideal for food, beverage, dairy, and pharmaceutical industries, it supports flow rates of 2-23 m³/h.

Full description

Features of the Stainless Steel Food Equipment Constant Pressure Modulating CPM Valve:

Ideal fluidity

Easy cleanability

Simple operation , easy repairment and maintainance

The pressure is adjustable

Temperature range: -10degree~~95degree

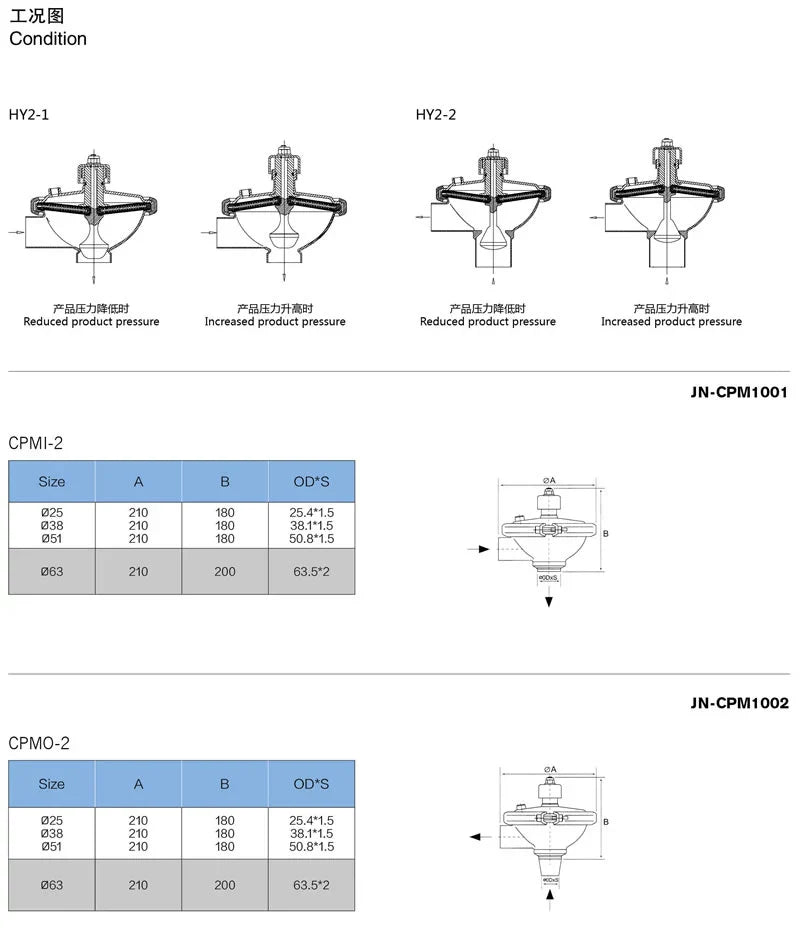

Two type: CPMI-2 or CPMO-2 type

Valve body is made from 12mm steel plate.

Gasket is imported material EPDM/PTFE, which is very very good quality.

Max. Pressure: 10bar

Min. Pressure: 0Bar

Flow Kv, fully open,(p=1ar): Approx 23m3/h

Flow Kv, low capacity (p=1bar): Approx 2m3/h

Connection end: welded,clamped

Size: 1"-2.5", DN25-DN65

Material: SS304, SS316L

Surface finish: Sand blasting type

Application: Food, beverage, dairy, pharmacy, chemical or any food processing industries.
