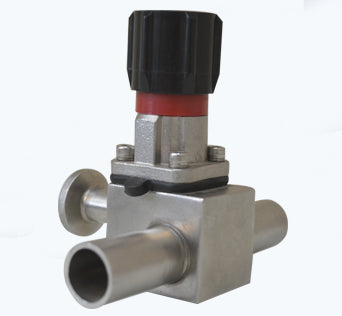

Food Grade Manual Membrane Valve

Food Grade Manual Membrane Valve

Article number:

Available for pre-order

Size

DN15
  • DN15
  • DN20
  • DN25
  • DN32
  • DN40
  • DN50
  • DN65

Material

AISI 304
  • AISI 304
  • AISI 316 L

Gasket

Silicone
  • Silicone
  • EPDM
  • EPDM+PTFE integrated membrane
  • EPDM/PTFE seperate membrane
Send a request
Description

The Food Grade High Performance Manual Membrane Valve features a compact, fully-draining structure with no retention angle for easy sterilization and reliable installation. Made from SS316L for liquid-contacting parts and SS304 for non-contacting parts, it supports various sizes and gaskets.



Size
Full description
Food Grade Manual Membrane Valve

Features of the Food Grade High Performance Manual Membrane Valve:

Compact structure, fullly-draining itself, no rentention angle. Forged valve body of compact intercry stalline structure, sterilize rapidly and thoroughly
Intergrated machining from advanced equipments, assures safety and reliable in installation.

Valve body which contacts with liquid is made of SS316L. The non-contacting part is made of SS304 material.

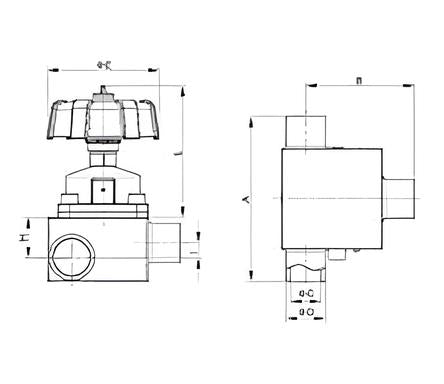

Valve body type: Two way mirror type, two way sand blasting type, three way, U type, T type.

Gasket: Silicone, EPDM, EPDM+PTFE integrated membrane , EPDM/PTFE seperate membrane
Integrated membrane.

Max. Pressure: 10bar.

Max. Temperature: -10  ~ +120 degree.

Material quality: SS 316L.

Inside surface finish: Ra0.4.

Standard: DIN, SMS.

Connection: welded, clamped, flanged.

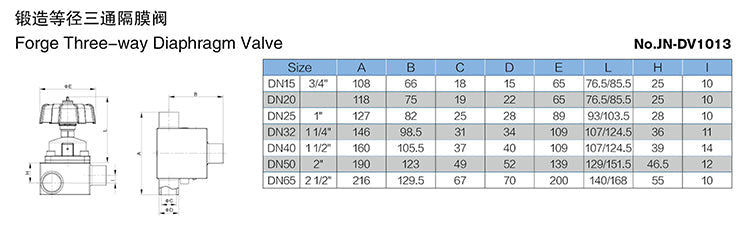

Size: Mini type: DN6, DN8, DN10, Medium type: DN15-DN50, Large type: DN65, DN80, DN100.

Applications: Widely used for pharmaceutical and chemical industries.
