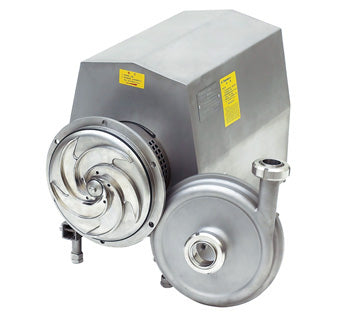

Features of the Mechanical Suction Pump:

Our centrifugal pump is a sanitary pump that meets the highest sanitary requirements for use in the food-processing and pharmaceutical, dairy, milk, bear industries.

Some of its uses include processes in the brewing, dairy and beverage industries, and with the appropriate options it can also be used in complex applications such as evaporators, concentrators, distillation towers, decanting of syrups and purified-water loops in the pharmaceutical industry.

Housed inside the casing, the impeller rotates in conjunction with the pump shaft .With this arrangement, the impeller blades convey energy to the fluid in the form of kinetic energy and pressure energy.

Due to the special design of the pump casing and impeller, the BOGP centrifugal pump has much higher pressure than standard centrifugal pump.

Characteristics of the Mechanical Suction Pump:

High efficiency

Low maintenance

Transfer the liquid softly

Complete CIP ability

Low NPSH (net positive suction head)

Long service seal

Reliability and durability

Easy to replace the mechanical seals

The open-style impeller ensures the best cleanability and outstanding Sanitary performance.

Motor: 0.55–22 kW

Impeller: Open type

Rotational speed: 2900 rpm (50Hz) or 3600 rpm (60Hz).

Flow: 1.5–120 m³/h.

Head: 0–75 m.

Max pressure: 7 bar.

Max temperature: 120°C / 248°F.

Connection types: Clamp, Thread, Flange, Welding.

Standards: DIN, SMS, 3A, ISO, IDF, RJT.

We offer both open and closed impeller types.

Additionally, movable and explosion-proof types can be designed according to customer requirements.

Design and Standard:

Designed based on 3A hygienic standard.

Adjustable stainless steel legs.

Mechanical Seals:

Single mechanical seal.

Double mechanical seal.
