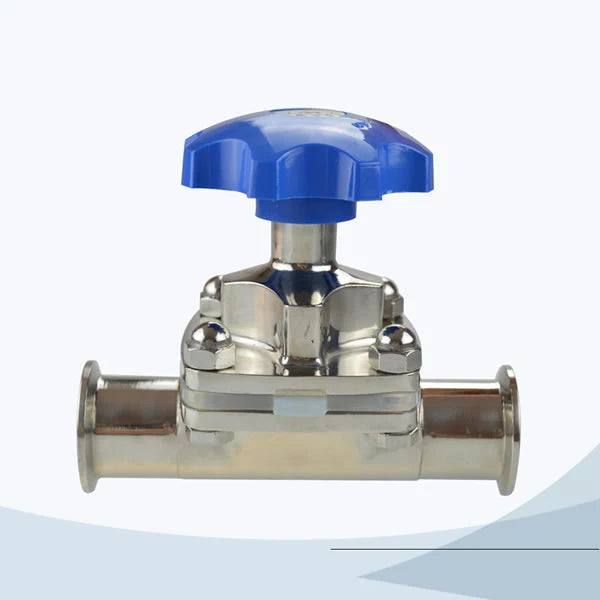

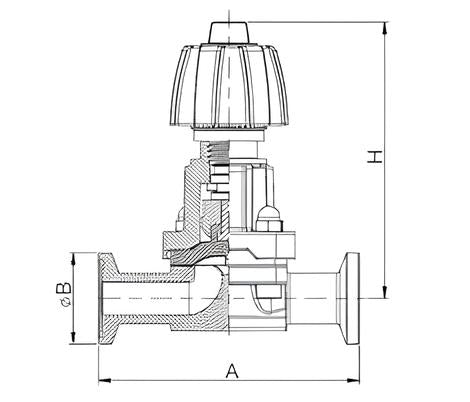

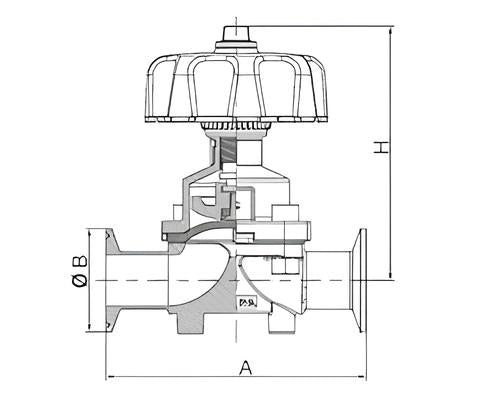

Hygienic Clamped Diaphragm Valve

Hygienic Clamped Diaphragm Valve

Article number: JN-DV 1008

Available for pre-order

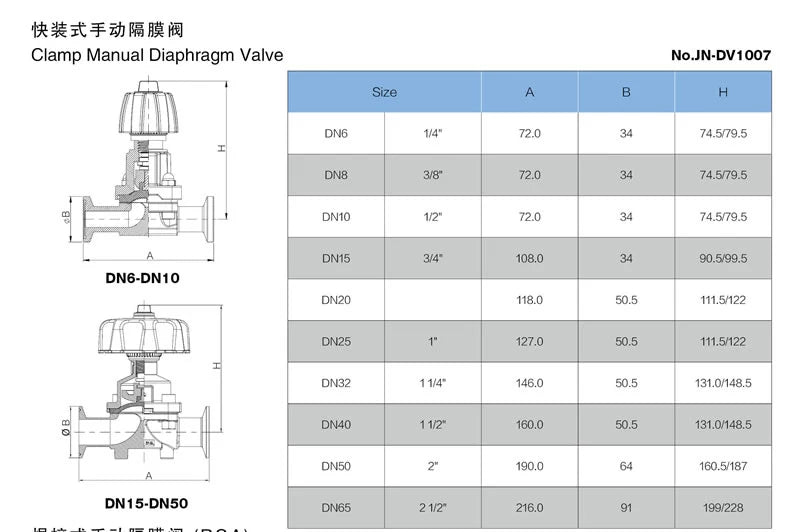

Size

DN6
  • DN6
  • DN8
  • DN10
  • DN15
  • DN20
  • DN25
  • DN32
  • DN40
  • DN50
  • DN65

Material

AISI 316 L
  • AISI 316 L

Gasket

Silicone
  • Silicone
  • EPDM
  • EPDM+PTFE integrated membrane
  • EPDM/PTFE seperate membrane
Send a request
Description

The Hygienic Manual Type Clamped Diaphragm Valve features a compact, fully-draining structure with no retention angle, ensuring efficient sterilization. Made with SS316L for the liquid-contacting parts and SS304 for non-contacting parts, it offers high reliability and easy installation. Widely used in pharmaceutical and chemical industries, it supports various sizes, gaskets, and connection types.

Full description

Features of the Hygienic manual type clamped diaphragm valve:

Compact structure, fullly-draining itself, no rentention angle .forged valve body of compact intercry stalline structure, sterilize rapidly and thoroughly Intergrated machining from advanced equipments, assures safety and reliable in installation

Valve body which contacts with liquid is made of SS316L. The non-contacting part is made of SS304 material.

Valve body type: Two way mirror type, two way sand blasting type, three way, U type, T type

Gasket: Silicone, EPDM, EPDM+PTFE integrated membrane , EPDM/PTFE seperate membrane

Integrated membrane

Max. Pressure: 10bar

Max. Temperature: -10 ~ +120 degree

Material quality: SS 316L

Inside surface finish: Ra0.4

Standard: DIN, SMS

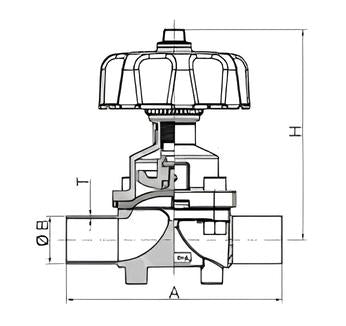

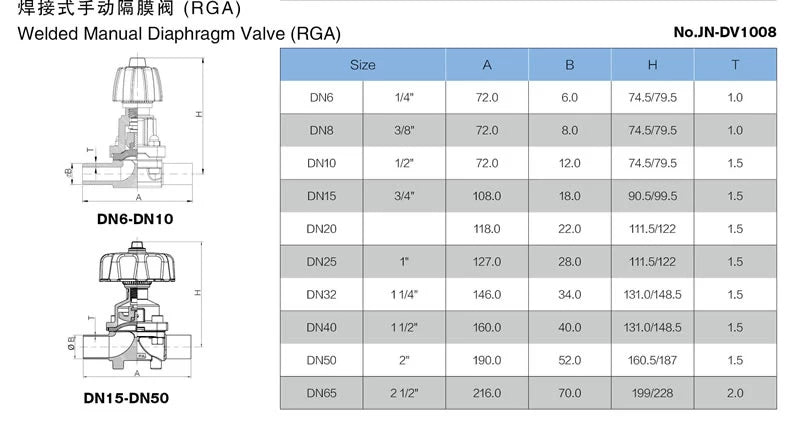

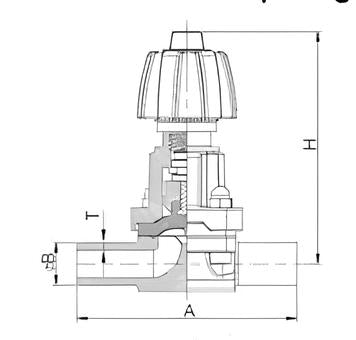

Connection: welded, clamped, flanged.

Applications: Widely used for pharmaceutical and chemical industries.
