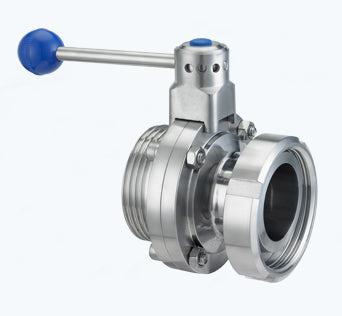

Hygienic Quick Release Butterfly Valve

Hygienic Quick Release Butterfly Valve

Article number: JN-BV 1015

Available for pre-order

Size

DN25-DN40
  • DN25-DN40
  • DN50-DN100
  • DN125-DN150

Material

AISI 304
  • AISI 304
  • AISI 316 L

Gasket

EPDM
  • EPDM
  • Silicone
  • Viton
Send a request
Description

The Hygienic Quick Release Manual Direct Way Butterfly Control Valve is designed for high acid, alkali, and temperature resistance, with a temperature range of -10°C to 120°C. It features a forged body and disc, FDA-approved gaskets, and a compact design for easy maintenance and high torque. Commonly used in food, beverage, dairy, pharmaceutical, and chemical industries, it offers various connection options and reliable performance.

Full description

Features and characteristics Hygienic Quick Release Manual Direct Way Butterfly Control Valve:

Better acid proof, alkali proof and high temperature

Temperature: -10degree~~120 degree

More than thirty thousand safety test

Outside surface finish: Ra 1.2

Special gasket design,  fluid free of residue

Valve disc is made from forging.

Valve body is made from forging.

Manual handle: pull handle, plastic gripper handle or stainless steel gripper handle

Gasket: EPDM, silicone or Viton

All gaskets are FDA approved

Max. Pressure: 16BAR for welding connections; 10BAR for other connections

Min. Pressure:0.2BAR

Compact design, easy maintenance and high torque

Connection end: Weld, tri-clamped, union, flange,male threading, female threading

Standard: DIN, SMS, ISO, 3A, IDF

Material: SS304, SS316L

Inside surface finish: Ra0.4

Size: DN20-DN300 ,  3/4"-10"

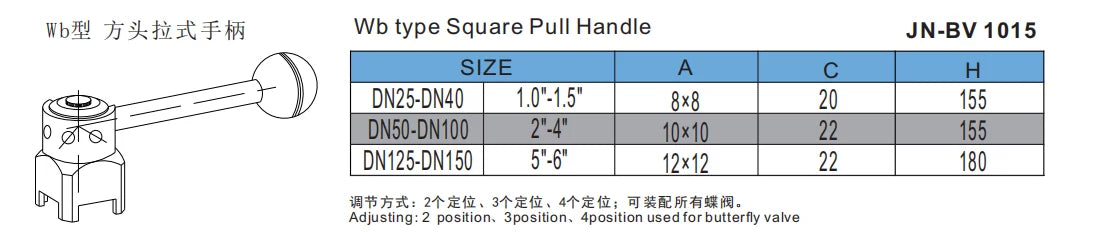

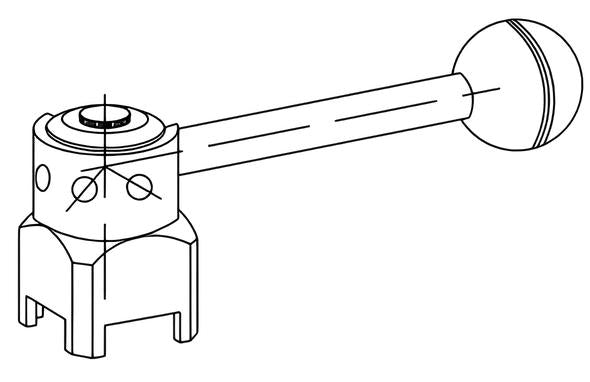

Standard : pull handle normally with 3position ( 4position can be customerized )

 Gripper handle normally with 13 position.

Application: Food, beverage, dairy, pharmacy, chemical or any food processing industries.
