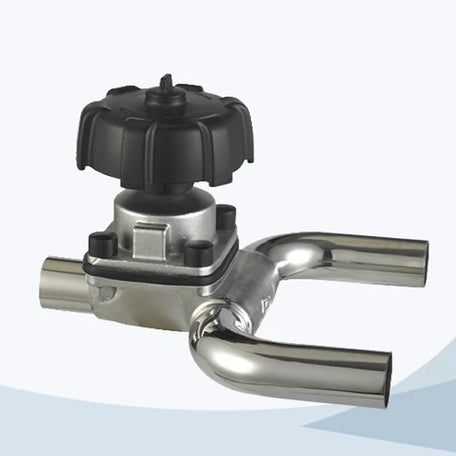

Stainless Steel Hygienic Rade U Type Manual Diaphragm Valve

Stainless Steel Hygienic Rade U Type Manual Diaphragm Valve

Article number:

Available for pre-order

Material

Stainless steel
  • Stainless steel
Send a request
Description

Features of the  Hygienic Rade U Type Manual Diaphragm Valve:

Compact structure, fullly-draining itself, no rentention angle .forged valve body of compact intercry stalline structure, sterilize rapidly and thoroughly Intergrated machining from advanced equipments, assures safety and reliable in installation

Valve body which contacts with liquid is made of SS316L. The non-contacting part is made of SS304 material.

  • Valve body type: Two way mirror type, two way sand blasting type, three way, U type, T type
  • Gasket: Silicone, EPDM, EPDM+PTFE integrated membrane , EPDM/PTFE seperate membrane
  • Integrated membrane
  • Max. Pressure: 10bar
  • Max. Temperature: -10 ~ +120 degree
  • Material quality: SS 316L
  • Inside surface finish: Ra0.4
  • Standard: DIN, SMS
  • Connection: welded, clamped, flanged,

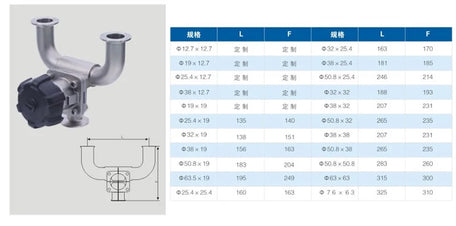

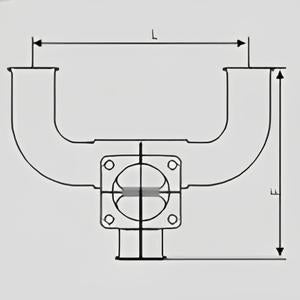

  • Size:
    • Mini type: DN6, DN8, DN10,
    • Medium type: DN15-DN50
    • Large type: DN65, DN80, DN100
  • Applications: Widely used for pharmaceutical and chemical industries.
