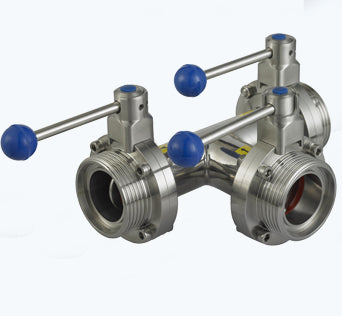

Hygienic Three-Way Butterfly Valve

Hygienic Three-Way Butterfly Valve

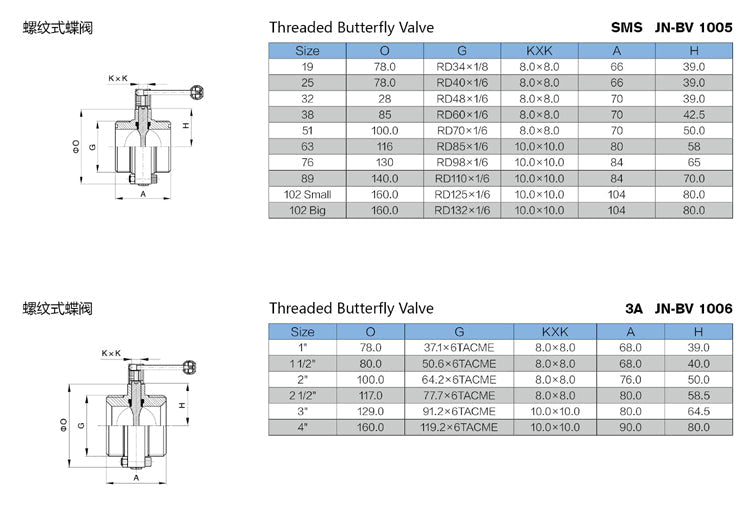

Article number: JN-BV 1005

Available for pre-order

Size

19
  • 19
  • 25
  • 32
  • 38
  • 51
  • 63
  • 76
  • 89
  • 102 Big
  • 102 Small

Material

AISI 304
  • AISI 304
  • AISI 316 L

Gasket

EPDM
  • EPDM
  • Silicone
  • Viton
Send a request
Description

The Hygienic Three-Way Butterfly Valve offers excellent acid and alkali resistance with a temperature range of -10°C to 120°C. It features a forged valve disc and body, FDA-approved gaskets (EPDM, silicone, or Viton), and a compact design for easy maintenance. It is widely used in food, beverage, dairy, pharmaceutical, and chemical industries, with various connection options and sizes from DN20-DN300.

Full description

Features of the Hygienic Three-Way Butterfly Valve:

Better acid proof, alkali proof and high temperature

Temperature: -10degree~~120 degree

More than thirty thousand safety test

Outside surface finish: Ra 1.2

Special gasket design,  fluid free of residue

Valve disc is made from forging.

Valve body is made from forging.

Manual handle: pull handle, plastic gripper handle or stainless steel gripper handle

Gasket: EPDM, silicone or Viton

All gaskets are FDA approved

Max. Pressure: 16BAR for welding connections; 10BAR for other connections

Min. Pressure:0.2BAR

Compact design, easy maintenance and high torque

Connection end: Weld, tri-clamped, union, flange,male threading, female threading

Standard: DIN, SMS, ISO, 3A, IDF

Material: SS304, SS316L

Inside surface finish: Ra0.4

Size: DN20-DN300 ,  3/4"-10"

Standard : pull handle normally with 3position ( 4position can be customerized )

 Gripper handle normally with 13 position.

Application: Food, beverage, dairy, pharmacy, chemical or any food processing industries.
