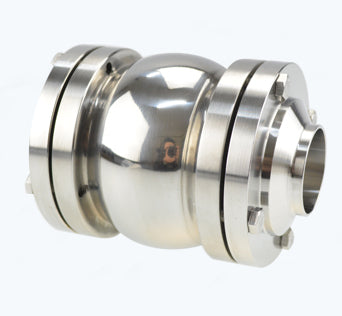

Hygienic Weld Ball Type Back

Hygienic Weld Ball Type Back

Article number:

Available for pre-order

Size

DN25
  • DN25
  • DN32
  • DN40
  • DN50
  • DN65
  • DN80
  • DN100

Material

AISI 304
  • AISI 304
  • AISI 316 L

Gaskets

EPDM
  • EPDM
  • Silicone
Send a request
Description

The Hygienic Weld Ball Type Back Pressure Check Valve is designed for vertical pipelines with a minimum pressure difference of 0.08 bar to open, and flow direction from bottom to top. Made from SS304 or SS316L with FDA-approved EPDM or silicone gaskets, it operates at temperatures from -10°C to 120°C and has a compact design for easy maintenance. This valve is ideal for food, beverage, dairy, pharmaceutical, and chemical industries, with a surface finish of Ra0.4.

Size
Full description
Hygienic Weld Ball Type Back

Features of the Hygienic  Weld Ball Type Back Pressure Check Valve:

The valves can be installed in vertical pipeline only.

The min. pressure difference is 0.08bar to open the valve.

Flow direction is from the bottom to the top side only.

Asept, Non retention dead angle, easy to clean, easy to maintenance.

Operating temperature:-10 degree to 120 degree.

Valve disc is made from casting.

Valve body is made from forging.

Valve body type: clamped or nut type.

Gasket: EPDM, silicone.

All gaskets are FDA approved.

Max. Pressure: 10BAR.

Min. Pressure: 0.2BAR.

Compact design, easy maintenance and high torque.

Connection end: Weld, tri-clamped, male threading.

Standard: DIN, SMS, 3A.

Material: SS304, SS316L.

Inside surface finish: Ra0.4.

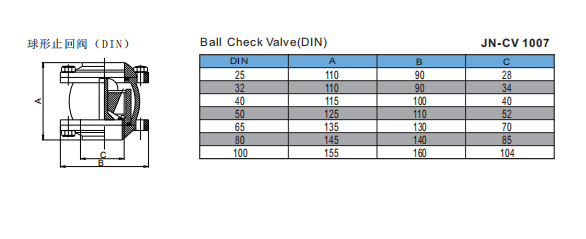

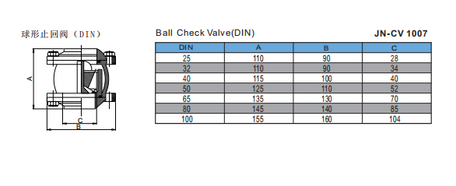

Size: DN20-DN100 ,  3/4"-4"

Application: Food, beverage, dairy, pharmacy, chemical or any food processing industries.
