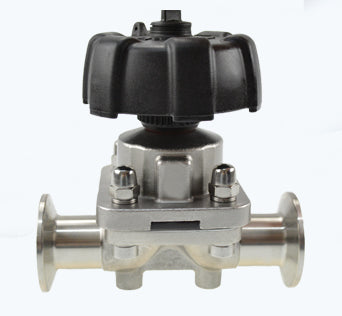

Sanitary Clamped Two-Way Diaphragm Valve

Sanitary Clamped Two-Way Diaphragm Valve

Article number:

Available for pre-order

Size

DN6
  • DN6
  • DN8
  • DN10
  • DN15
  • DN20
  • DN25
  • DN32
  • DN40
  • DN50
  • DN65

Material

AISI 304
  • AISI 304
  • AISI 316 L

Gasket

Silicone
  • Silicone
  • EPDM
  • EPDM+PTFE integrated membrane
  • EPDM/PTFE seperate membrane
Send a request
Description

The Sanitary Clamped DIN Two-Way Diaphragm Valve features an aseptic design, ideal for high-flow, corrosive, and high-viscosity fluids. Made with SS316L for liquid-contacting parts and SS304 for non-contacting parts, it ensures easy disassembly, cleaning, and maintenance. Commonly used in pharmaceutical and chemical industries, it offers various sizes, gaskets, and connection types.

Size
Full description
Sanitary Clamped Two-Way Diaphragm Valve

Features of the Sanitary Clamped DIN Two-Way Diaphragm Valve:

Aseptic design.

The valves are suitable for applying in high flow rate, high corrosivity, high viscosity fluid.

Mooth contacting surface, non retention dead angle easy disassembly, easy maintainenance, easy to clean, CIP. Unique diaphragm type actuator which prolong the diaphragm service life effectively.

Valve body which contacts with liquid is made of SS316L. The non-contacting part is made of SS304 material.

Valve body type: Two way mirror type, two way sand blasting type, three way, U type, T type.

Gasket: Silicone, EPDM, EPDM+PTFE integrated membrane , EPDM/PTFE seperate membrane.

Integrated membrane.

Max. Pressure: 10bar.

Max. Temperature: -10  ~ +120 degree.

Material quality: SS 316L.

Inside surface finish: Ra0.4.

Standard: DIN, SMS.

Connection: welded, clamped, flanged.

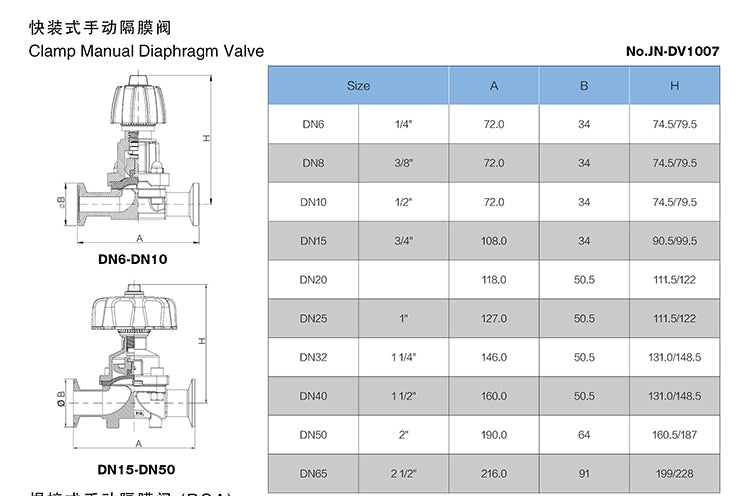

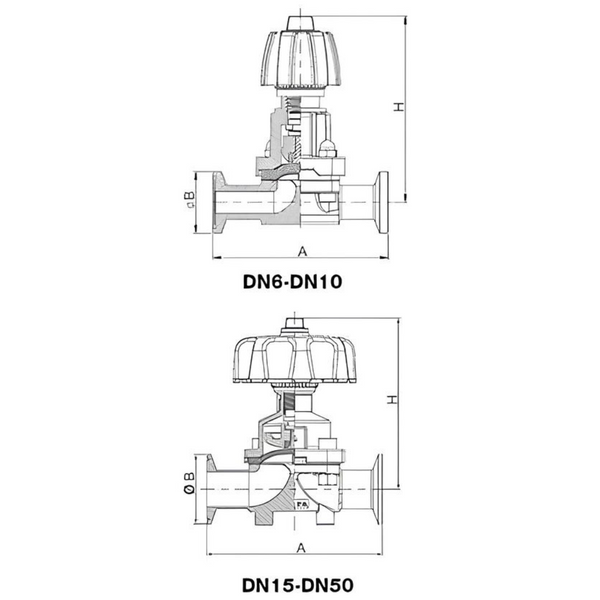

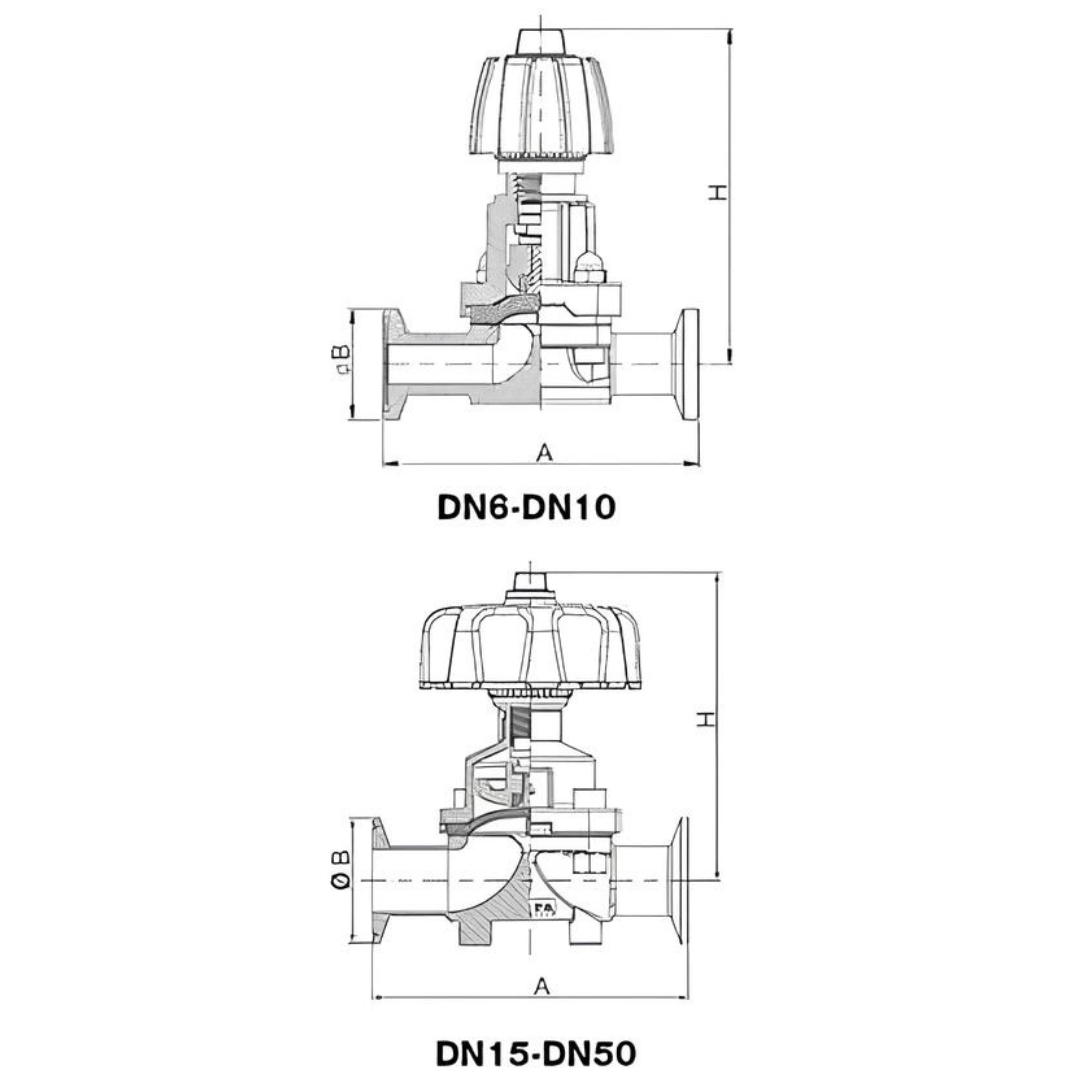

Size: Mini type: DN6, DN8, DN10, Medium type: DN15-DN50, Large type: DN65, DN80, DN100.

Applications: Widely used for pharmaceutical and chemical industries.
