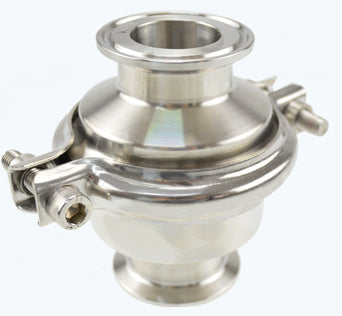

Clamped Spring Type Non Return Valve

Clamped Spring Type Non Return Valve

Article number:

Available for pre-order

Size

19
  • 19
  • 25
  • 32
  • 38
  • 51
  • 63
  • 76
  • 89
  • 102

Material

AISI 304
  • AISI 304
  • AISI 316 L

Gaskets

EPDM
  • EPDM
  • Silicone
Send a request
Description

The Stainless Steel Sanitary Clamped Spring Type Non-Return Valve is designed for vertical pipelines and operates with a minimum pressure difference of 0.08 bar. It features a compact design, easy maintenance, and FDA-approved gaskets made from EPDM or silicone. Suitable for applications in food, beverage, dairy, pharmacy, and chemical industries, it is made from SS304 or SS316L with an inside surface finish of Ra0.4.

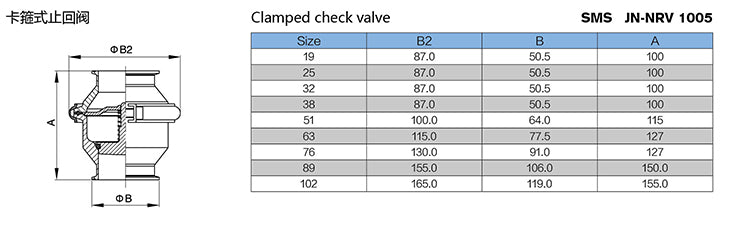

Size
Full description

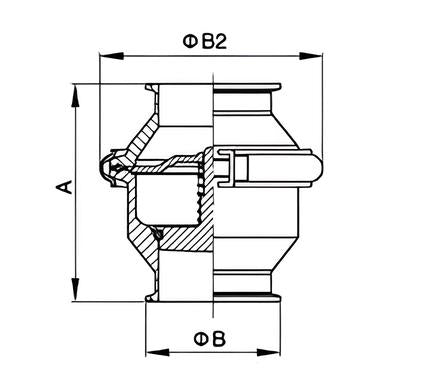

Clamped Spring Type Non Return Valve

Features of the Stainless Steel Sanitary Clamped  Spring Type Non Return Valve:

The valves can be installed in vertical pipeline only.
The min. pressure difference is 0.08bar to open the valve.

Flow direction is from the bottom to the top side only.

Asept, Non retention dead angle, easy to clean, easy to maintenance.

Operating temperature:-10 degree to 120 degree.

Valve disc is made from casting..

Valve body is made from forging.

Valve body type: clamped or nut type.

Gasket: EPDM, silicone.

All gaskets are FDA approved.

Max. Pressure: 10BAR.

Min. Pressure:0.2BAR.

Compact design, easy maintenance and high torque

Connection end: Weld, tri-clamped, male threading.

Standard: DIN, SMS, 3A.

Material: SS304, SS316L.

Inside surface finish: Ra0.4.

Size: DN20-DN100 ,  3/4"-4".

Application: Food, beverage, dairy, pharmacy, chemical or any food processing industries.
