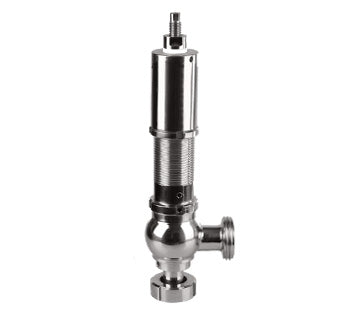

DIN Floating Ball Safety Valve

DIN Floating Ball Safety Valve

Article number:

Available for pre-order

Size

DN25
  • DN25
  • DN40
  • DN50
  • DN65
  • DN80

Material

AISI 304
  • AISI 304
  • AISI 316 L

Gaskets

EPDM
  • EPDM
  • Silicone
  • Teflon
Send a request
Description

The Sanitary DIN Floating Ball Type Safety Valve, made from SS304 or SS316L, comes in sizes ranging from 3/4” to 4” and is compatible with EPDM, silicone, or Teflon gaskets. It offers quick pressure adjustment, easy maintenance, and is suitable for industries such as food, beverage, dairy, and pharma. Compliant with 3A, SMS, ISO, DIN, BS, and JIS standards, it ensures efficient performance with an adjustable pressure range.

Size
Full description
DIN Floating Ball Safety Valve

Features and characteristics of the Sanitary DIN Floating Ball Type Safety Valve:

Gasket: EPDM, silicone, teflon ( FDA approved raw material).

Size range:  3/4”, 1”, 1 1/4”,1 1/2”, 2”, 3”, 4”.

Standard: 3A, SMS, ISO, DIN, BS, JIS.

Connection: clamp , weld,  Male, ect.

Material grade: SS304 or SS316L.

Our safety valves are widely used for food, beverage, dairy, biotech, pharmacy, gas and etc industries.

Simple structure.

Attractive appearance.

Quick pressure adjustment.

Convenient maintainance.

Adjustable pressure range.

The valves can not be installed in reversal direction.
