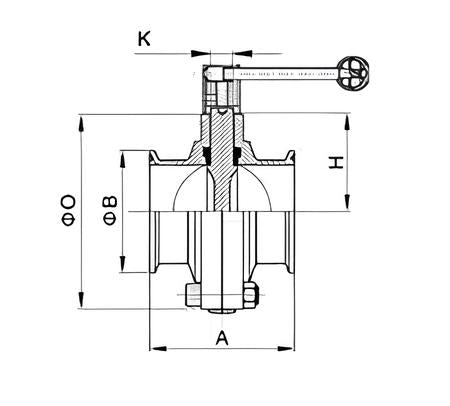

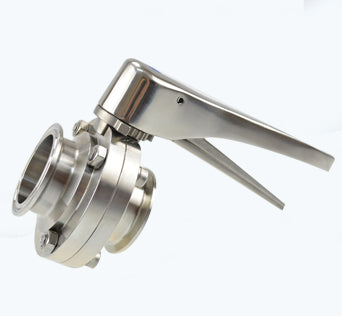

Manual Butterfly Valve with Gripper Handle

Manual Butterfly Valve with Gripper Handle

Article number: JN-BV 1016

Available for pre-order

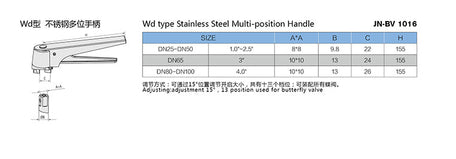

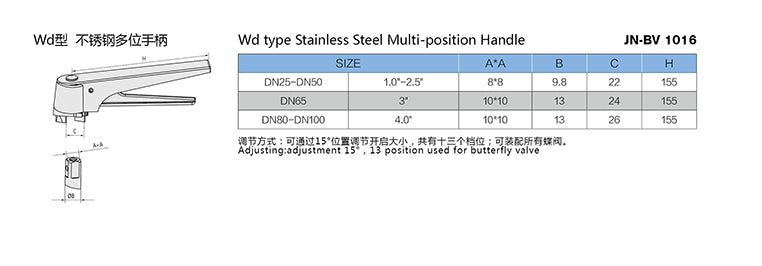

Size

DN25-DN50
  • DN25-DN50
  • DN65
  • DN80-DN100

Material

AISI 304
  • AISI 304
  • AISI 316 L

Gasket

EPDM
  • EPDM
  • Silicone
  • Viton
Send a request
Description

The Sanitary Gripper Handle Clamped Manual Butterfly Valve is designed for excellent acid, alkali, and high-temperature resistance with a temperature range of -10°C to 120°C. It features a forged body and disc, FDA-approved gaskets, and a compact design with high torque for easy maintenance. Commonly used in food, beverage, dairy, pharmaceutical, and chemical industries, it provides reliable performance and various connection options.

Full description

Features of the  Sanitary Gripper Handle Clamped  Manual Butterfly Valve:

Better acid proof, alkali proof and high temperature

Temperature: -10degree~~120 degree

More than thirty thousand safety test

Outside surface finish: Ra 1.2

Special gasket design,  fluid free of residue

Conpact design, easy maintenance and high torque

Body: forging body and forging disc

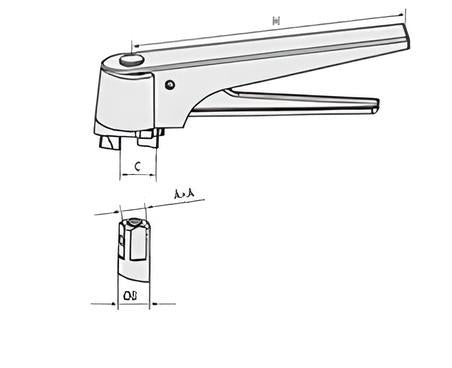

Manual handle: pull handle, plastic gripper handle or stainless steel gripper handle

Actuated type: both pneumatic butterfly valve and electric butterfly valves  are available

For pneumatic butterfly valves, we have single action type (air/ spring) and also double action type (air/air). And we can also equipped with control box or proximity device for single transfer.

Gasket: EPDM, silicone or Viton

All gaskets are FDA approved

Max. Pressure: 16BAR for welding connections; 10BAR for other connections

Min. Pressure:0.2BAR

Compact design, easy maintenance and high torque

The butterfly valve body and disk are full CNC machined, sanitary polished to meet food industry.

Connection end: Weld, tri-clamped, union, flange,male threading, female threading

Standard: DIN, SMS, ISO, 3A, IDF

Material: SS304, SS316L

Inside surface finish: Ra0.4

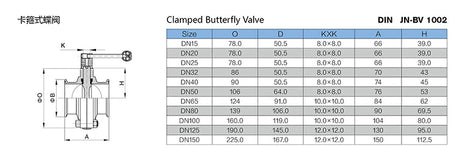

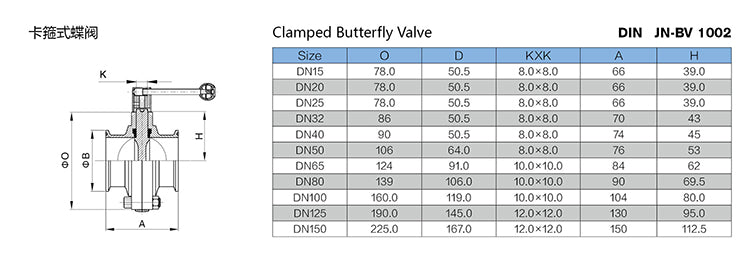

Size: DN20-DN300 ,  3/4"-10"

Application: Food, beverage, dairy, pharmacy, chemical or any food processing industries.
