High-Performance Check Valve

High-Performance Check Valve

Article number:

Available for pre-order

Size

DN20
  • DN20
  • DN25
  • DN40
  • DN50

Material

AISI 304
  • AISI 304
  • AISI 316 L
Send a request
Description

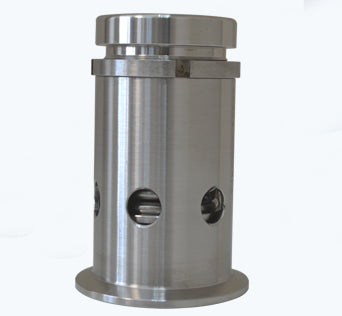

The Sanitary High-Performance Spring Type Check Valve ensures system pressure is maintained, opening to release pressure when it exceeds the set limit. It features a simple structure, quick pressure adjustment, and is available in sizes 1”-2” (DN25-DN50), with materials SS304 or SS316L. Ideal for food, beverage, dairy, pharmaceutical, and chemical industries, it offers adjustable pressure ranges and various connection types.

Full description

Features and characteristics of the Sanitary High Performance Spring Type Check Valve:

The safety valve is used to used to keep the set pressure in the system. When the system pressure is higher than set pressure, valve open to reduce the pressure.

Before the valve is dispatched, we have set the pressure to given pressure. The valve is closed.
If needed, we can install a pressure gauge before the inlet of safety valve.

Simple structure.

Attractive appearance.

Quick pressure adjustment.

Convenient maintainance.

Adjustable pressure range.

The valves can not be installed in reversal direction.

Models: Ball type, line type.

Max. Pressure: 10bar.

Min. Pressure: 0Bar.

Adjusting pressure: 0.5bar/unit.

Connection end: welded,clamped , threaded.

Size: 1”-2”, DN25-DN50.

Material: SS304, SS316L.

Surface finish: Sand blasting type, or mirror type.

Application: Food, beverage, dairy, pharmacy, chemical or any food processing industries.
