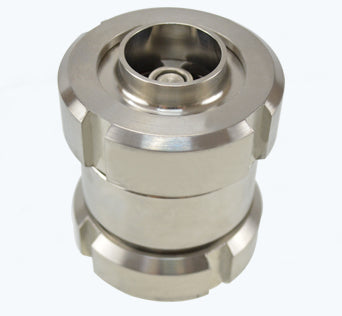

High-Performance Non-Return Valve

High-Performance Non-Return Valve

Article number:

Available for pre-order

Size

19
  • 19
  • 25
  • 32
  • 38
  • 51
  • 63
  • 76
  • 89
  • 102

Material

AISI 304
  • AISI 304
  • AISI 316 L

Gaskets

EPDM
  • EPDM
  • Silicone
Send a request
Description

The Sanitary High Performance Union Non-Return Valve is designed for vertical pipelines with a minimum pressure difference of 0.08 bar to open. Made from SS304 or SS316L, it features FDA-approved EPDM or silicone gaskets and operates in temperatures from -10°C to 120°C. This valve is ideal for food, beverage, dairy, pharmaceutical, and chemical industries, with a compact design for easy maintenance and cleaning.

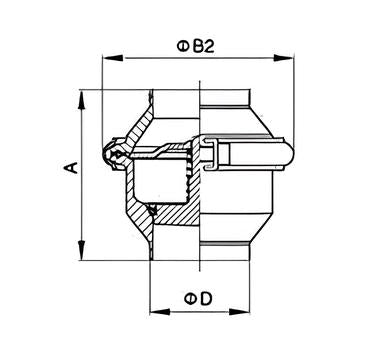

Size
Full description
High-Performance Non-Return Valve

Features of the Sanitary High Performance Union Non Return Valve:

The valves can be installed in vertical pipeline only.

The min. pressure difference is 0.08bar to open the valve.

Flow direction is from the bottom to the top side only.

Asept, Non retention dead angle, easy to clean, easy to maintenance.

Operating temperature:-10 degree to 120 degree.

Valve disc is made from casting.

Valve body is made from forging.

Valve body type: clamped or nut type.

Gasket: EPDM, silicone.

All gaskets are FDA approved.

Max. Pressure: 10BAR.

Min. Pressure: 0.2BAR

Compact design, easy maintenance and high torqu.

Connection end: Weld, tri-clamped, male threading.

Standard: DIN, SMS, 3A.

Material: SS304, SS316L.

Inside surface finish: Ra0.4.

Size: DN20-DN100 ,  3/4"-4"

Application: Food, beverage, dairy, pharmacy, chemical or any food processing industries.
