High Quality Manual Mini Sample Valve

High Quality Manual Mini Sample Valve

Article number:

Available for pre-order

Material

AISI 304
  • AISI 304
  • AISI 316 L

Gaskets

EPDM
  • EPDM
  • Silicone
Send a request
Description

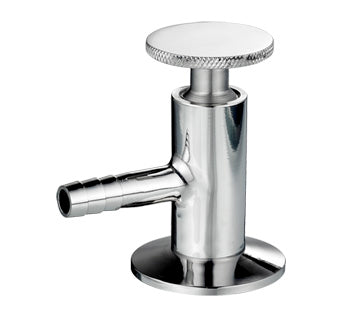

The Stainless Steel Sanitary High-Quality Manual Mini Sample Valve (SS304 or SS316L) offers a long service life and is easy to sterilize with alcohol or steam. It allows sampling during production without stopping the process and ensures no second-time contamination. The valve has a maximum pressure of 1000 kPa (closed) and 500 kPa for silicone (open), with a maximum temperature of 130°C.

Full description

Features of the Stainless Steel Sanitary High Quality Manual Mini Sample Valve:

The valve body: SS304 or SS316L.

Long service life.

Easy to sterilize.

Sampling work can be done any time during production, no need to stop production.

Sterilization by alcohol or steam.

Material sealed by diaphragm directly.

No second -time contamination, bulk or mini sample allowed.

Inside surface: Ra 0.5um

Outside surface: Ra 0.8um

Valve head: SS304.

Gasket: Silicone, EPDM.

Max. pressure: 1000kpa ( valve close)
Max. pressure: 500Kpa for silicone  ( valve open)
                        1000Kpa for stainless steel part  ( valve open)

Max. temperature: 130 degree.
