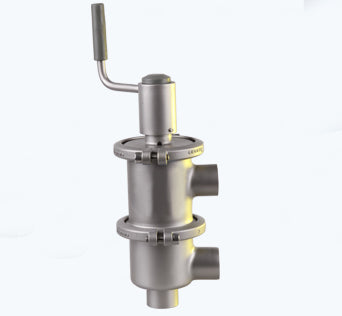

Manual L20 Flow Diverter Valve

Manual L20 Flow Diverter Valve

Article number:

Available for pre-order

Size

1"
  • 1"
  • 1 1/4"
  • 1 1/2"
  • 2"
  • 2 1/2"
  • 3
  • 3 1/2"

Material

AISI 304
  • AISI 304
  • AISI 316 L

Gaskets

EPDM
  • EPDM
  • Silicone
Send a request
Description

The Sanitary Manual L20 Type Flow Diversion Valve features an open support bracket for easy shaft seal inspection and a spherical valve body for ideal fluidity. It offers easy cleaning, maintenance, and operates within a temperature range of -10°C to 120°C, with high-precision casting and pressure of up to 10 bar. Suitable for various industries such as food, beverage, dairy, and pharmaceuticals, it is available in multiple sizes and materials like SUS304 and SUS316L.

Size
Full description
Manual L20 Flow Diverter Valve

Features of the Sanitary Manual L20 Type Flow Diversion Valve:

Open support bracket which separates the actuator and valve body, the design makes shaft seal checking easily.

Spherical valve body assures ideal fluidity .

Dealing material softly.

Ultra-thick spherical design avoid the deshape caused from heating stress .

All the contacting parts can be cleaned together or alone.

Temperature: -10 degree to 120 degree.

High precise casting body.

Pressure: 10bar.

Working mode: Manual, pneumatic type.

Gasket: EPDM, silicone.

Easy cleaning , easy maintenance.

Valve body type: 20, 30, 21, 22, 31, 32 type.

Connection mode: Clamped, welded, etc.

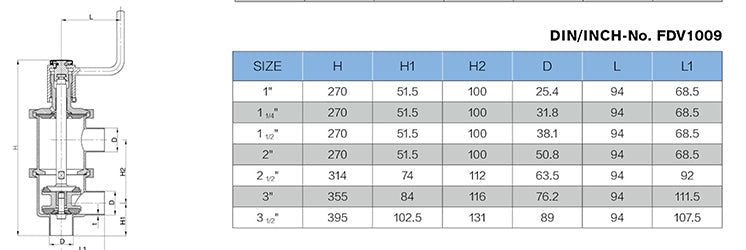

Specification: 1"-4", DN25-DN100.

Material quality: SUS304, SUS316L.

Surface: Mirror polishing, or sand blasting type

inner surface: 0.4Ra
Outer surface : 0.8Ra

Application: Food, beverage, dairy, pharmacy, chemical or any food processing industries.
