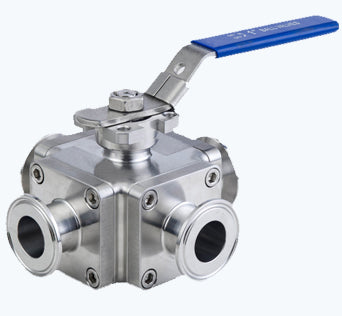

Features and characteristics of the Sanitary Manual Multi-Port Three Way:
Flexible combination of L type and T type design
Inlet and Outlet can be exchangable
No dead angle , Non retention
All line design,in order to reduce pipeline rapids and pressure drop
High precise forging body
Full bore type and non dead angle design
Pressure: 1000PSI
Temperature: -60~ 180 degree
Working mode: Manual type, electrical type, pneumatic type
Gaskets: PTFE EPDM
Easy cleaning, easy maintenance,
Compact design for areas with tight space restrictions
lower pressure drop
less turbulent flow
Balanced encapsulated construction minimizes cold flow of seats
Precision stainless steel balls reduce torque and friction losses while extending seat life
Blow-out proof stem
Stainless steel solid ball
Live-loaded stem packing
Lockable handle can prevent accidental actuation when used
1/2" - 2" rated to 1,000 PSI
2 1/2" - 4" rated to 800 PSI
Connection end: Weld, tri-clamped, union, flange,male threading, female threading
Standard: DIN, SMS, ISO, 3A, IDF
Material: SS304, SS316L
Inside surface finish: Ra0.4
Outside surface finish: Ra 0.6
Size: DN15-DN100 , 1/2”-4”
Application: Food, beverage, dairy, pharmacy, chemical or any food processing
