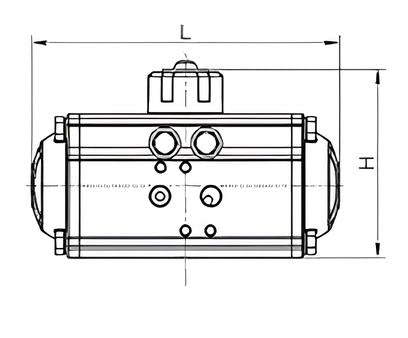

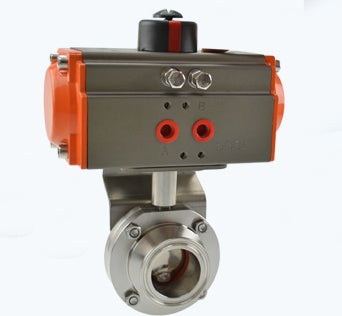

The pneumatic butterfly valve is controlled with aluminum piston by the compressed air. The piston controls the valve disc to work with 90degree so the valve open or close. The pneumatic actuator can be dis-assembly and maintenance. The torque of the pneumatic actuator is big , it is easy to install and operate.
Features Sanitary Pneumatic Flow Control Valve:
Better acid proof, alkali proof and high temperature
Temperature: -10degree~~120 degree
More than thirty thousand safety test
Outside surface finish: Ra 1.2
Special gasket design, fluid free of residue
Fireproof,long life span,repairable pneumatic drives, large torgue
Valve disc is made from forging.
Valve body is made from forging.
Pneumatic actuator: Stainless steel type (Single action type air /spring), Aluminium type (Double action type air/air)
Three type of actuator: Normally open(NO), normally closed(NC), Air/Air(A/A)
Gasket: EPDM, silicone or Viton
All gaskets are FDA approved
Max. Pressure: 16BAR for welding connections; 10BAR for other connections
Min. Pressure:0.2BAR
Air hose connection: R1/8”
Compact design, easy maintenance and high torque
Connection end: Weld, tri-clamped, union, flange,male threading, female threading
Standard: DIN, SMS, ISO, 3A, IDF
Material: SS304, SS316L
Inside surface finish: Ra0.4
Size: DN20-DN300 , 3/4"-10"
Application: Food, beverage, dairy, pharmacy, chemical or any food processing industries.
