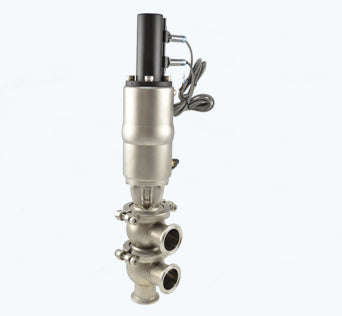

Features of the Sanitary Quick Clean Pneumatic Divert Valve With C-TOP:
Open support bracket which separates the actuator and valve body, the design makes shaft seal checking easily.
Spherical valve body assures ideal fluidity .
Dealing material softly.
Ultra-thick spherical design avoid the deshape caused from heating stress.
All the contacting parts can be cleaned together or alone.
Temperature: -10 degree to 120 degree.
High precise casting body.
Pressure: 10bar.
Working mode: Manual, pneumatic type.
Gasket: EPDM, silicone.
Easy cleaning , easy maintenance.
Valve body type: 20, 30, 21, 22, 31, 32 type.
Connection mode: Clamped, welded, etc.

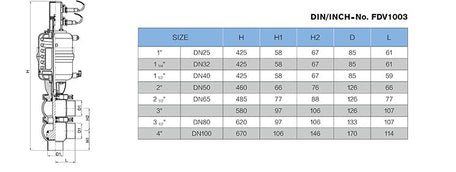

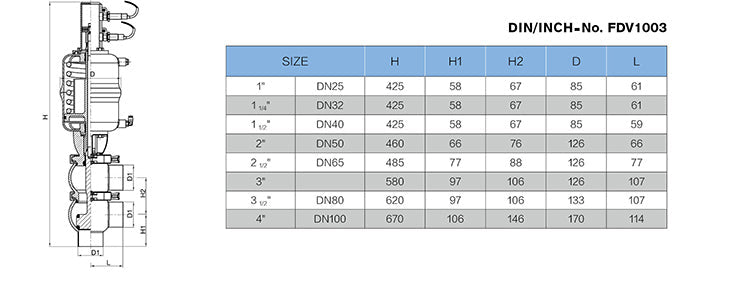

Specification: 1"-4", DN25-DN100.
Material quality: SUS304, SUS316L.
Surface: Mirror polishing, or sand blasting type
inner surface: 0.4Ra
Outer surface : 0.8Ra
Application: Food, beverage, dairy, pharmacy, chemical or any food processing industries.
